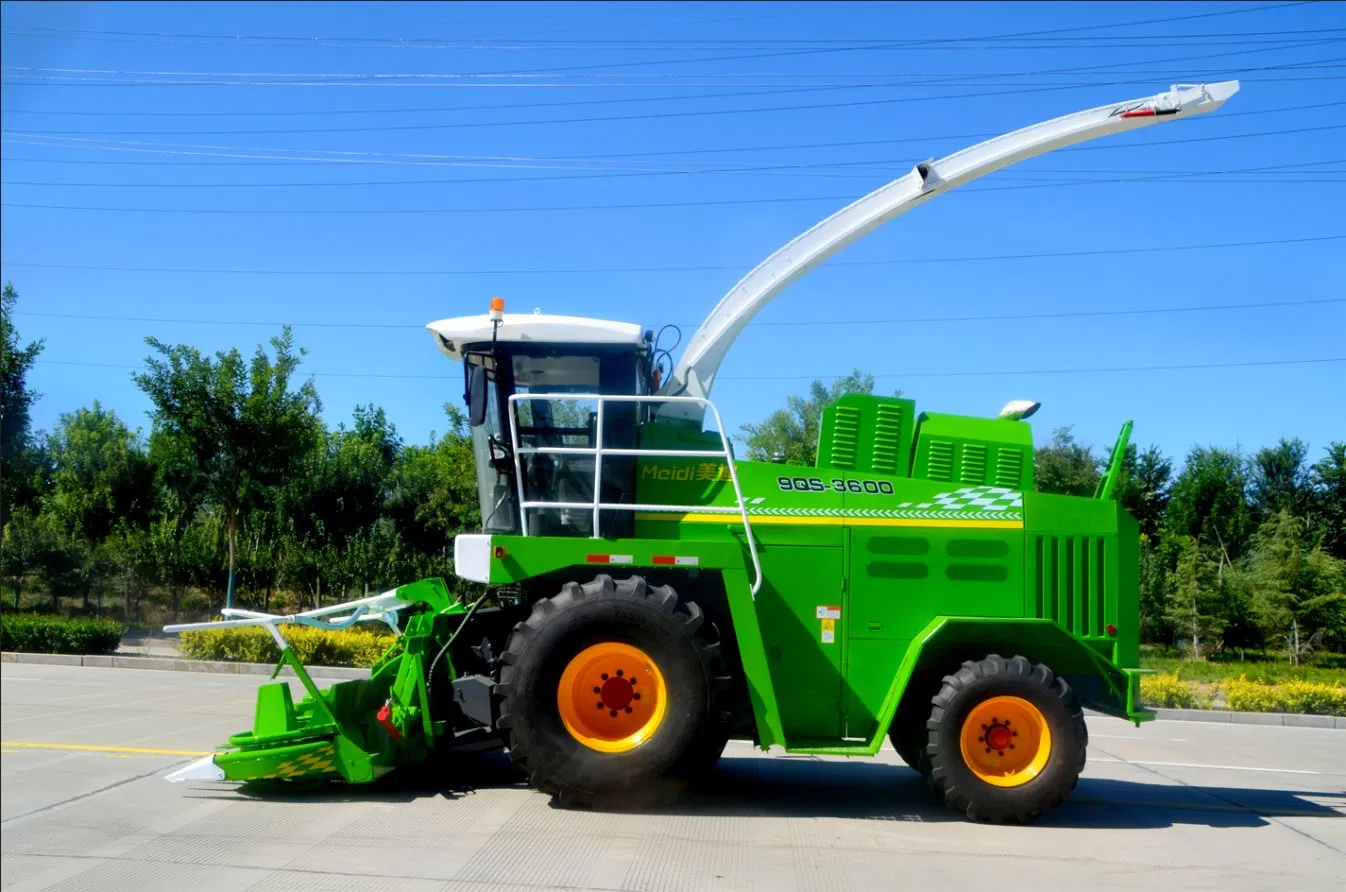

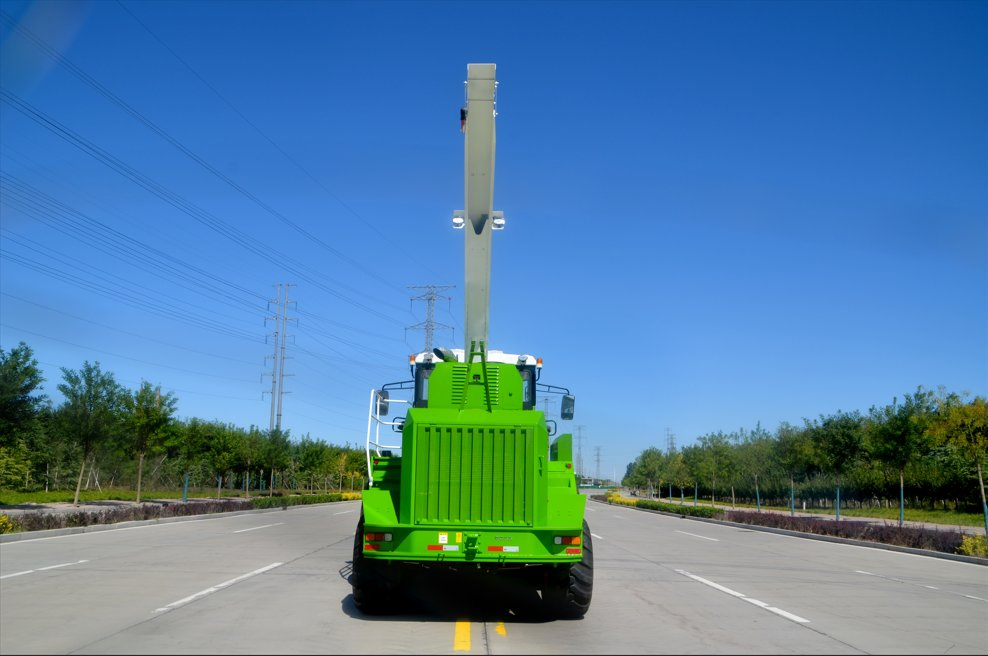

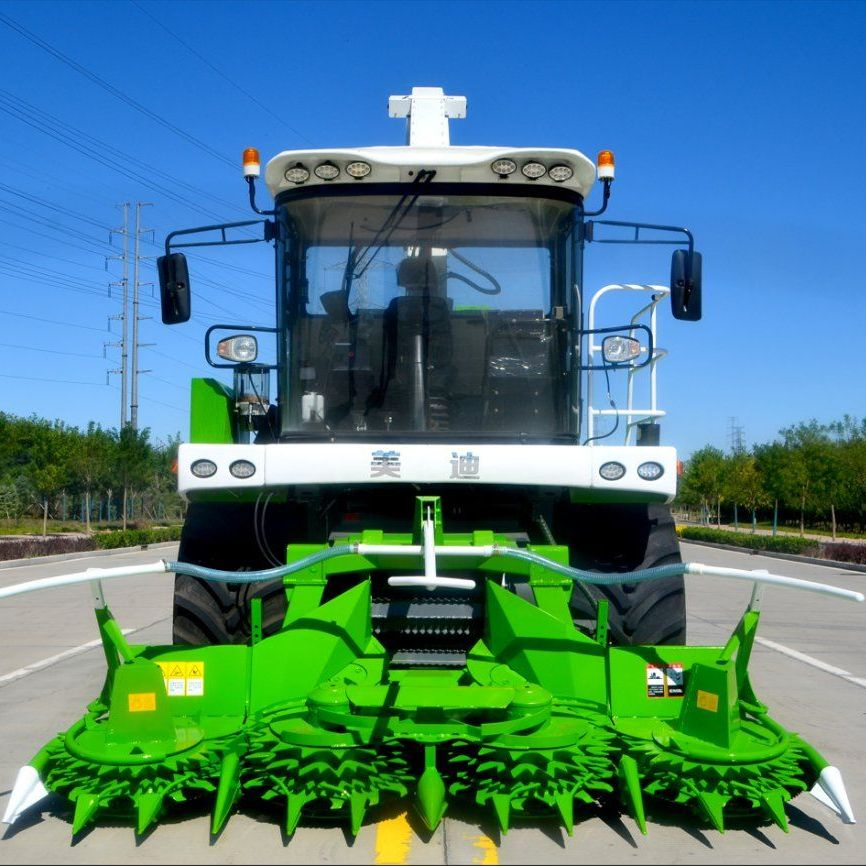

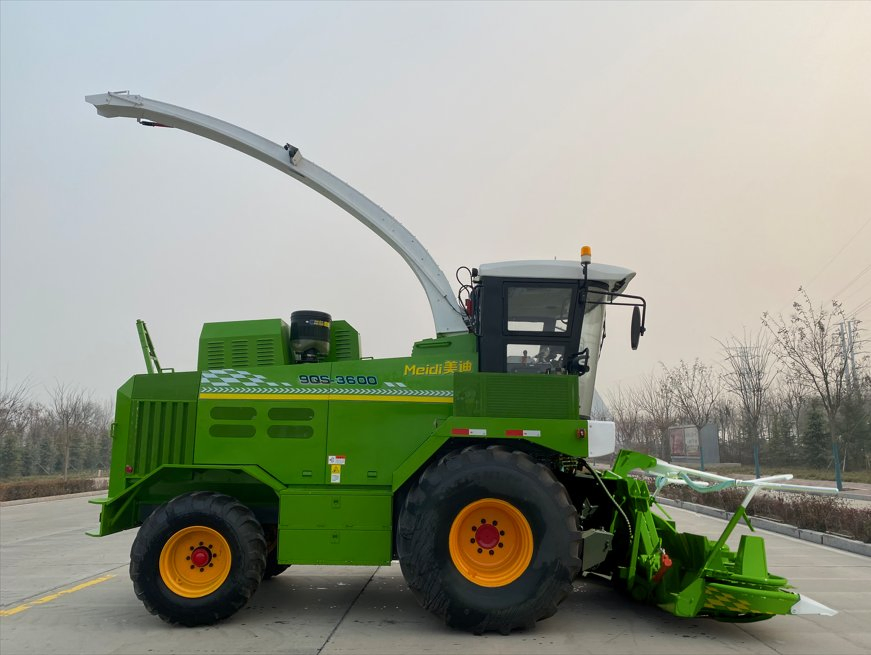

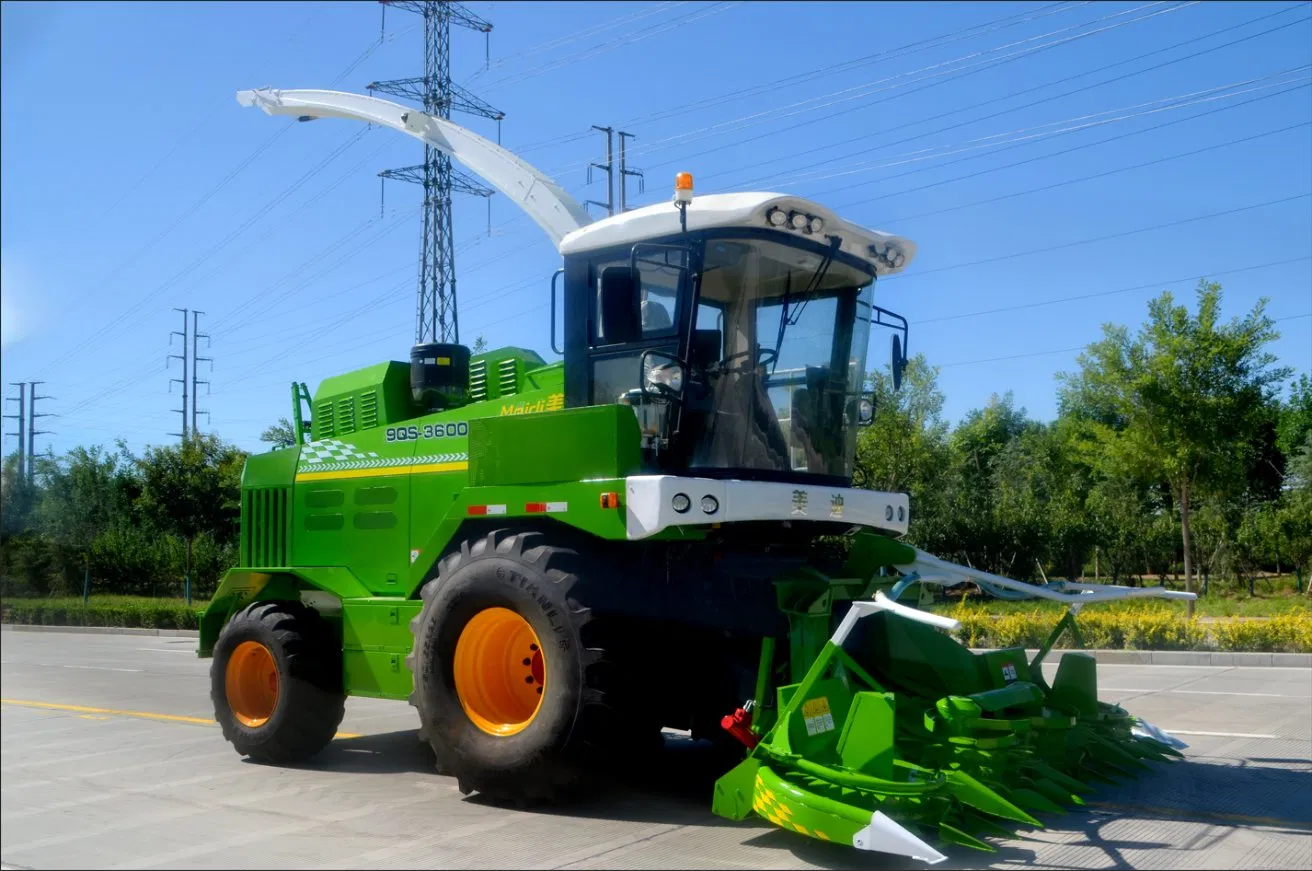

The 9QS-3600 self-propelled forage harvester adopts a 3.6-meter-foldable harvesting header, which is composed of four trays, can harvest without row alignment, and has smooth cutting and conveying. The chopping mechanism adopts tungsten carbide-sprayed blades, which are sharp and durable, and the automatic blade sharpening is simple and easy to use.
The kernel cracking roller adopts special materials and heat treatment processes, has a long service life, and the crushing effect can reach more than 95%. It adopts a well-known 400 hp engine, which has strong power and low fuel consumption. The whole vehicle adopts hydrostatic continuously variable transmission for travel, which is smooth and flexible in field operations, eliminating the trouble of frequent gear shifting.

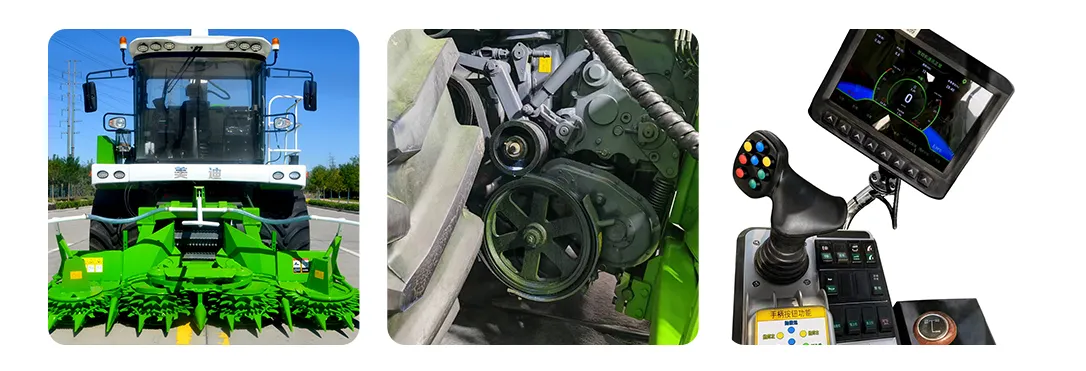

High-grade radial tires increase the stability and passability. The spacious cab is equipped with shock-absorbing seats, multi-functional control handles and an embedded MCU controller, which makes the operation more convenient and free, avoids the trouble caused by misoperation, and improves work efficiency.
| Item | Unit | 9QS - 3600T | 9QS - 3600 |
|---|---|---|---|
| Working state dimensions | mm | 8010×3710×5870 | 7700×3710×5550 |
| Transportation dimensions | mm | 8300×3200×3660 | 7600×3100×3500 |
| Header width | mm | 3800 | 3800 |
| Machine mass | Kg | 12970 | 11080 |
| Rated power | kW/ps | 353 / 480 | 294 / 400 |
| Cutting width | mm | 3520 | 3520 |
| Operating speed | km/h | 2-10 | 2-10 |
| Productivity | t/h | ≥60t | 50 - 60t/h |

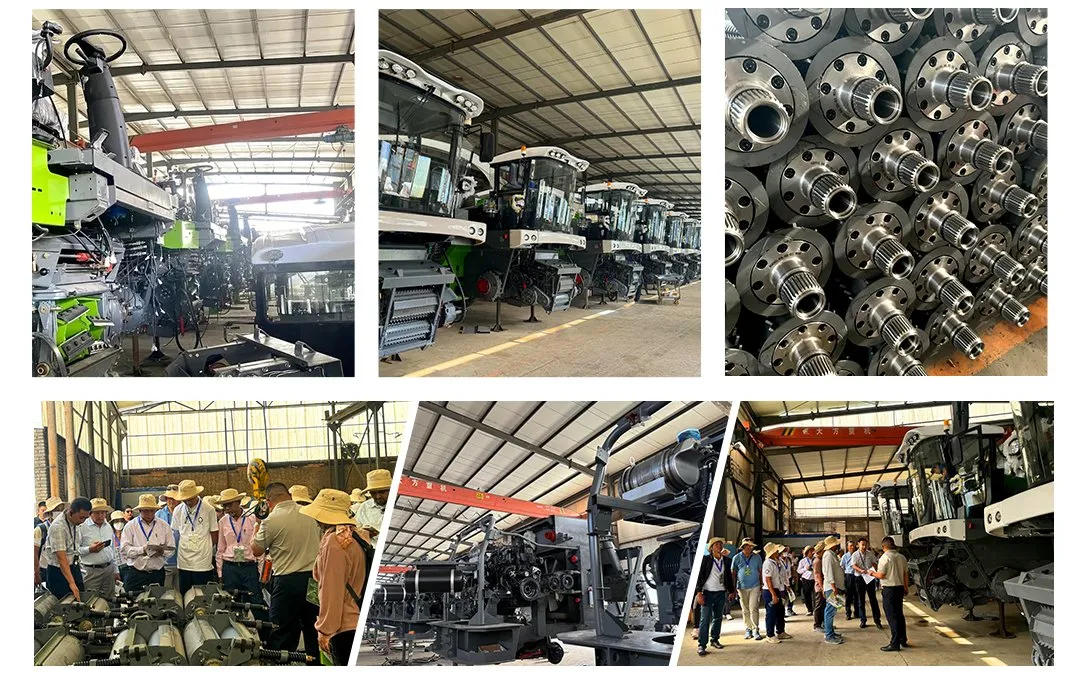

Established in 1992, the enterprise has been dedicated to mechanical production and manufacturing. Today, it has evolved into a professional manufacturer of forage harvesters, integrating technology R&D, production, sales, and service.
Upholding the philosophy of "striving for perfection and winning through quality", we are committed to producing reliable and durable agricultural machinery with a rigorous and practical approach. Our self-propelled forage harvesters meet the demands of various regions, focusing on innovations in hydrostatic drive systems, corn kernel crushers, and electro-hydraulic control systems.
