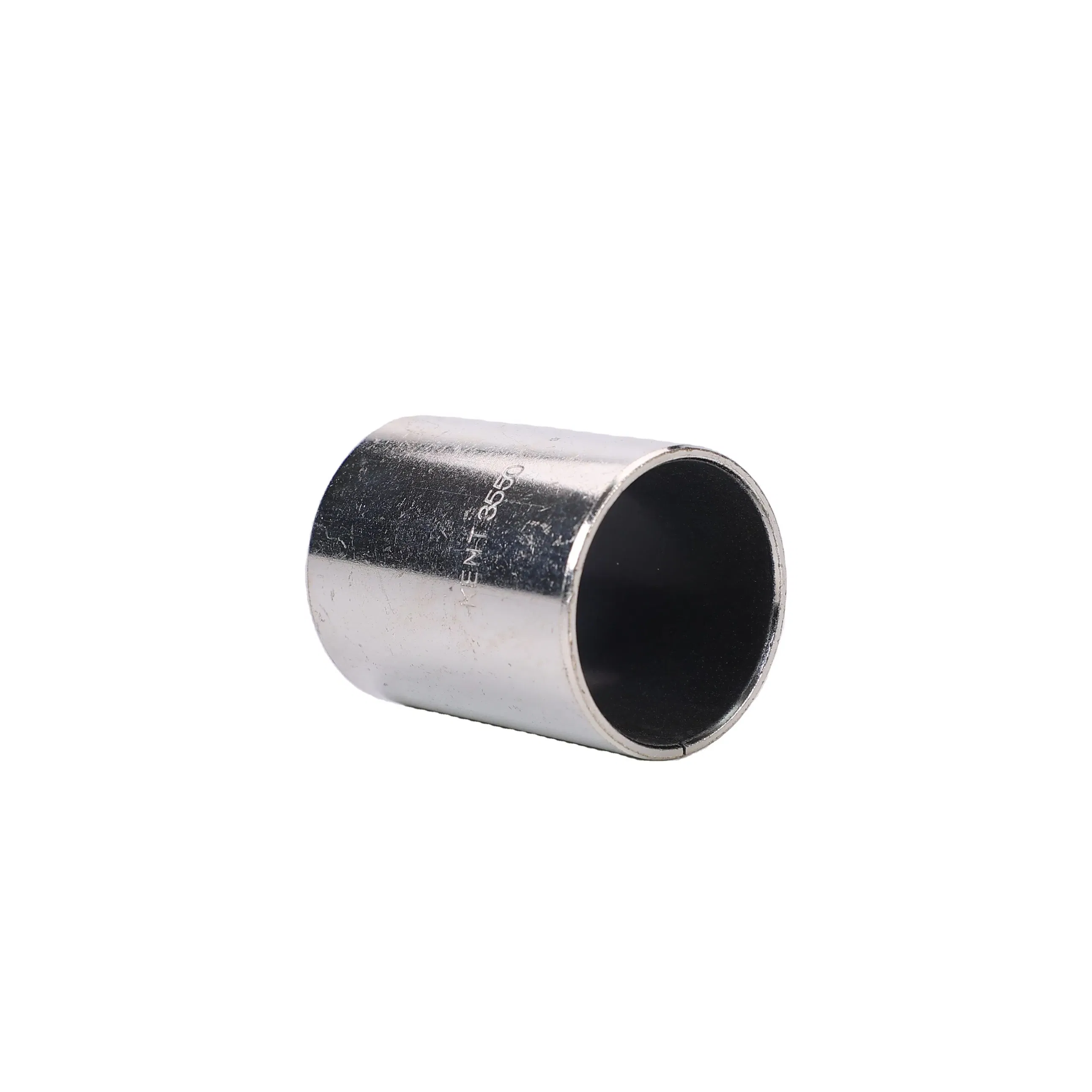

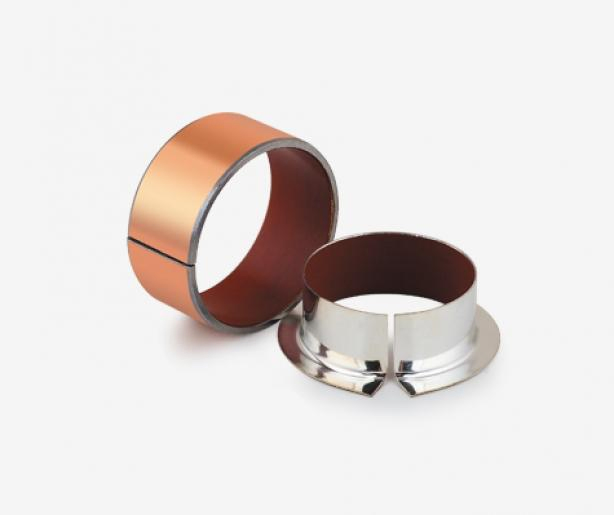

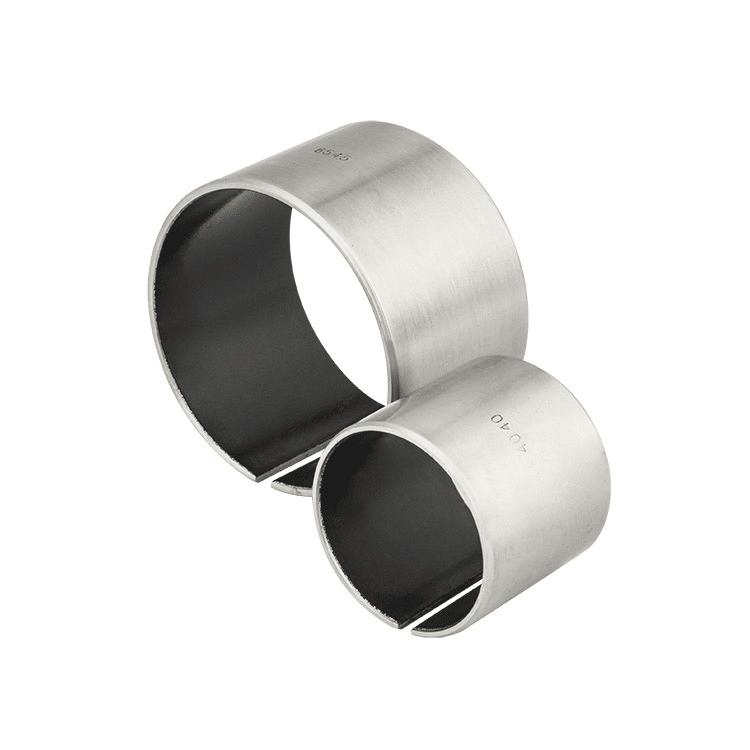

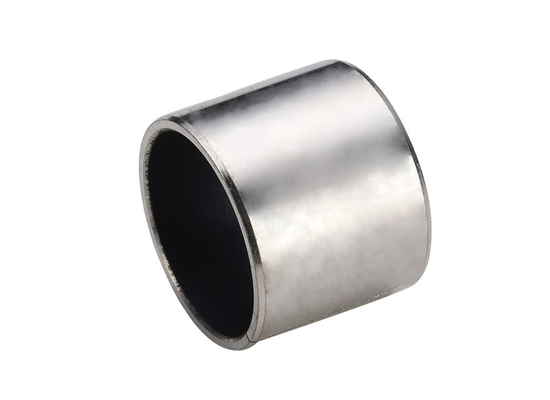

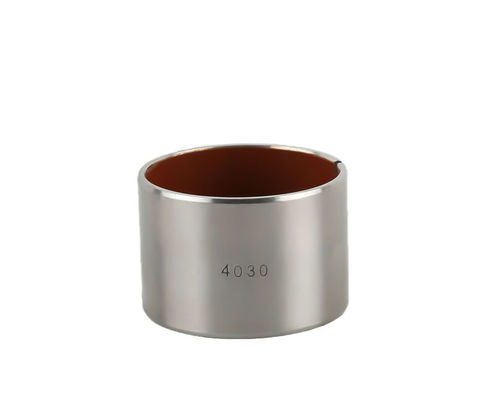

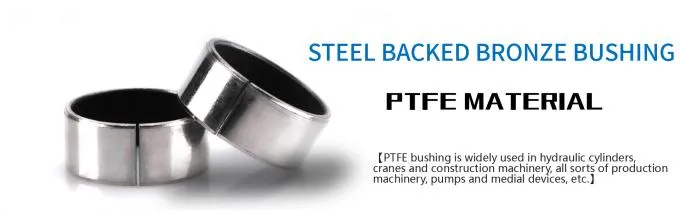

The PTFE composite bushings were developed for high load oil lubricated hydraulic applications. Designed primarily for use with lubricated lubricants, it exhibits excellent wear resistance and has a low coefficient of static and dynamic friction. It is particularly suitable for automotive suspension struts, shock absorber guide bushes, hydraulic cylinders, gear pumps, and motors.
| Technical Data | Value / Description |
|---|---|
| Material | Stainless Steel / Sintered Bronze / PTFE Sliding Layer |
| Sliding layer (thickness) | 0.01-0.03mm |
| Coefficient of friction | 0.03-0.20µ |
| Thermal conductivity | 40W/m·K |
| Temperature range | -200°C / +280°C |
| Max. load static | Ca 250N/mm² |
| Max. load dynamic | 80N/mm² |
| Max. sliding speed | 2.5m/s (no lube) - 5m/s (with lube) |
| Recommended shaft hardness | >165HB |
| Shaft surface roughness (Ra) | 0.4 |
