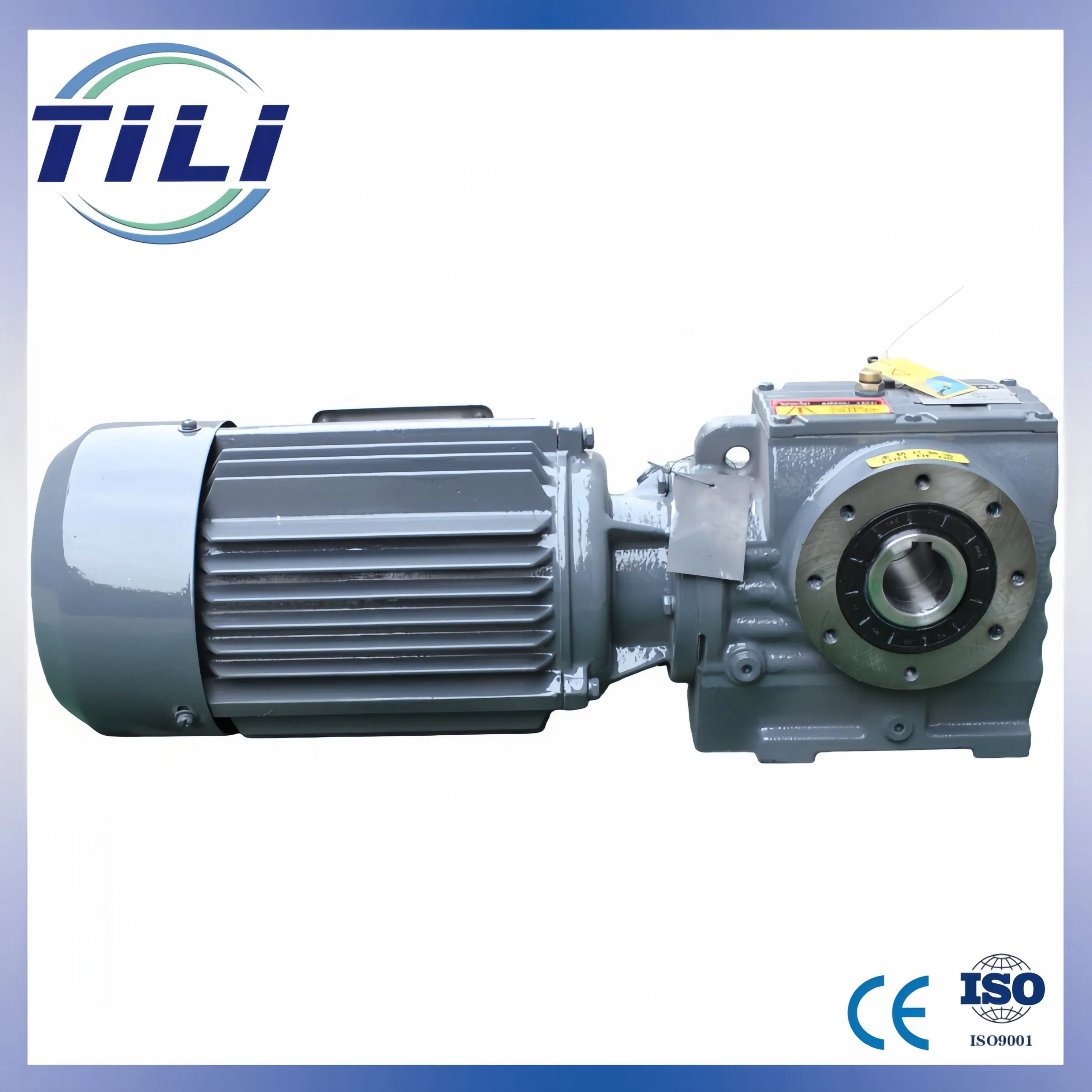

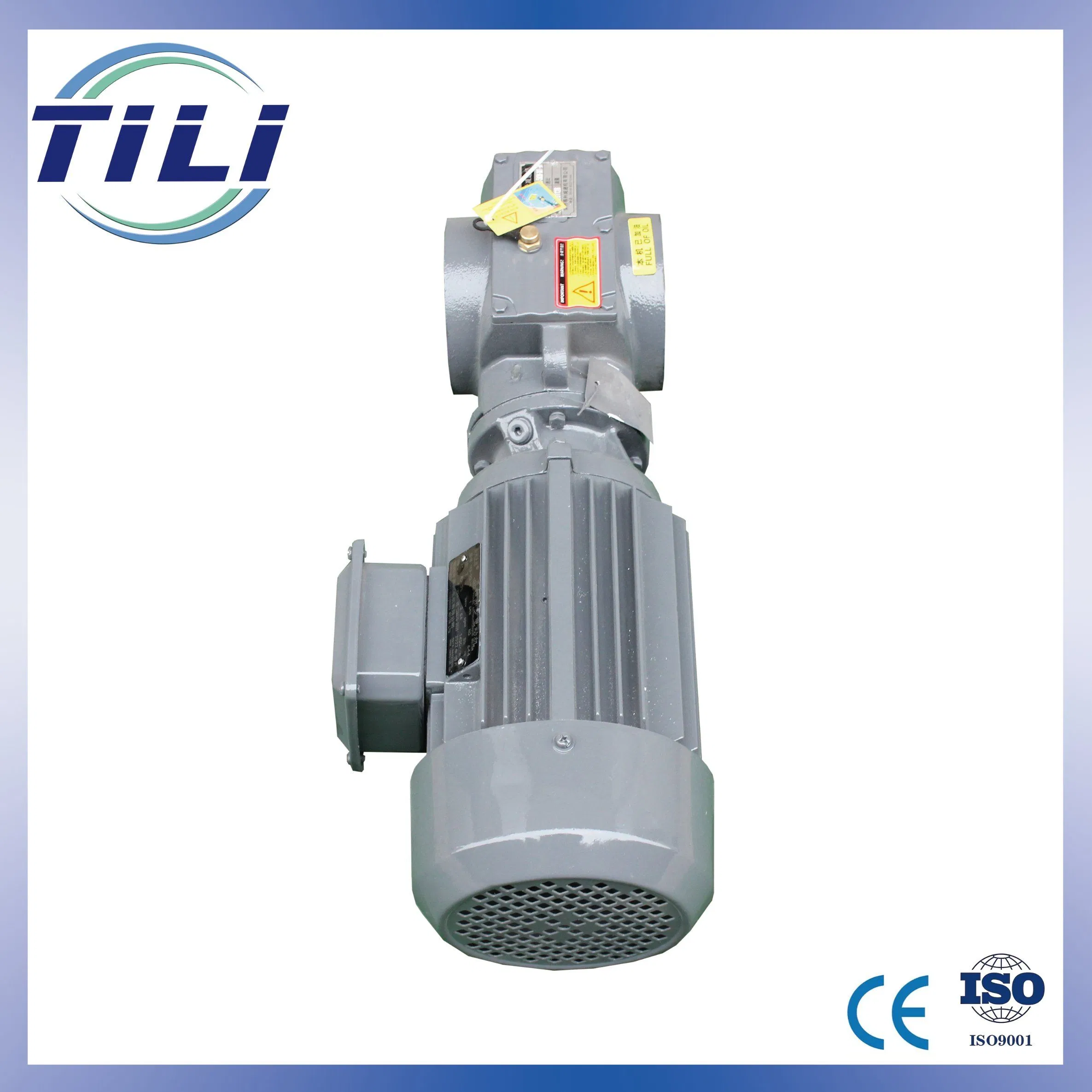

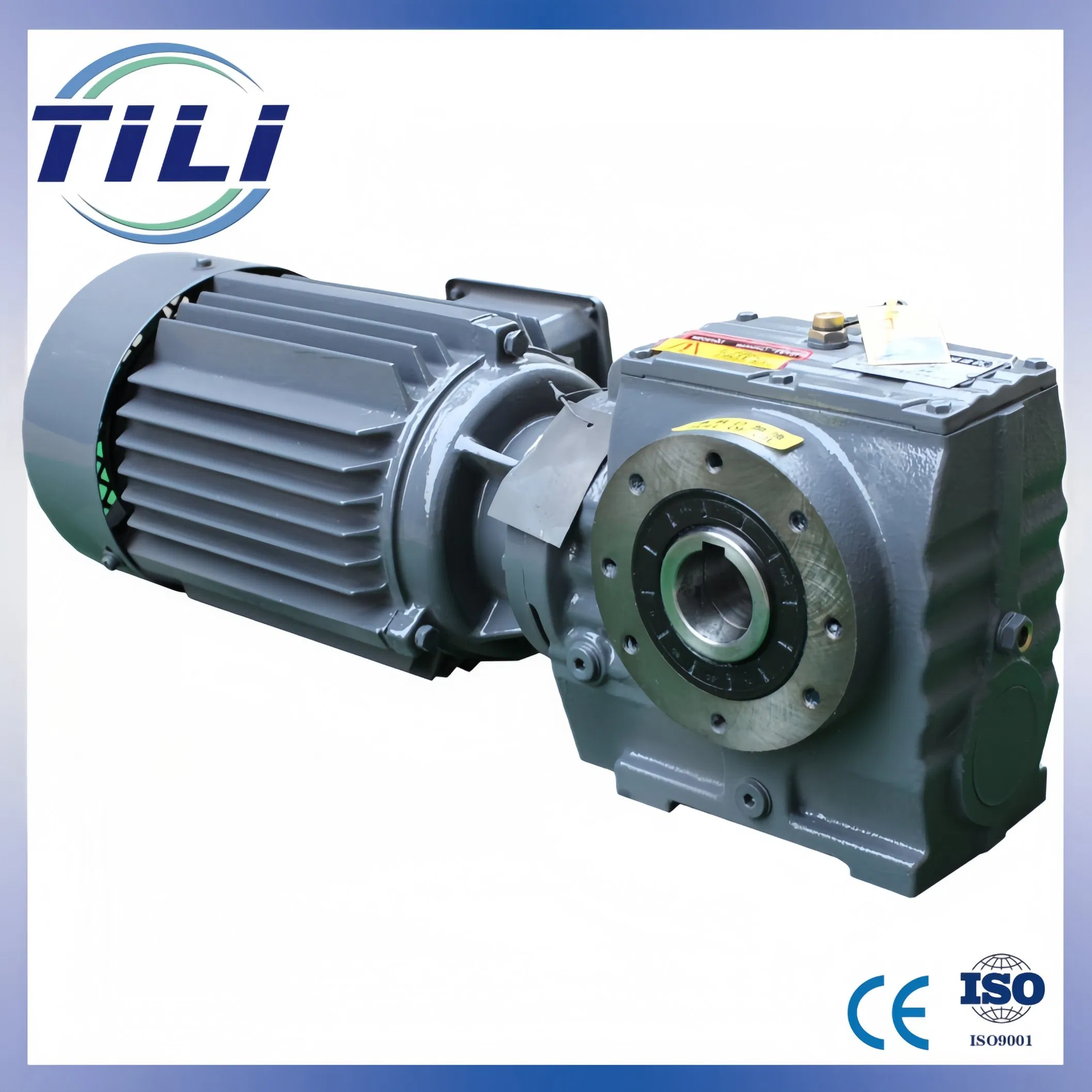

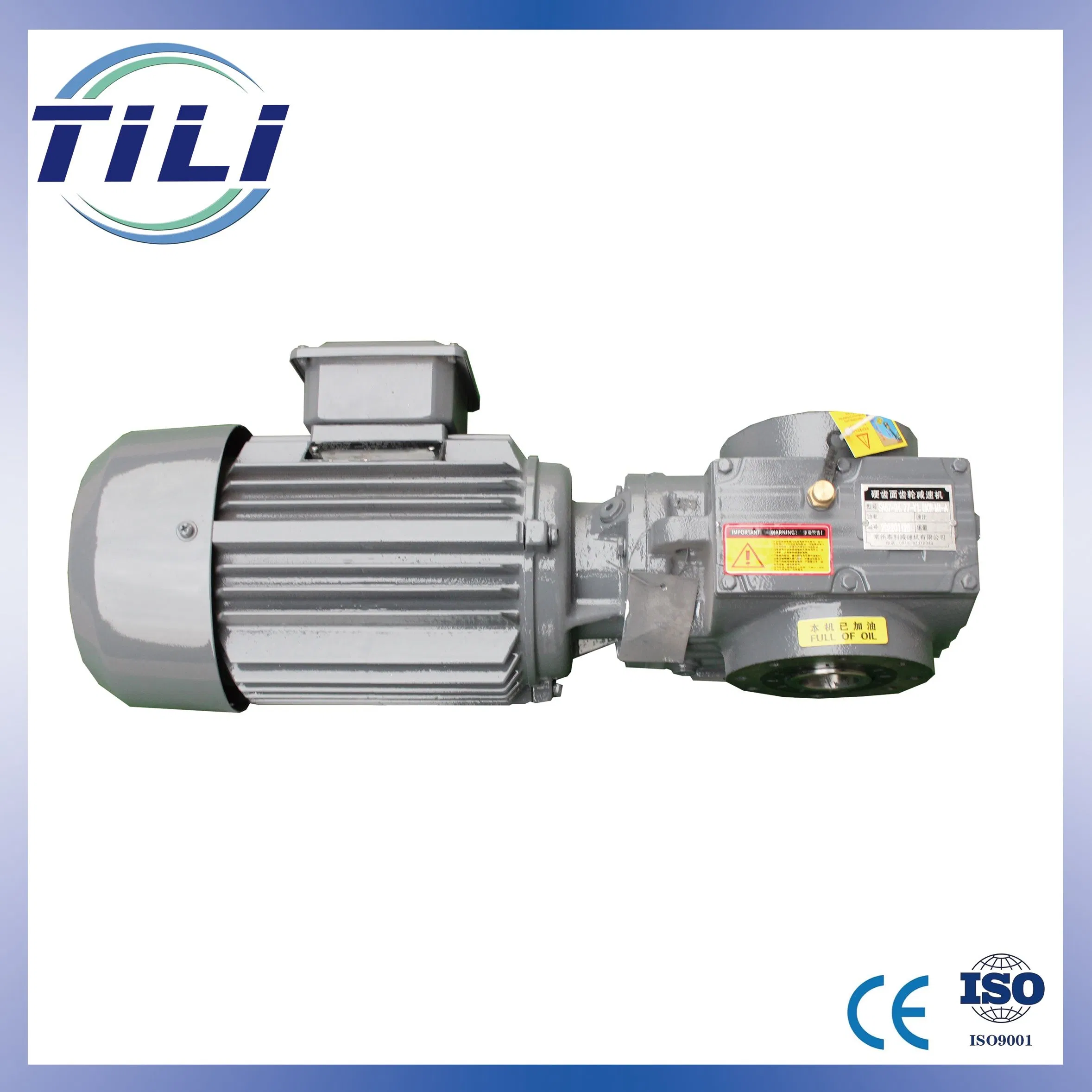

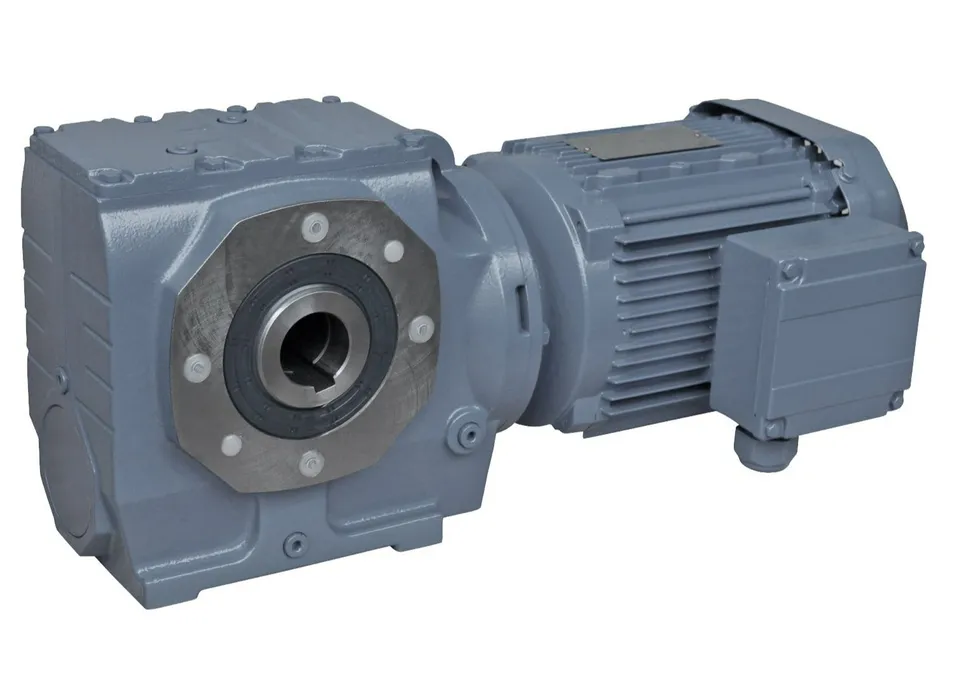

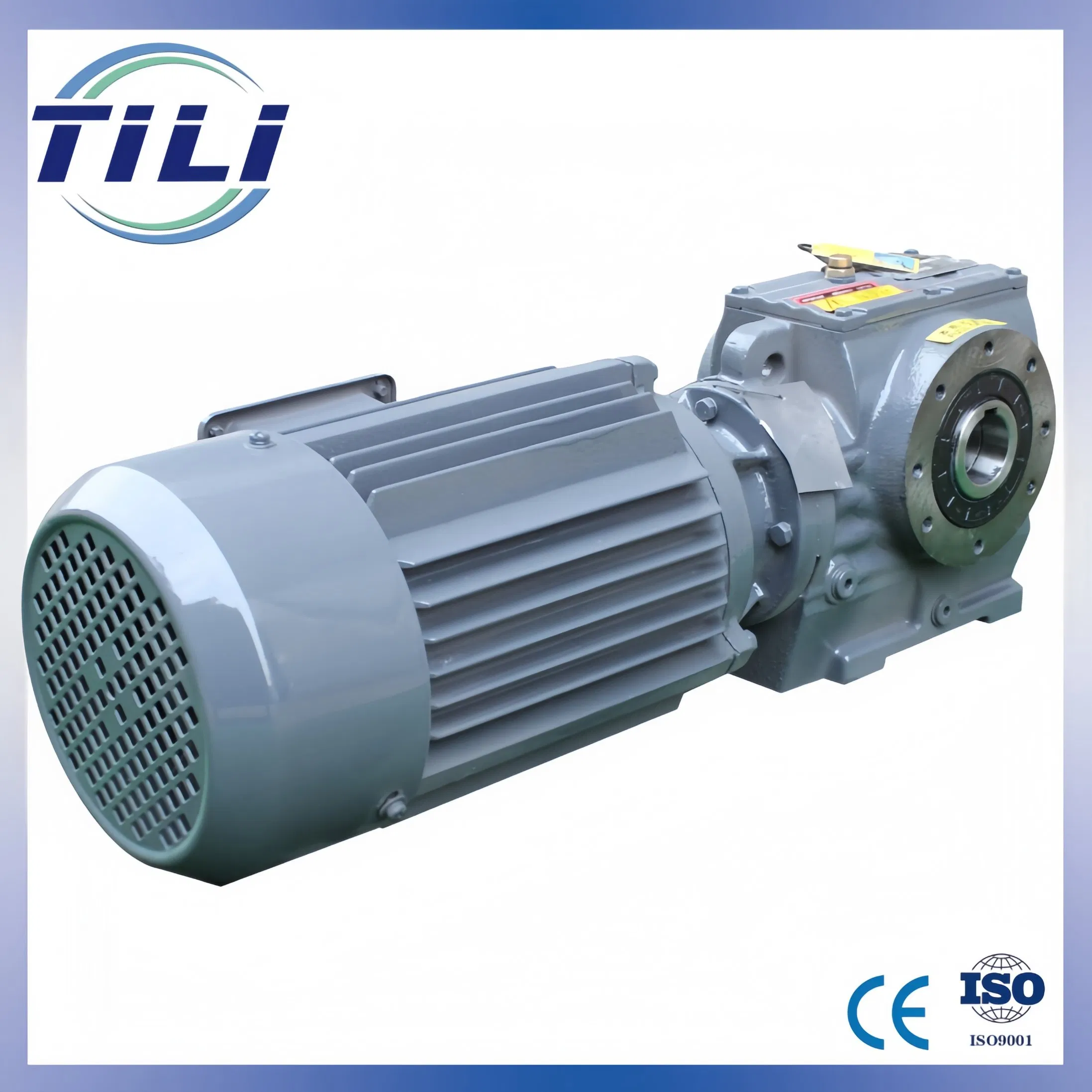

The SA Series Helical-Worm Gearbox is built on a right-angle reduction framework optimized to international standards. It delivers core advantages: high precision, high transmission efficiency, wide-ranging gear ratios, large torque, and low noise operation.
Equipped with a flexible flange and hollow shaft, it ensures easy operation and maintenance. Integrated with a variable frequency braking motor, it enhances stability and secures loads effectively.
| Power Range | 0.12kw - 30kw |
| Output Torque | 1.4N·m ~ 23200N·m |
| Output Speed | 0.06 ~ 374r/min | 95% - 96% |
| Noise Level | Below 65dB |
| Gear Material | 20CrMnTi alloy steel |
| Surface Hardness | HRC58°-62° |
| Machining Precision | 5 Grade |

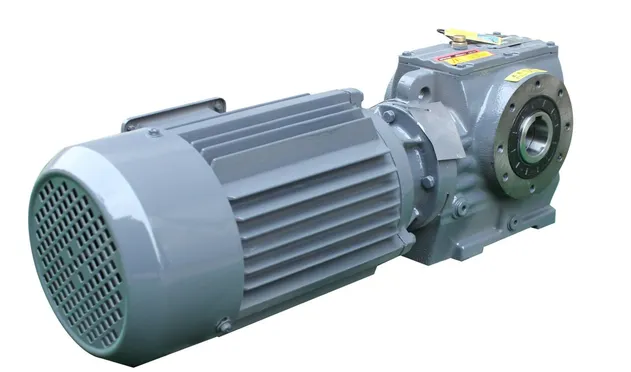

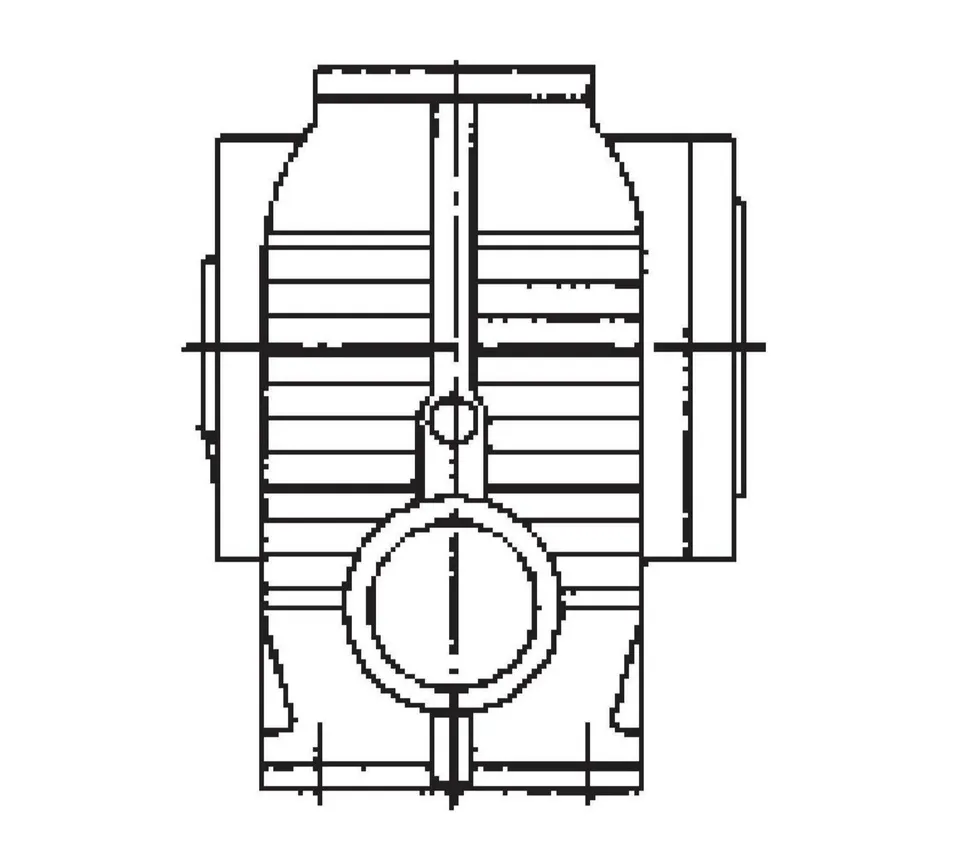

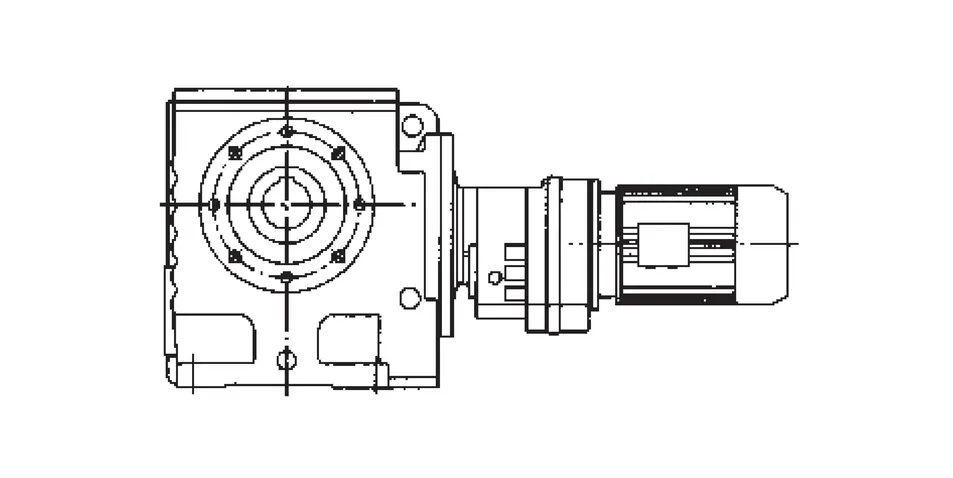

Right elevation

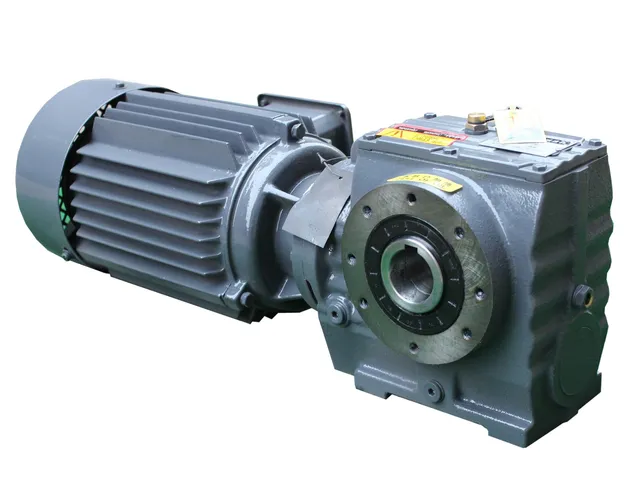

Left elevation

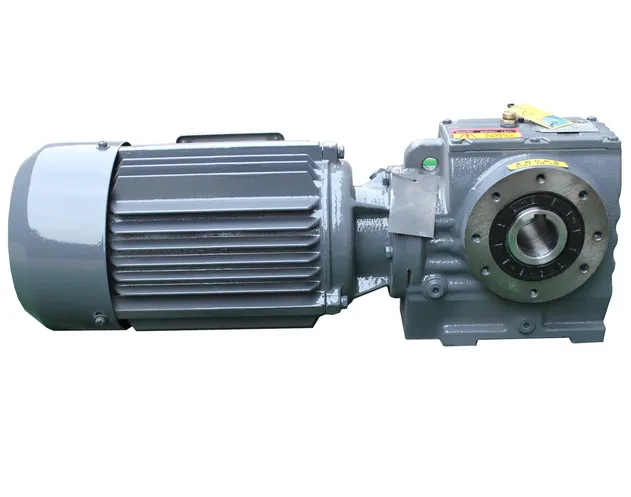

Front elevation
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

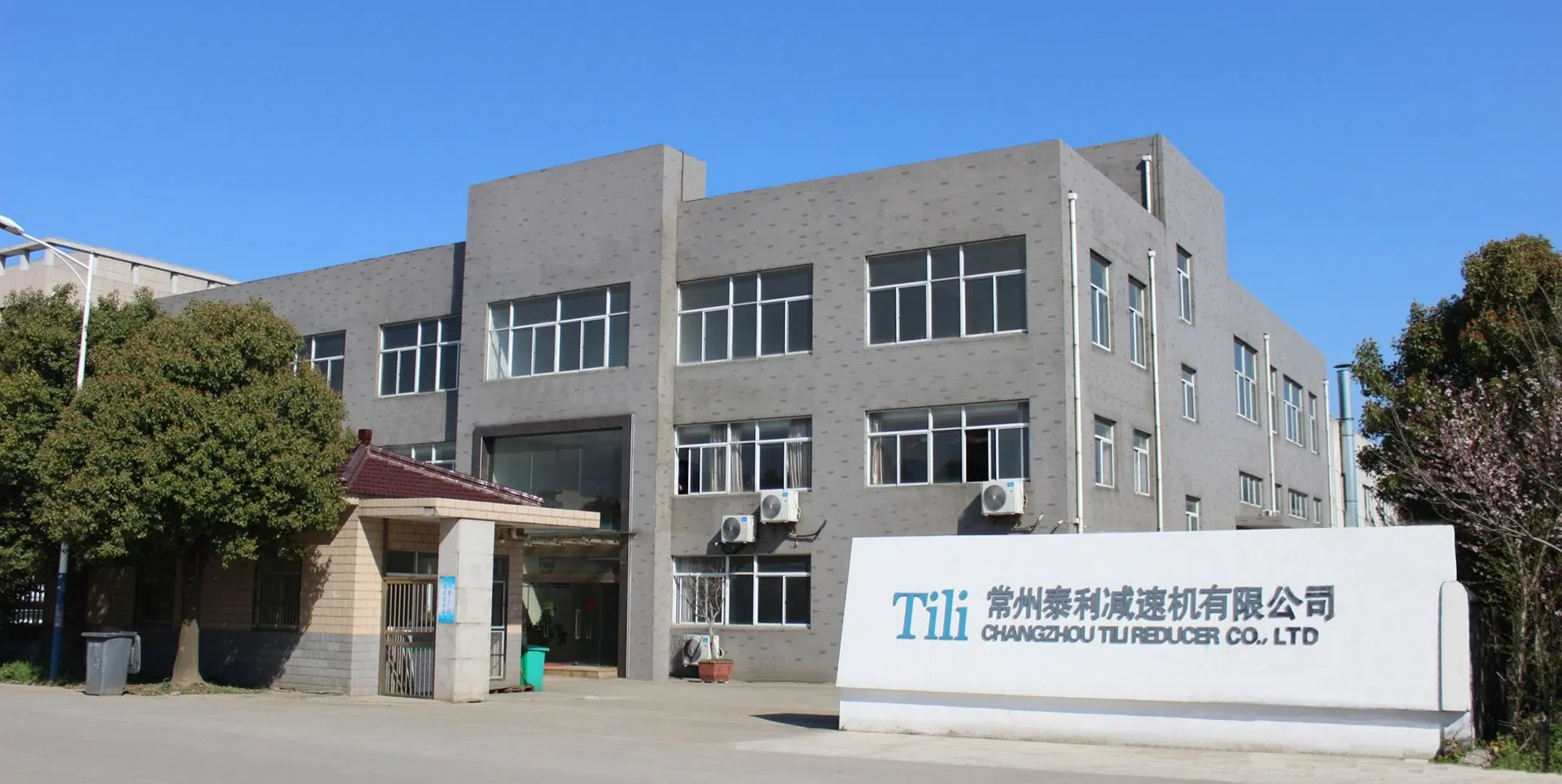

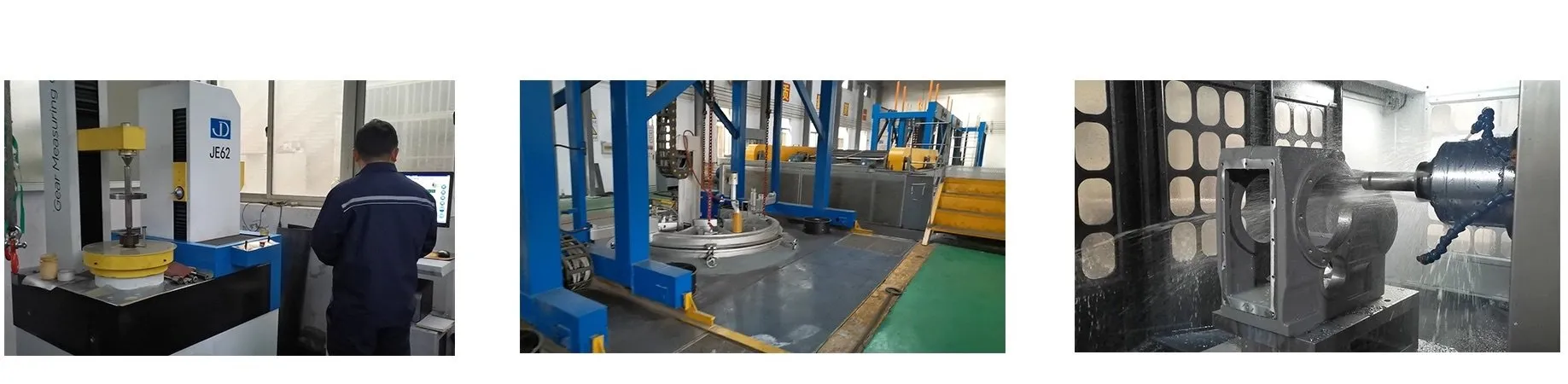

Specializing in the production of high-precision gear reducers with an annual output of up to 100,000 sets. Our products are widely utilized in plastics, rubber, metallurgy, mining, petroleum chemical industry, and lifting transportation.
