| Model NO. | QRA |
| Insulation Material | Xetfe |
| Sheath Material | Xetfe |
| Material Shape | Round Wire |
| Wire Core Material | Silver-Plated Copper Core |
| Model | C55 |
| Technical Standard | Mil-W-22759 |
| Transport Package | Steel-Wood Drum |
| Specification | AWG |

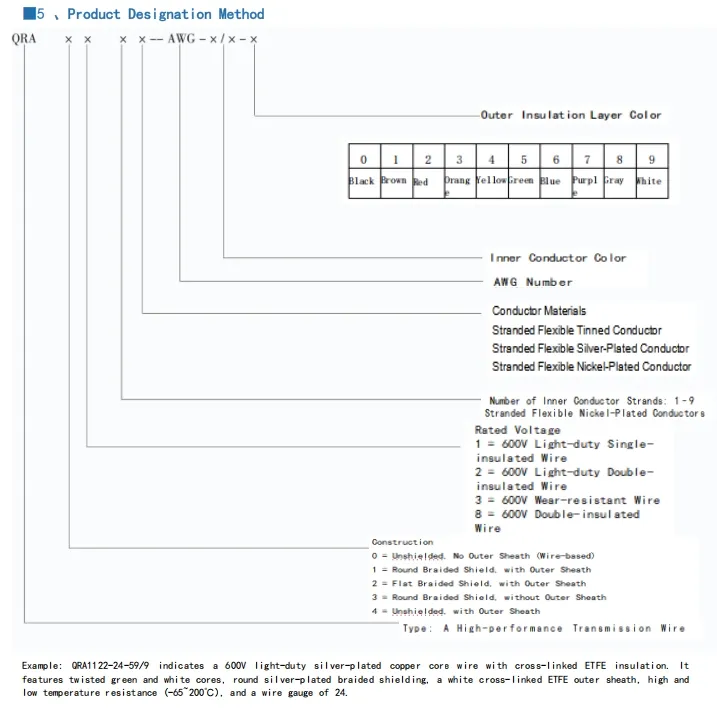

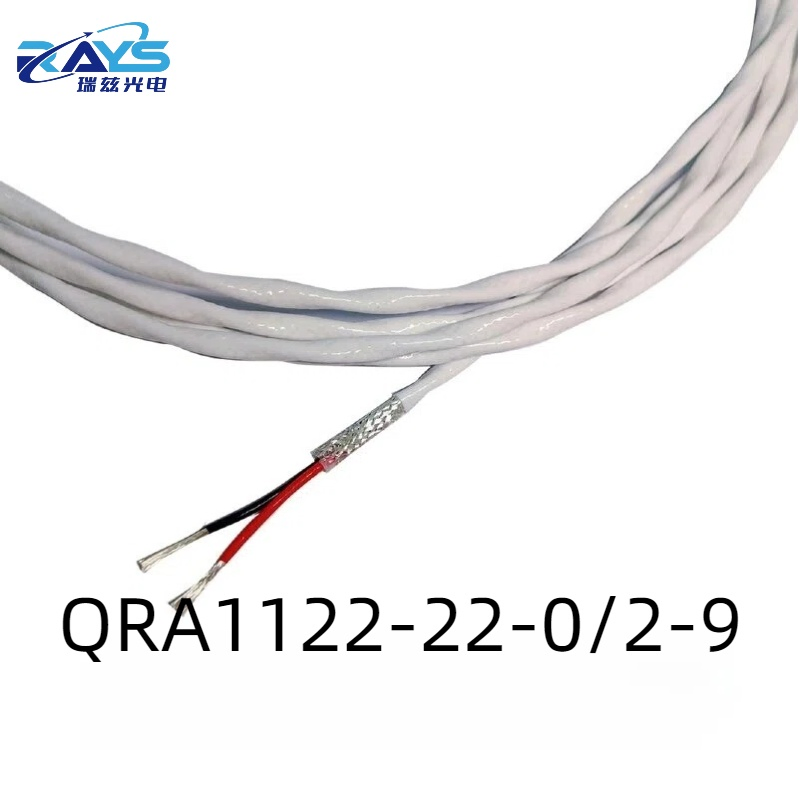

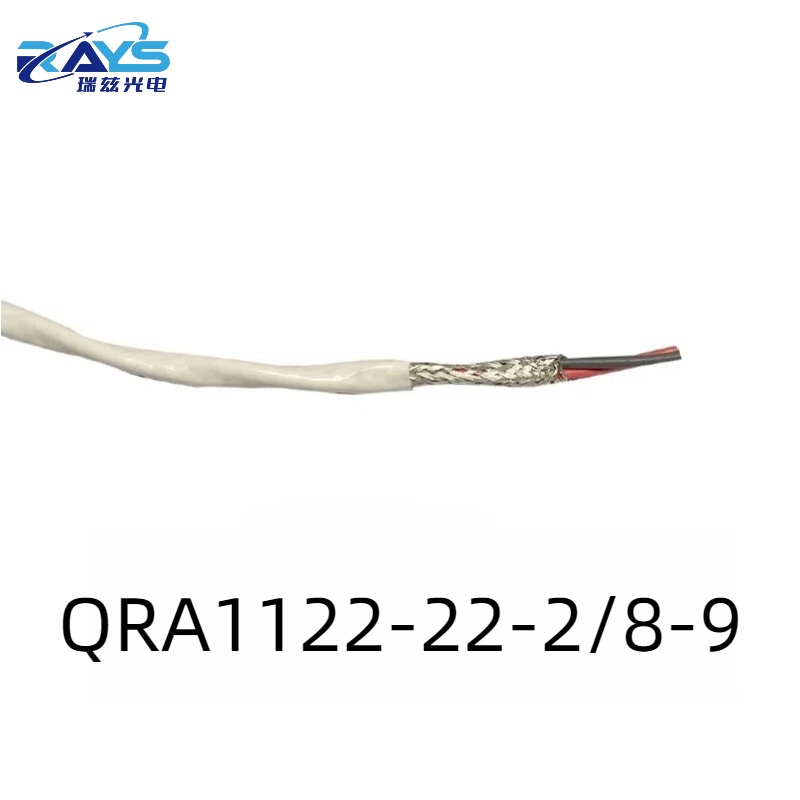

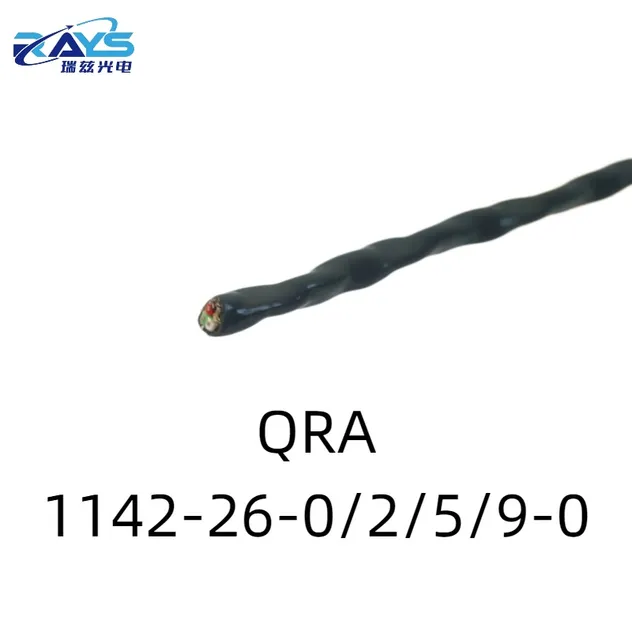

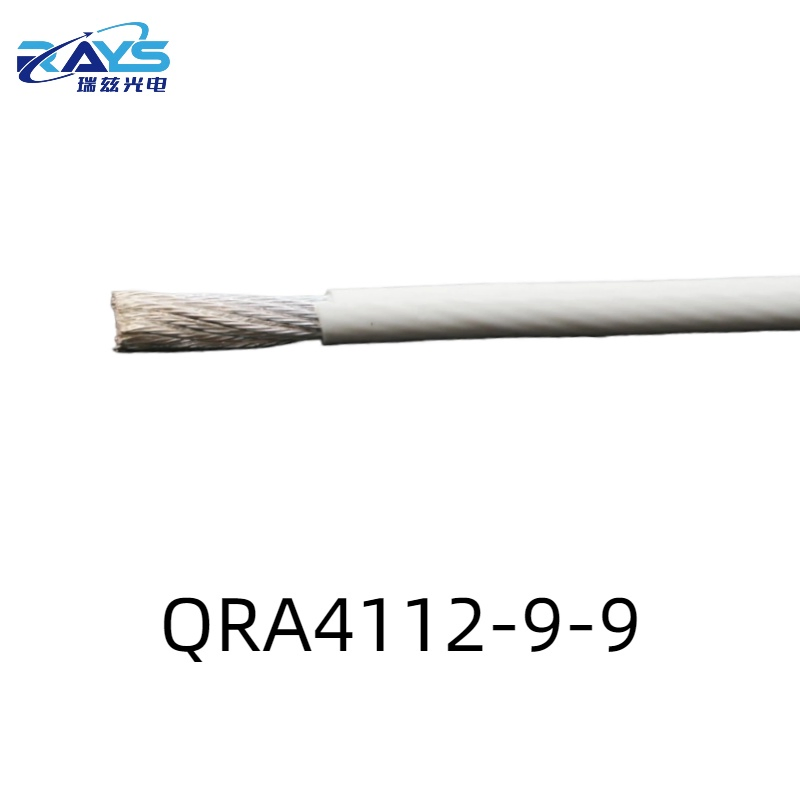

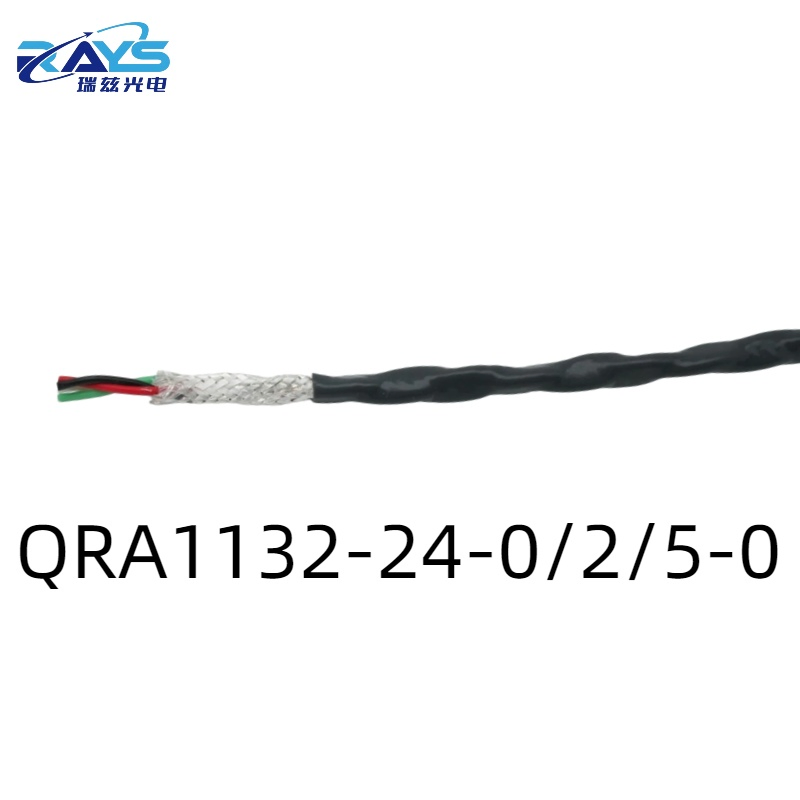

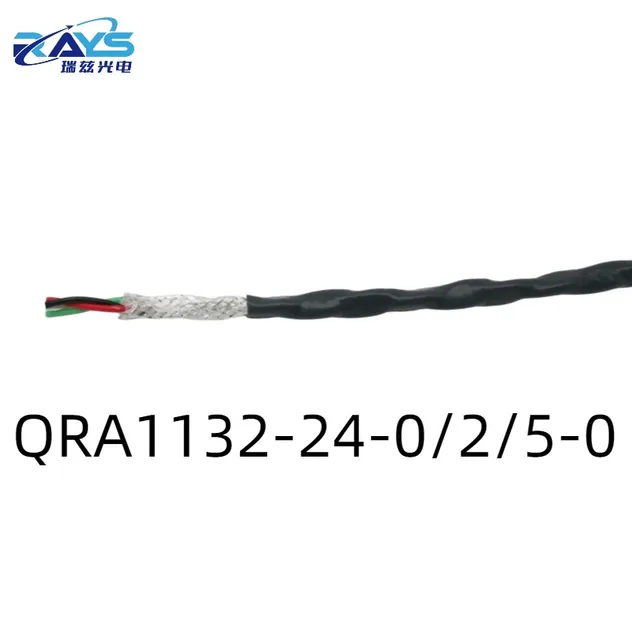

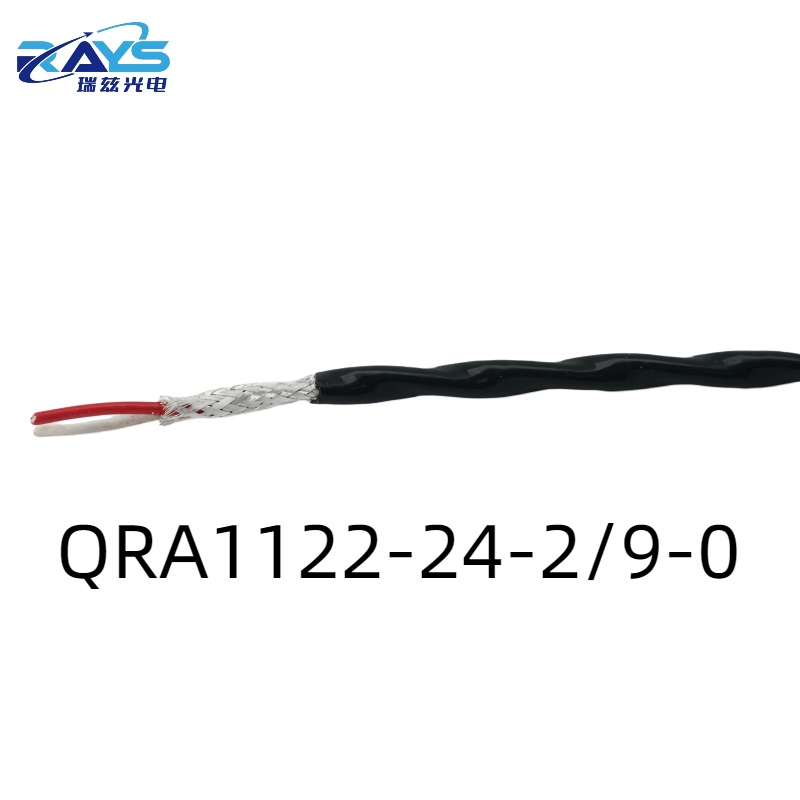

The QRA(C55) series high-performance transmission wires are designed and developed with reference to U.S. specifications MIL-W-22759/32~35 and MIL-W-2275/46, and are based on the national standard GJB773A-2000.
This product features resistance to extreme temperatures (-65~200 ℃), light weight, no thermal shrinkage, and excellent mechanical toughness. It is resistant to salt spray, damp heat, and high-energy radiation, providing reliable service in harsh environments.
Applications: Used for the transmission of information and energy in aerospace, aviation, ships, electronic equipment, and vehicle systems.
| Product Name | High-performance Transmission Wire |
| Product Model | QRA/C55 |
| Technical Standard | MIL-W-22759 / GJB773A-2000 |
| Conductor Material | Silver-plated copper core |
| Conductor Diameter | 0.38mm |
| Insulation Material | XETFE |
| Shielding Material | Silver-plated soft copper wire |
| Shielding Diameter | 2.5mm |
| Sheath Material | XETFE |
| Operating Temperature | -65℃ ~ +200℃ |

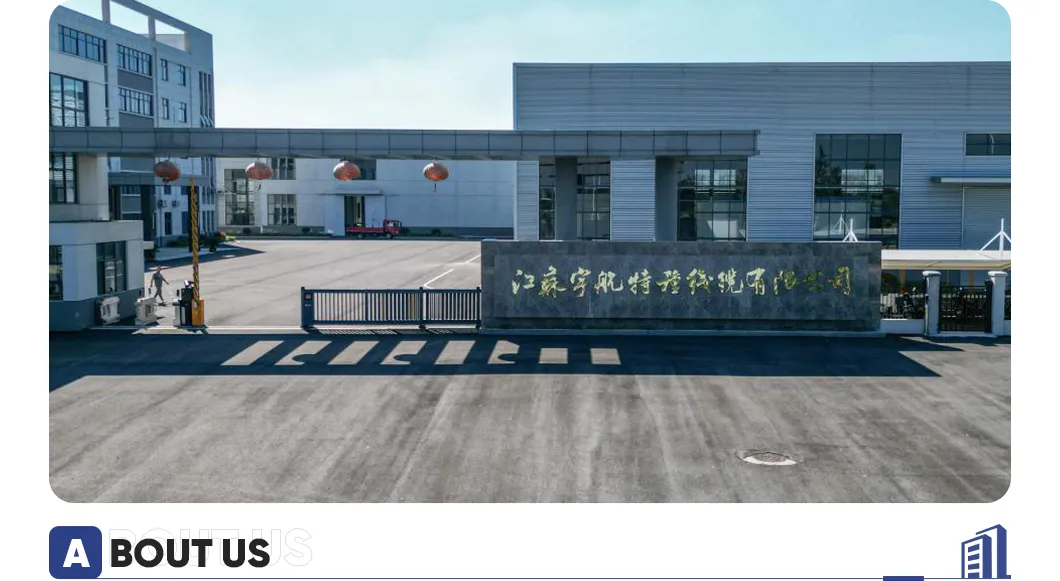

As a specialized technology enterprise, we focus on the research, development, and production of special cables, providing comprehensive technical solutions for transmission systems. Our expertise covers aviation, marine engineering, electronics, rail transit, 5G communications, and nuclear energy fields.

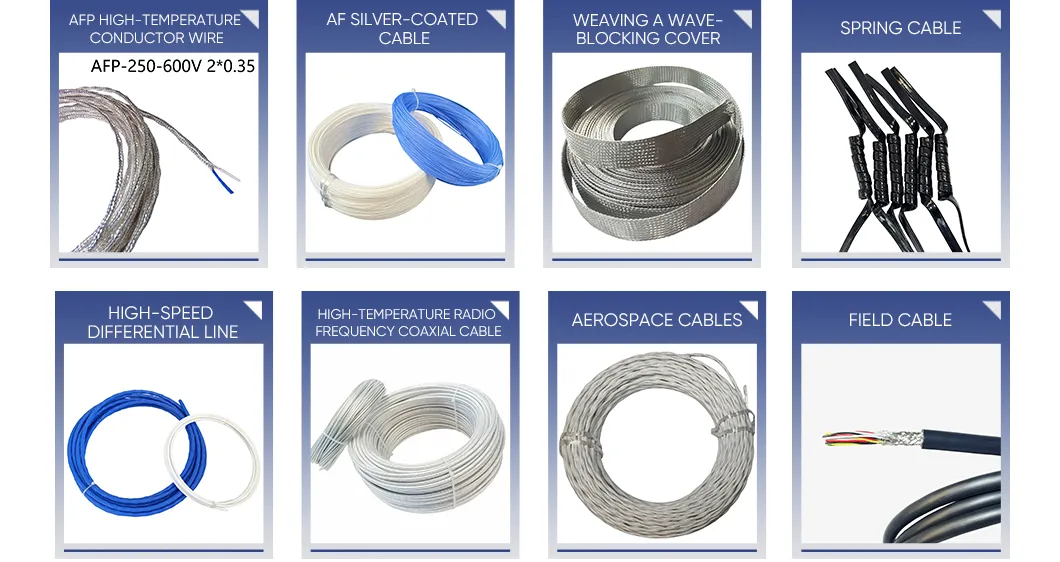

Our product portfolio includes aviation wires, marine cables, watertight cables, differential cables, zero-buoyancy cables, coaxial cables, and signal cables. We utilize advanced insulating materials such as polyimide, FEP, cross-linked PTFE, and silicone rubber to ensure resistance to acid, corrosion, and extreme temperatures.
