G657A2 0.25mm 0.27mm High-Performance Fiber Optic Cable for Fpv Drones

Customization:	Available
Application:	Communication
Type:	Single-mode Fiber

📋

Basic Information

Model NO.

FC-0.27mm

Connection

FC

Material Shape

Round Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

<100N

Core

Single Core

Certification

RoHS, CE, ISO9001

Sheath Material

PE

Fiber Type

G657A2

Weight

7kg

Color

Invisible / Transparent

Outer Diameter

0.27mm

🚀

Product Description

This product utilizes advanced fiber optic technology to ensure high-performance transmission over distances of up to 30 km. With its ultra-lightweight design and low-latency performance, it provides a reliable and stable data connection, making it an ideal choice for FPV drones and UAVs. Designed for precision and efficiency, it enhances real-time flight control, ensuring smooth and accurate operation even in demanding environments.

Material: ABS (Black) - Strong and lightweight.

Custom Sizes: Flexible options for various needs.

Compatibility: Supports FC, ST, SC, LC connectors.

Fiber Support: G657A2, 0.27-0.4mm diameter.

Handling: Effortless and smooth cable deployment.

📊

Technical Parameters

Parameter	Specification	Fiber Length	Fiber Type
Type	FC-0.27-15	3005M	G657A2
Outer Shell	Tensile & Abrasion Resistant	Working Temp	-40 to +85 ºC
Diameter	0.27mm	Color	Transparent

Fiber Attenuation Data
Wavelength	1310nm	1550nm	Notes
Insertion Loss/km	≤0.35dB	≤0.25dB	High Stability

📦

Packaging & Shipping

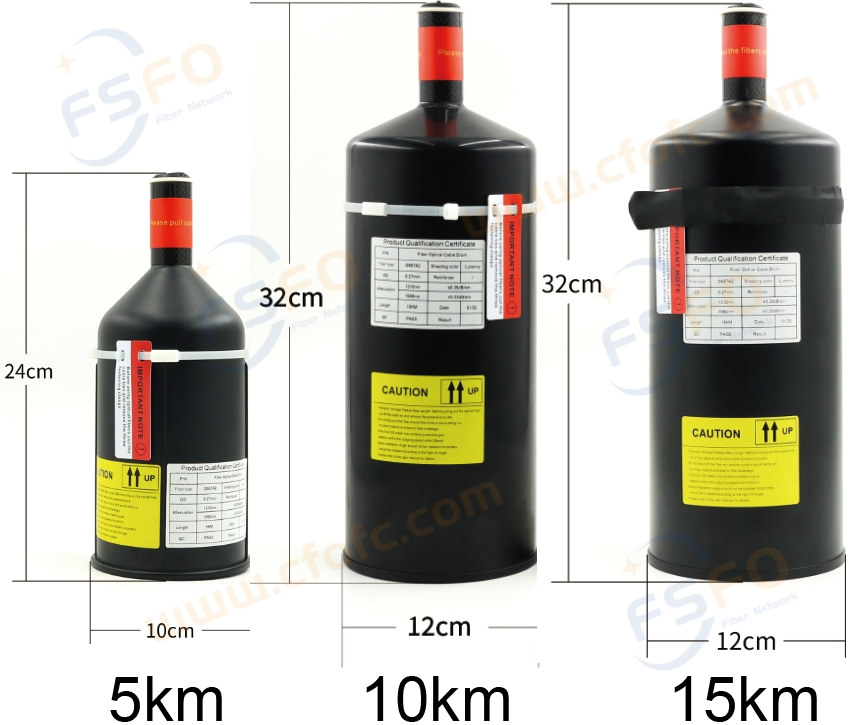

Type	Inner Box (cm)	Outer Box (cm)
3km / 5km	31 * 17 * 14.5	64 * 35 * 32
10km / 15km	38.5 * 17 * 17	52.5 * 41 * 37

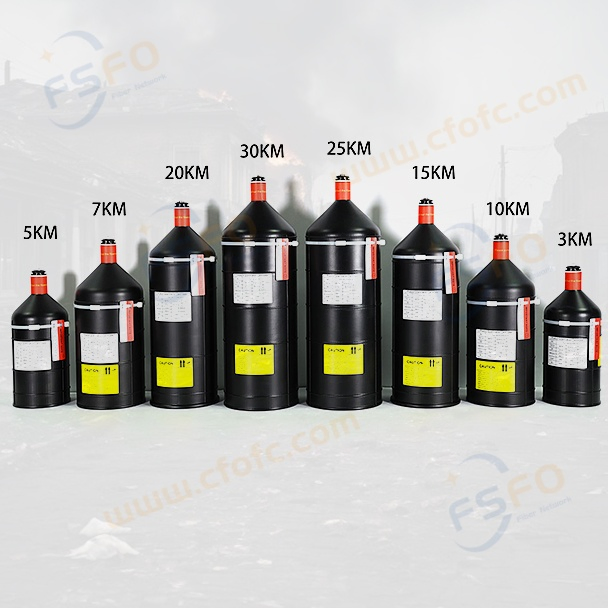

Fiber Length	Net Weight	Gross Weight
3km	300g	560g
10km	950g	1.27kg
20km	1.65kg	2.03kg
30km	2.1kg	2.51kg

📷

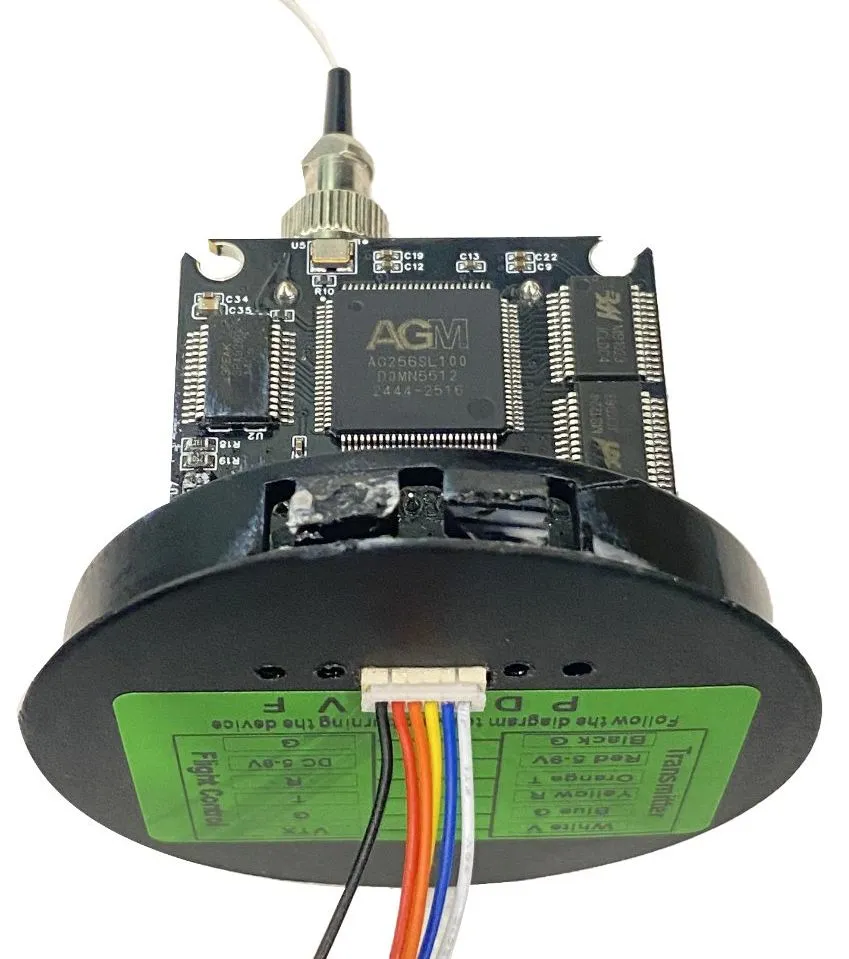

Detailed Photos

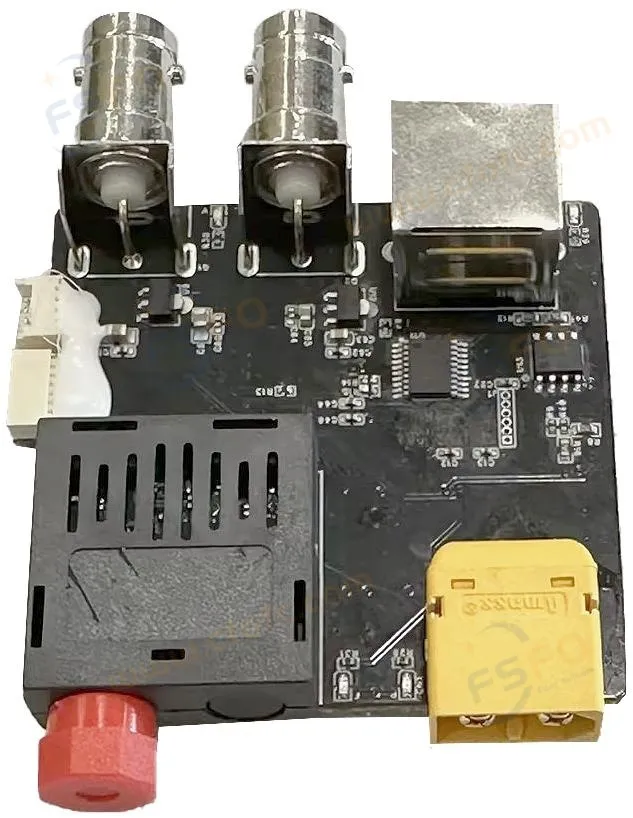

🔹 XT60 power supply port
🔹 RJ45 Network Cable Socket
🔹 CRSF direct data connection

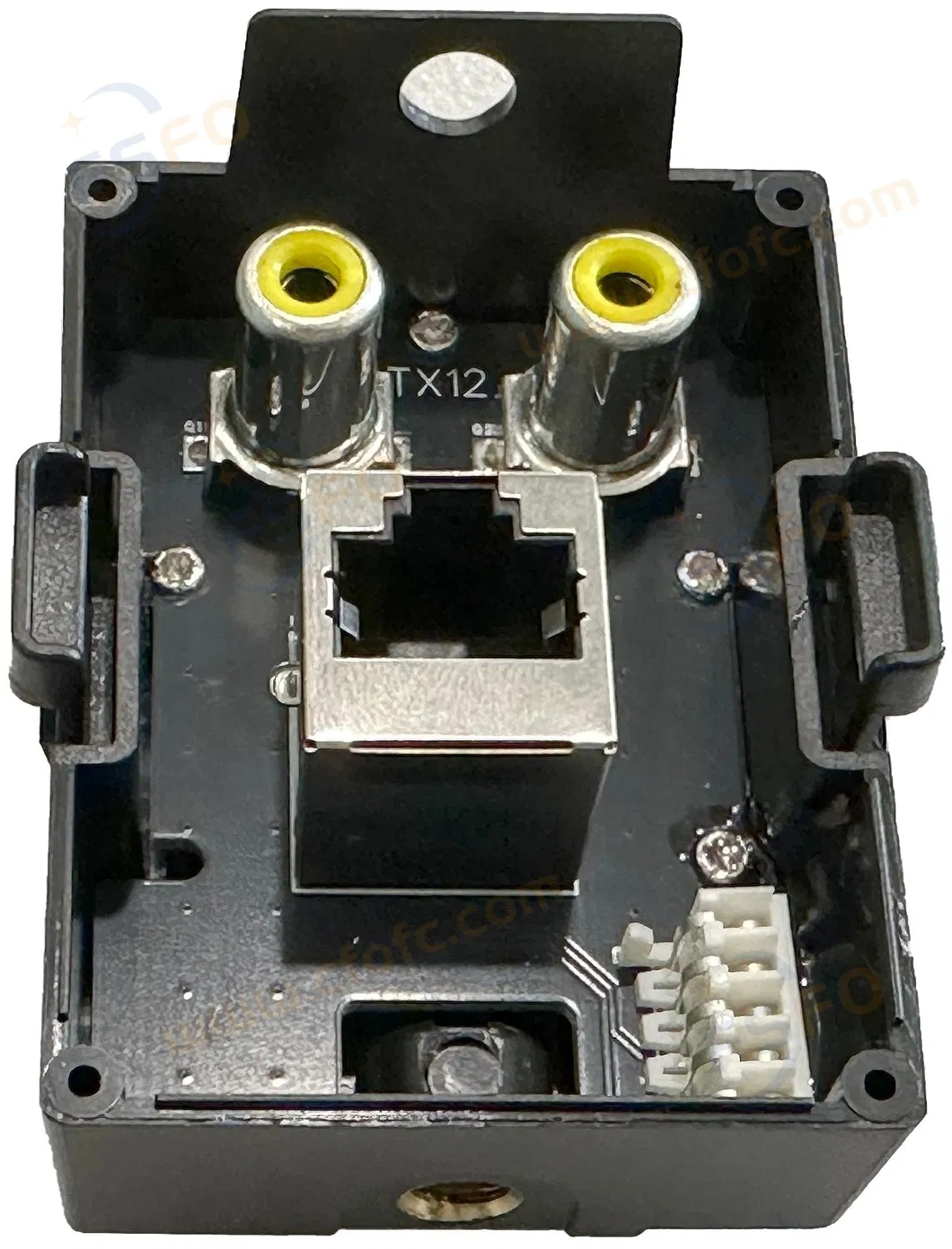

🔹 BNC video interface
🔹 6P 5.8G Video Transmission
🔹 FC/SC/ST/LC Optical ports

Stable transmission, fast speed, zero electromagnetic interference, and protection against eavesdropping.

🛠️

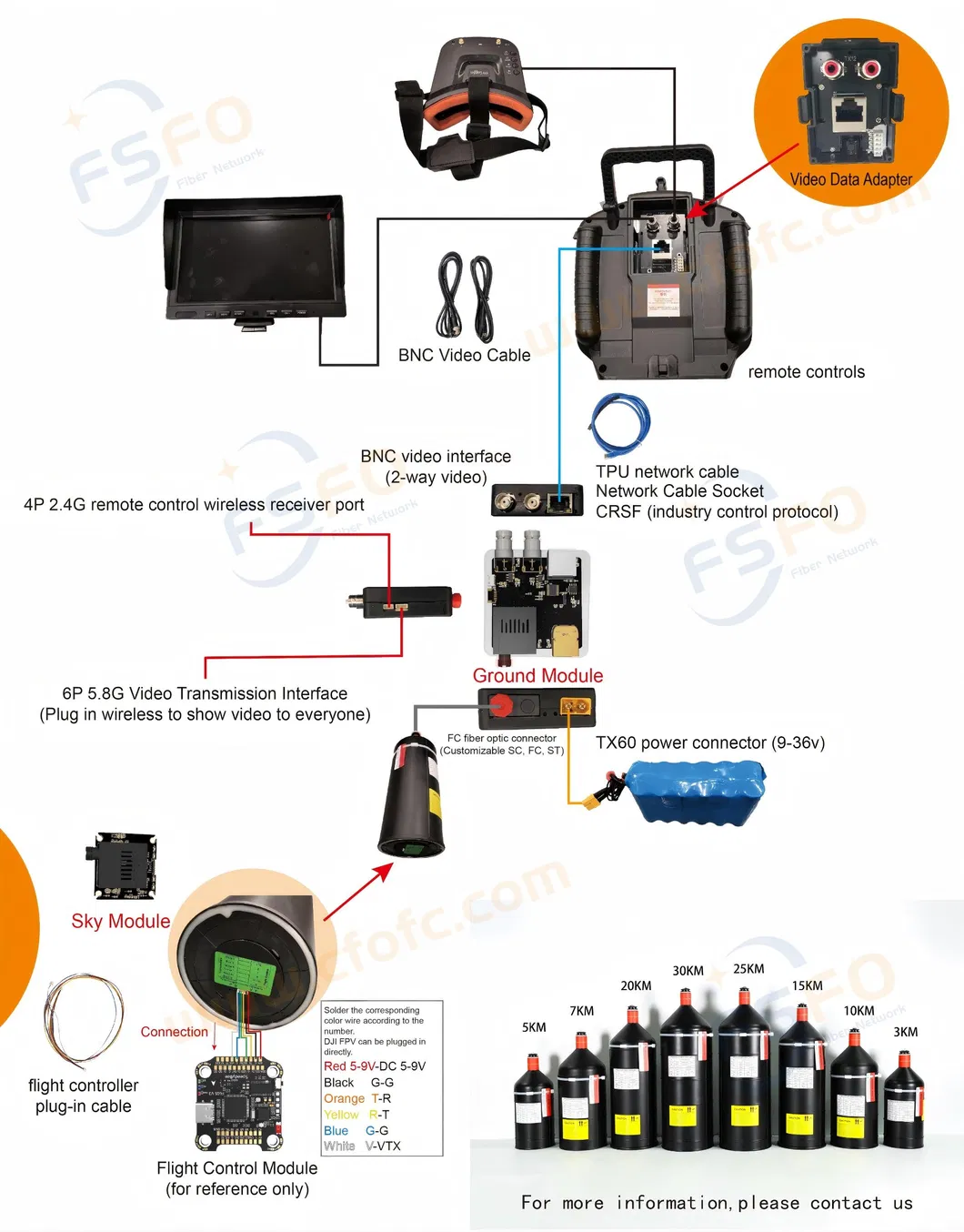

Installation Instructions

❓

Frequently Asked Questions

What is the maximum transmission distance of this fiber optic cable? The cable supports high-performance data transmission for distances up to 30 km, making it ideal for long-range UAV operations.

Which fiber type is used in this product? We use G657A2 fiber, which is known for its excellent bend resistance and low attenuation.

Is the cable compatible with different drone controllers? Yes, it features plug-and-play connectivity and supports CRSF protocols, RJ45, and various video interfaces for FPV drone flight controllers.

What are the available connector options? The standard connector is FC, but we also offer alternative options including SC, ST, and LC ports to suit your specific equipment.

How does the cable handle electromagnetic interference (EMI)? Because it uses optical fiber as the transmission medium, it is completely immune to electromagnetic interference, ensuring a stable signal in complex environments.

What is the operating temperature range? The cable is designed to operate reliably in extreme conditions, with a working temperature range from -40ºC to +85ºC.
