Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
1 / 5
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck
Full Series China Isuzu Nhr Nkr Npr Light Truck

Full Series China Isuzu Nhr Nkr Npr Light Truck

Customization: Available
Type: Flatbed Style
Transmission Type: Manual
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.QL1070A1HA
Emission StandardEuro 4
Load Capacity1-10t
PowerDiesel
Drive Wheel4×2
Seats≤5
Horsepower＜150hp
Engine Capacity＜4L
Tire CertificationECE, GCC, ISO, DOT
Tire DesignRadial
ConditionNew
BrandIsuzu Light Truck
Engine4kh1, 4HK1
OriginChina
Production Capacity20000/Year
🚚

Product Description

CHINA ISUZU NHR NKR NPR SERIES LIGHT TRUCK is equal to Japan Isuzu same series light truck and totally compatible in both spare parts and after-sales service, offering more competitive prices and excellent performance.

1. Truck Exterior View

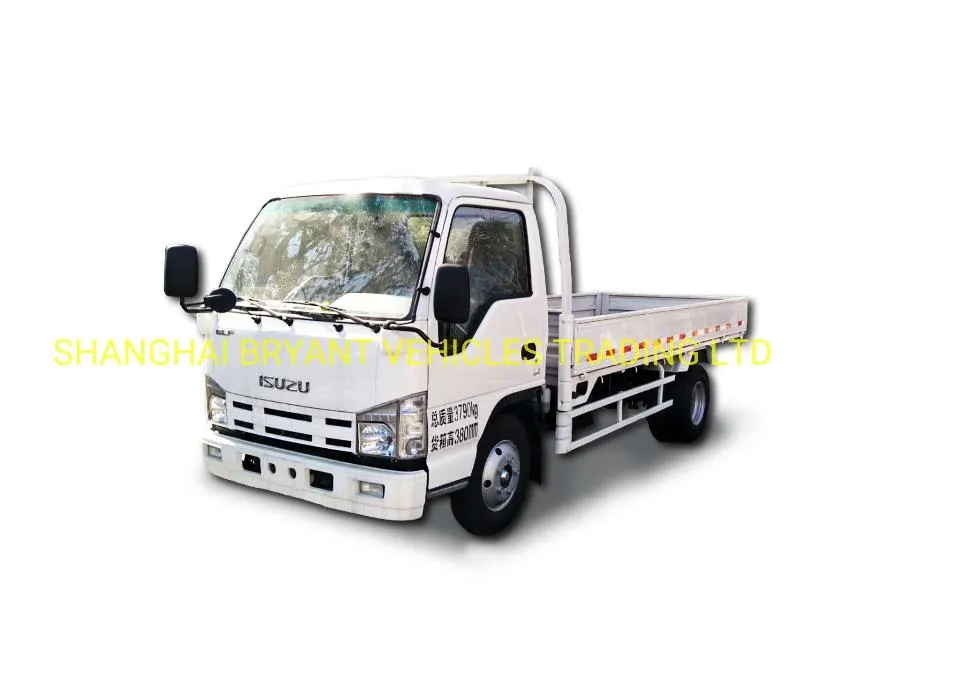

Light Truck Exterior 1

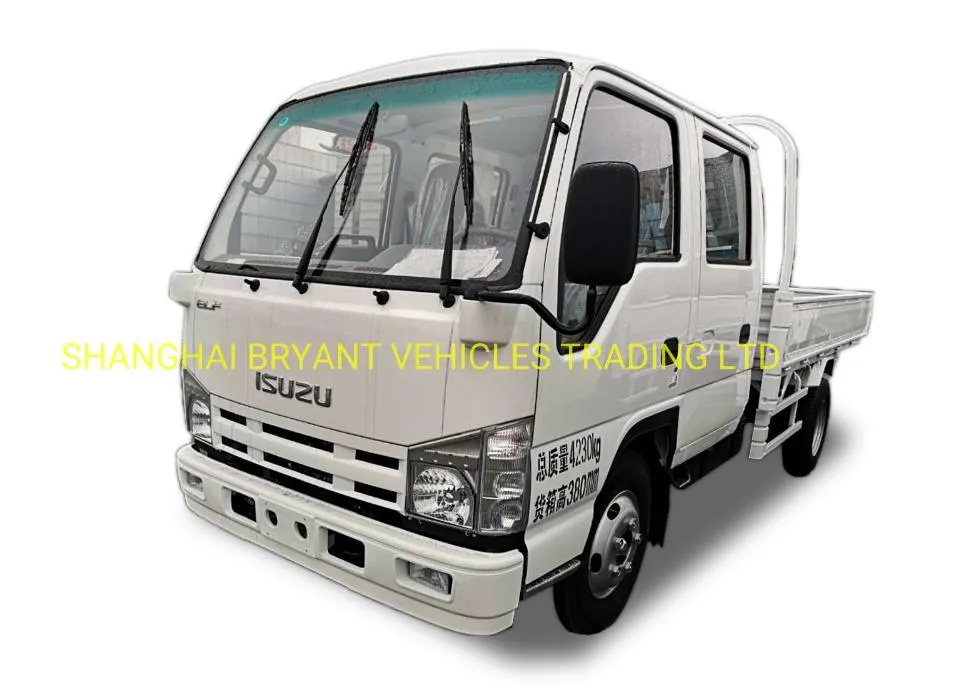

Light Truck Exterior 2

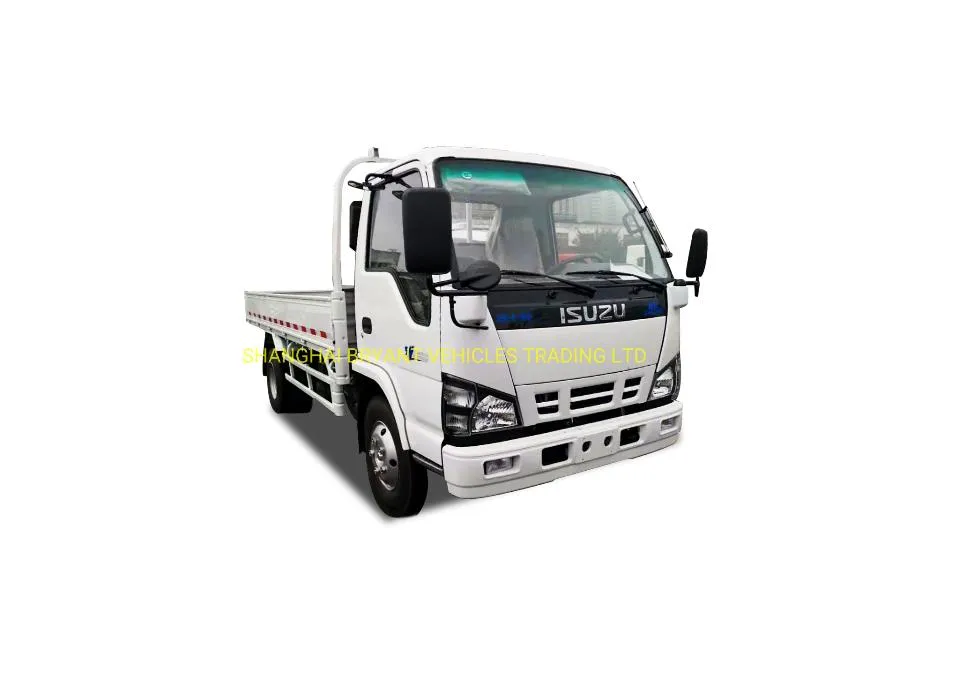

Light Truck Exterior 3

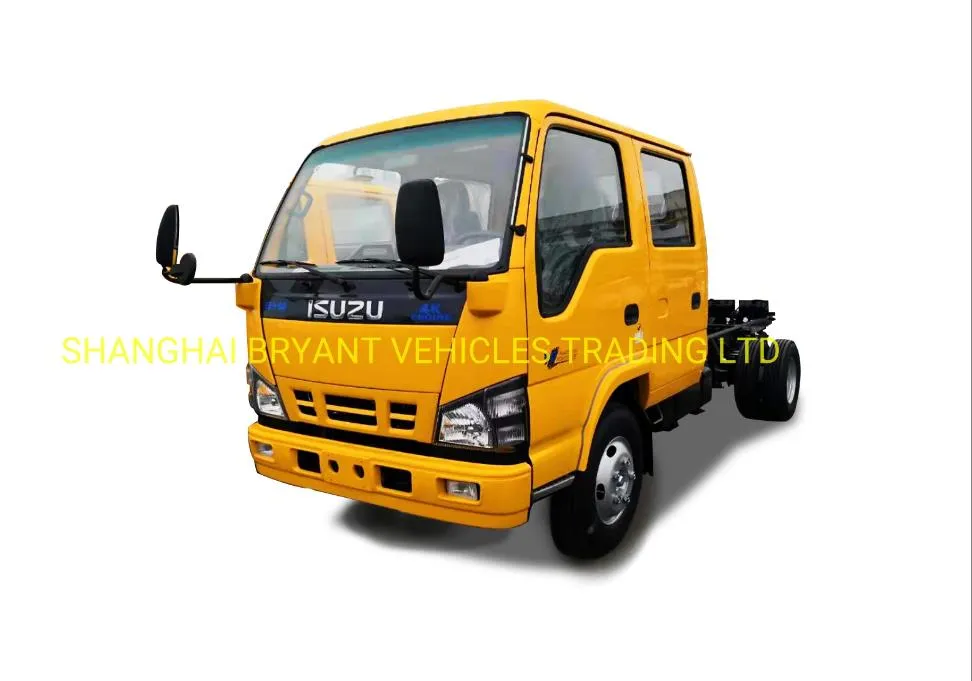

Light Truck Exterior 4

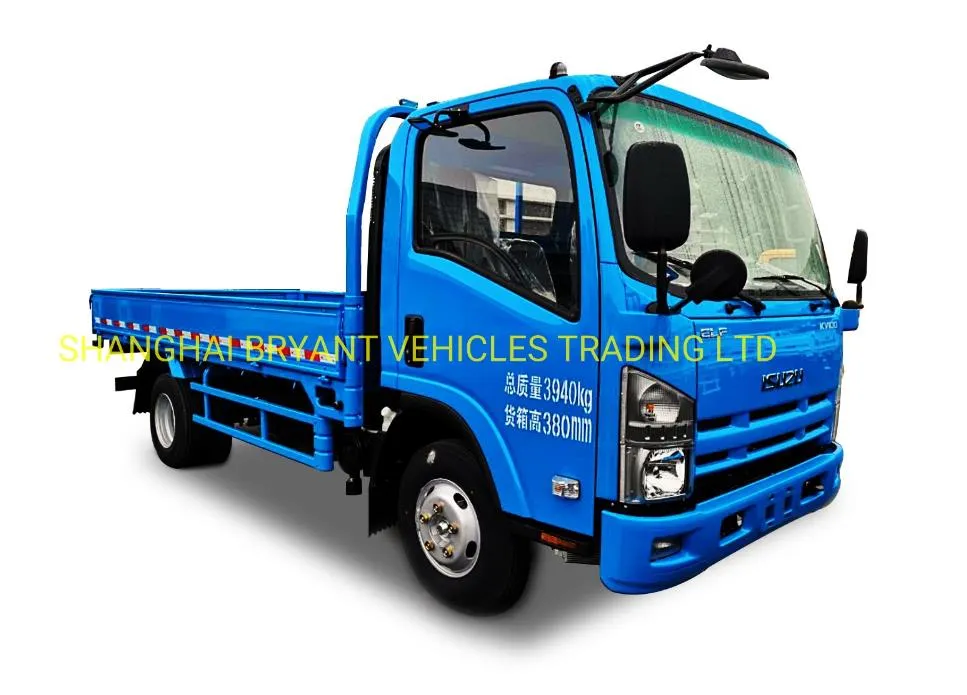

Light Truck Exterior 5

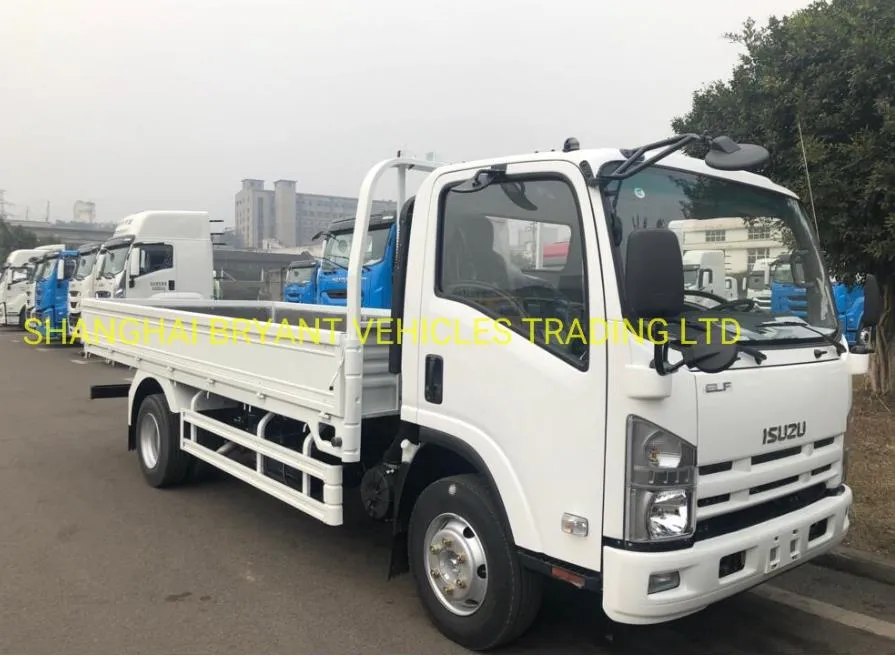

Light Truck Exterior 6

2. Cabin Interior

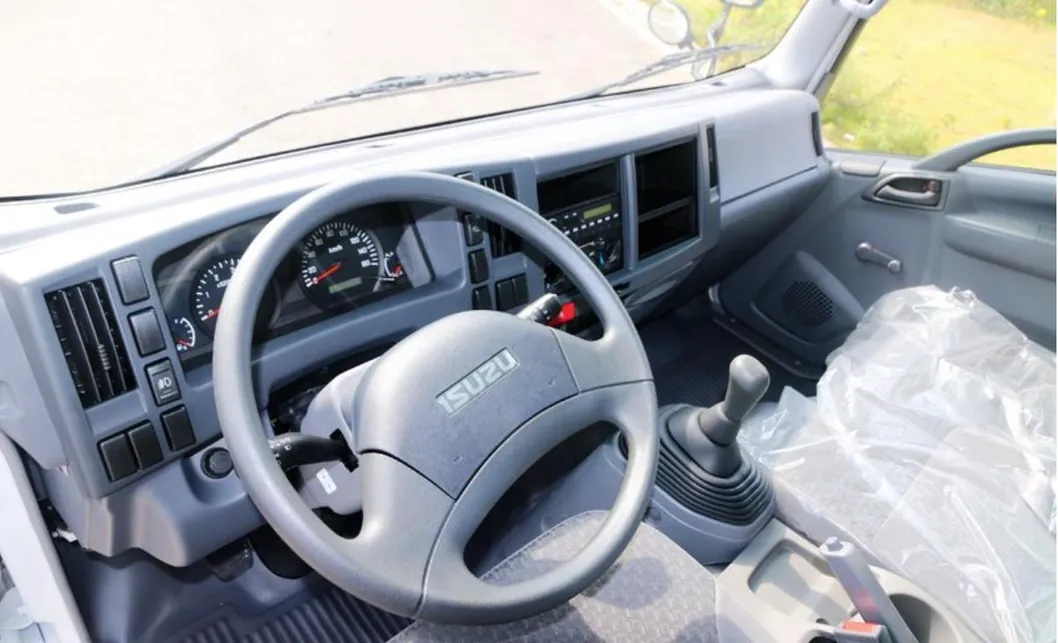

Cabin Inside 1

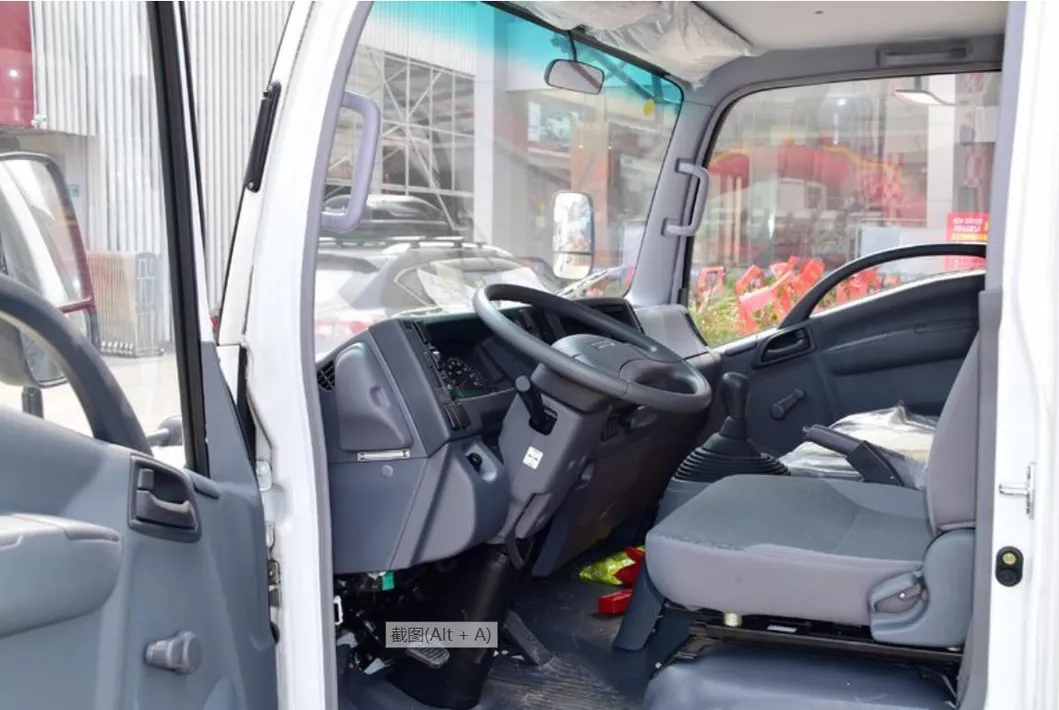

Cabin Inside 2

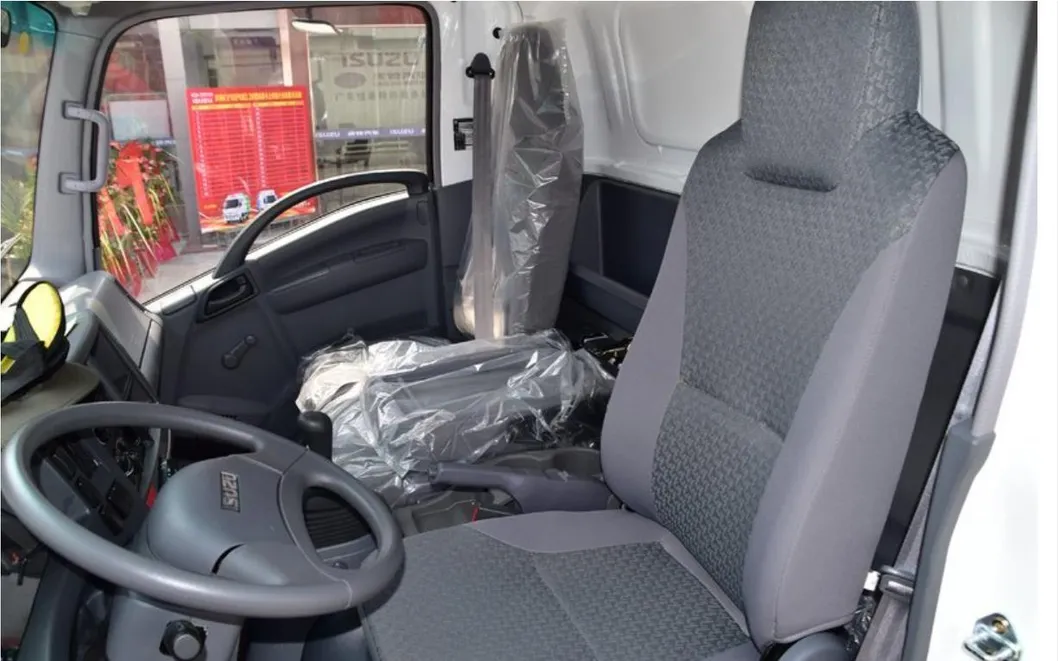

Cabin Inside 3

3. 4KH1 Engine Detail

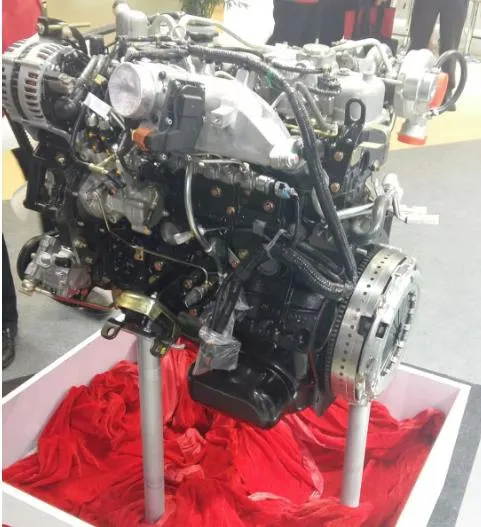

4KH1 Engine

4. Key Parameters for 600P Model

Category Specifications
Model QL1070A1HA Driving type: 4*2 left hand driving
Engine Make: ISUZU 4KH1-TCG40, Euro IV
4-cylinder in-line, water cooled, turbo-charging, intercooler
Maximum output: 120 hp (88 Kw) | Torque: 290 Nm
Displacement: 2.999 L
Transmission ISUZU MSB-5M, 5 forwards and 1 reverse, manual
Axle Capacity Front: 2.1 Ton | Rear: 4.33 Ton
Wheels & Tyres Tire: 7.00R16, Radial
Driver's Cab Standard cab, two seats, A/C included
Dimensions (mm) Wheelbase: 3360 Overall: 5900 × 1880 × 2160
Dropside Size 4275 × 1790 × 380 MM
Weight (kg) GVW: 6430 KG Rated Loading: 3530 KG
❓

Frequently Asked Questions

What is the emission standard of the QL1070A1HA model?
This model complies with the Euro 4 (Euro IV) emission standard, ensuring efficient performance and reduced environmental impact.
Is this truck compatible with Japan Isuzu spare parts?
Yes, the China Isuzu NHR/NKR/NPR series is totally compatible with the Japan Isuzu same series in both spare parts and after-sales service.
What are the engine specifications for the 600P model?
It features the 4KH1-TCG40 engine with a 2.999L displacement, delivering a maximum output of 120 hp and 290 Nm of torque.
What is the loading capacity of this light truck?
The rated loading capacity is 3530 KG, with a gross vehicle weight (GVW) of 6430 KG, suitable for 1-10 ton transport needs.
Does the cabin come with air conditioning?
Yes, the standard driver's cab is equipped with two seats and a factory-installed A/C system for driver comfort.
What type of tires are used on this vehicle?
The truck uses 7.00R16 Radial tires, which are certified by international standards including ECE, GCC, ISO, and DOT.
