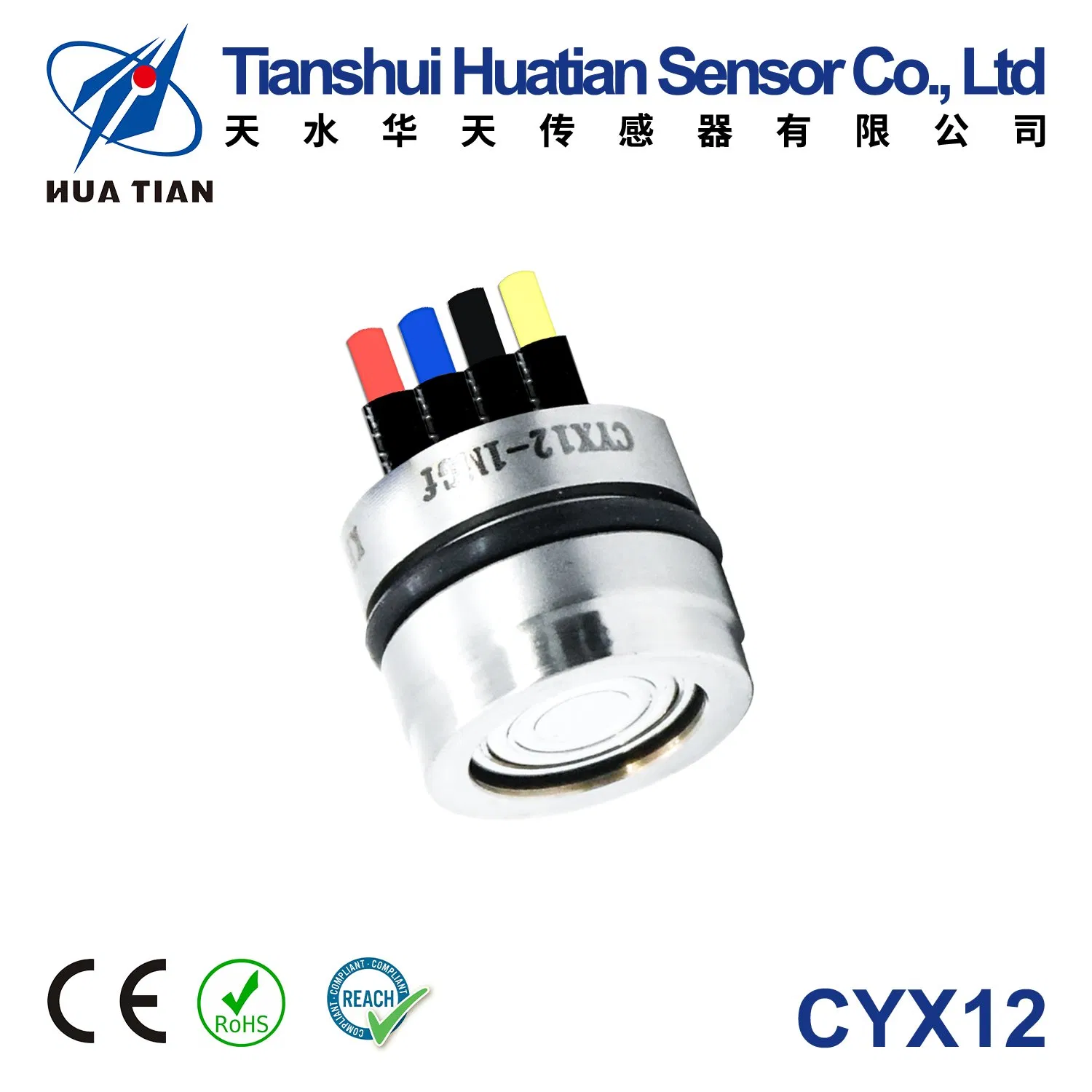

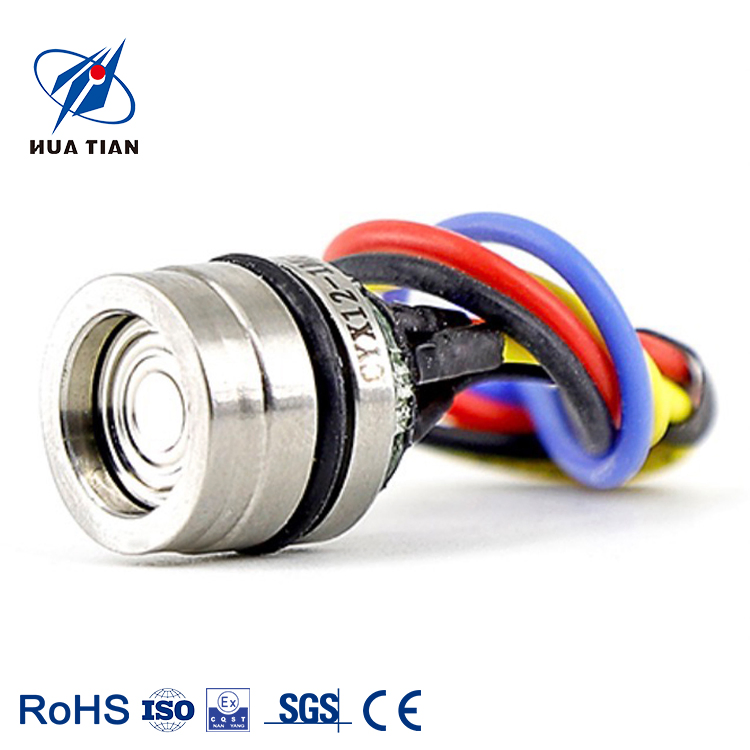

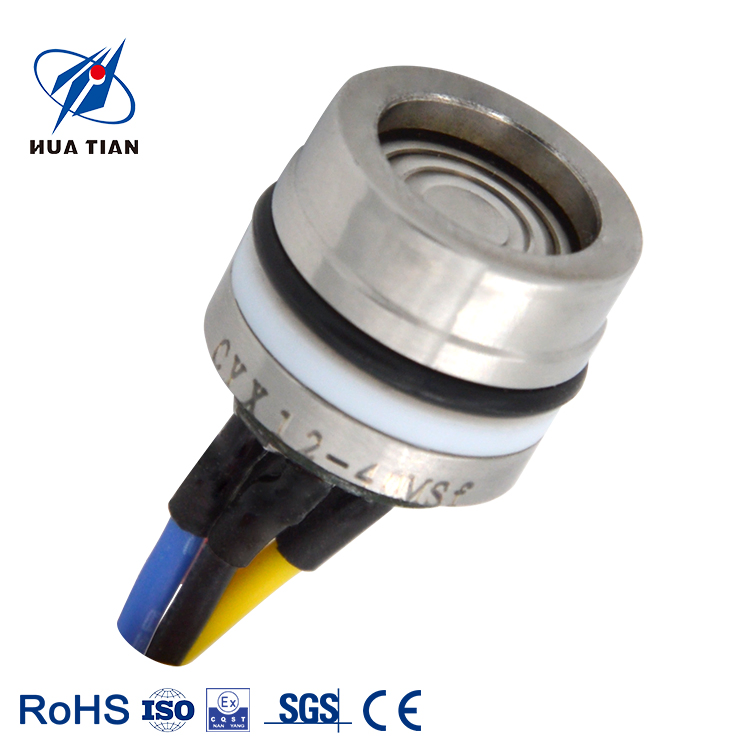

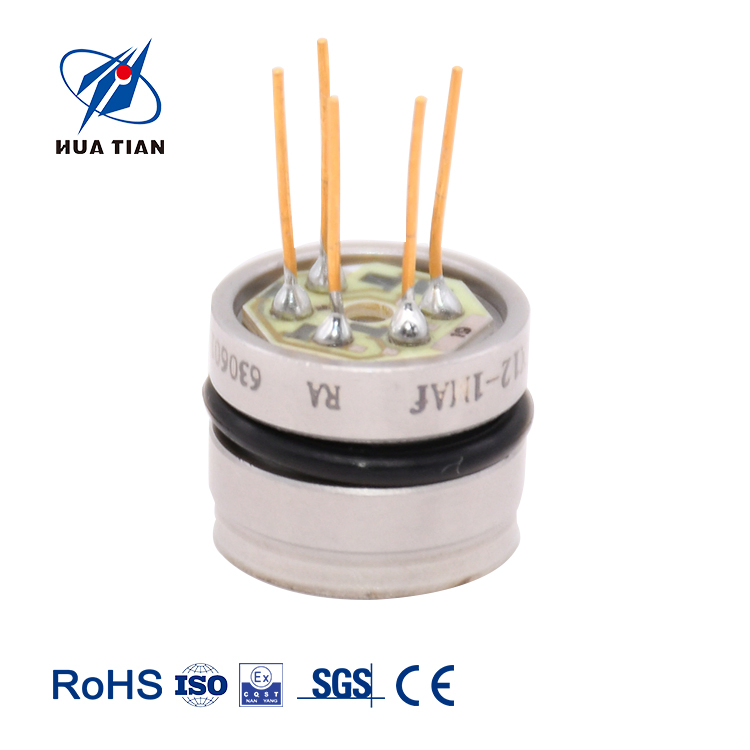

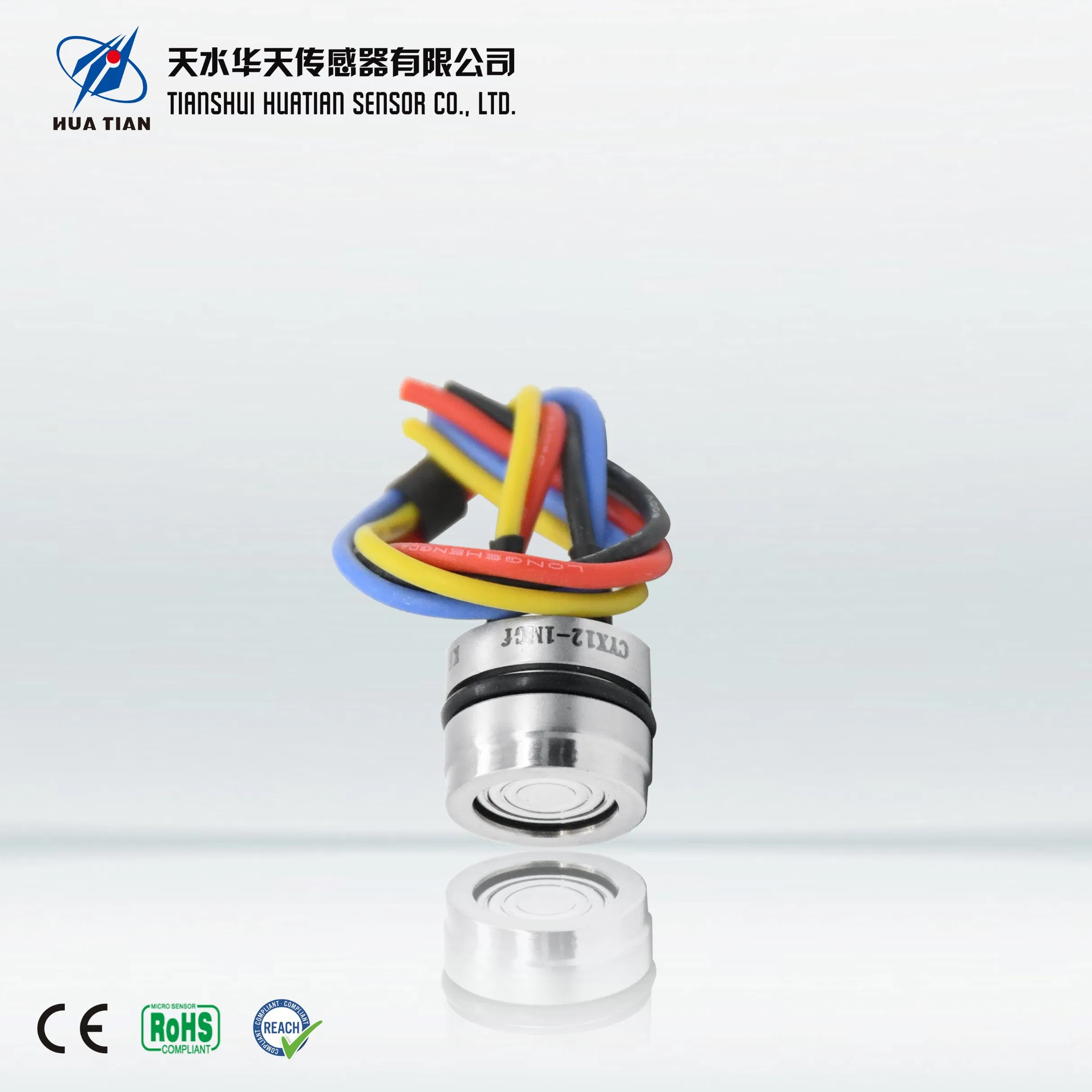

Huatian Cyx12 High-Performance 12mm Silicon Piezoresistive Sensor for Low Pressure Sensor

1 / 5

Huatian Cyx12 High-Performance 12mm Silicon Piezoresistive Sensor for Low Pressure Sensor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.CYX12

ApplicationDiffused Silicon Pressure Transmitter

Output SignalDigital Type

Material316L Stainless Steel

Measuring MediumLiquid / Gas

IP RatingIP65

Response TimeLess Than 1ms

Range-100kpa~100MPa

Stability0.1%Fs/Year

Excitation1.5mA (Max 10 VDC)

🔍

Product Overview

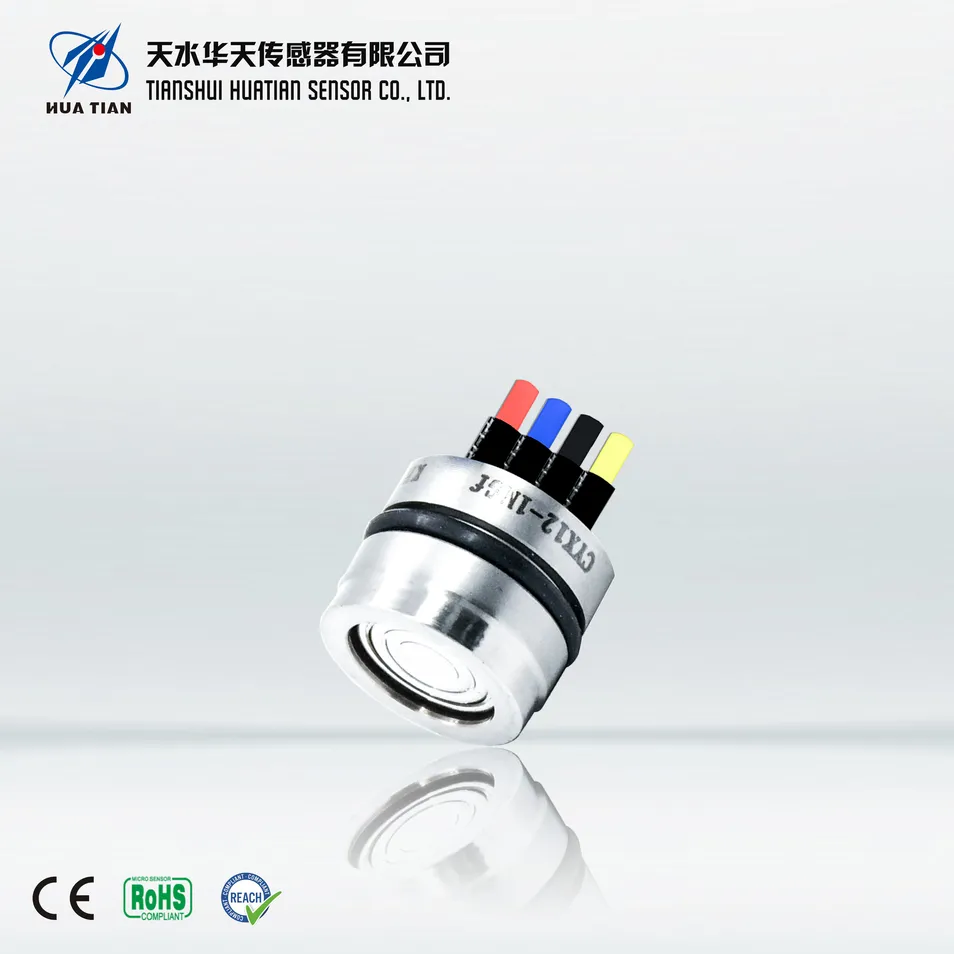

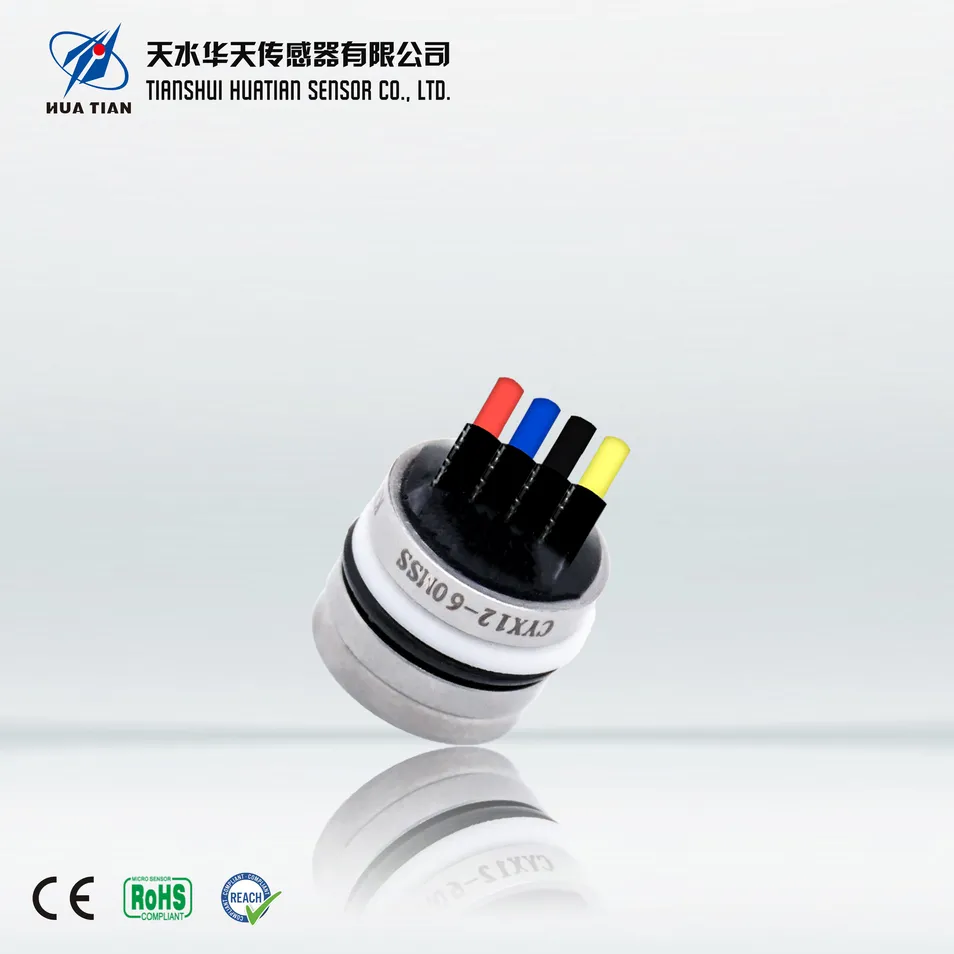

CYX12 High-Performance 12mm Silicon Piezoresistive Sensor

Featuring miniaturized external dimensions, this sensor is designed for high-precision low-pressure measurements in demanding environments.

💡

Innovative Design & Applications

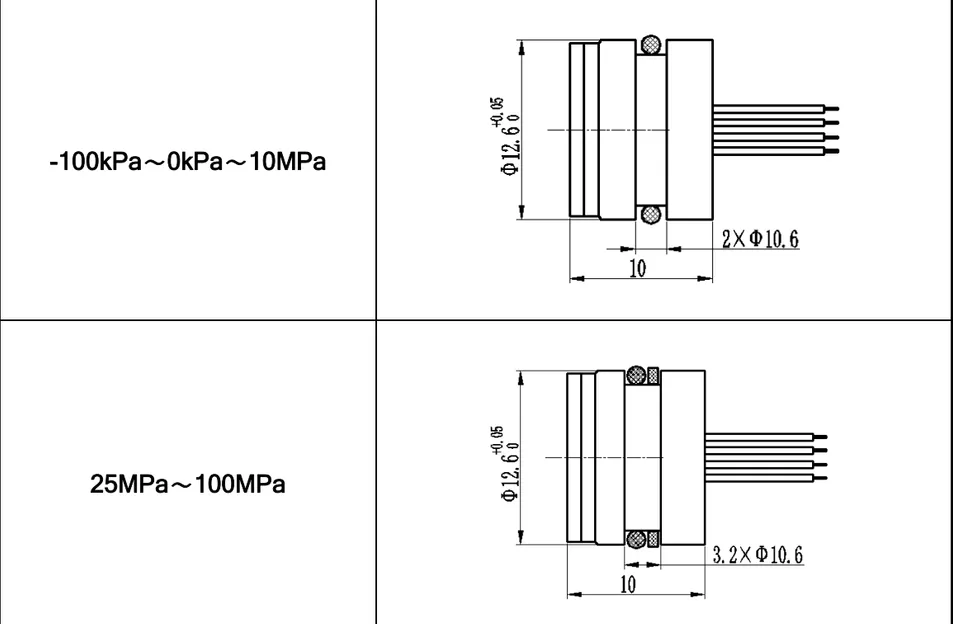

Outline Drawing: Appearance drawings can be customized to meet specific integration requirements.

Ideal for: Industrial process control, well detection, gas/liquid pressure measurement, hydraulic systems, and IoT fire protection.

⚙️

Technical Highlights

Feature	Specification
Range	-100kPa~0kPa~200kPa…100MPa
Pressure forms	Gauge (G), Absolute (A), Seal Gauge (S)
Power supply	≤ 3.0mA
Electrical connection	0.2mm² four color 100mm silicon rubber flexible wire
Common-mode voltage	50% of current type input (typical value)
Input impedance	2.7kΩ ~ 5kΩ
Output impedance	3.0kΩ ~ 6kΩ

📦

Packing & Delivery

Standard Export Pack

• Inner packaging box (Size varies by quantity)
• Outer packaging box (Reinforced for export)

OEM Services

• Custom logo embroidery (min. 300pcs)
• Private label packaging solutions

🛠️

After Sales Service

18-Month Warranty
Coverage against manufacturing defects.

Water Damage Coverage
Enhanced protection for liquid environments.

Battery Program
Replacement program available after 500 cycles.

🏢

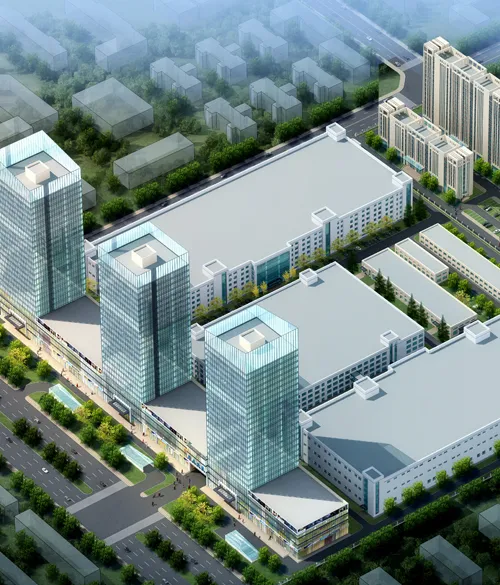

Manufacturing Excellence

Specializing in pressure transmitter and sensor production since 1982. With a monthly capacity of 50,000 units, we serve over 100+ global customers with intelligent functions and fast response capabilities.

📜

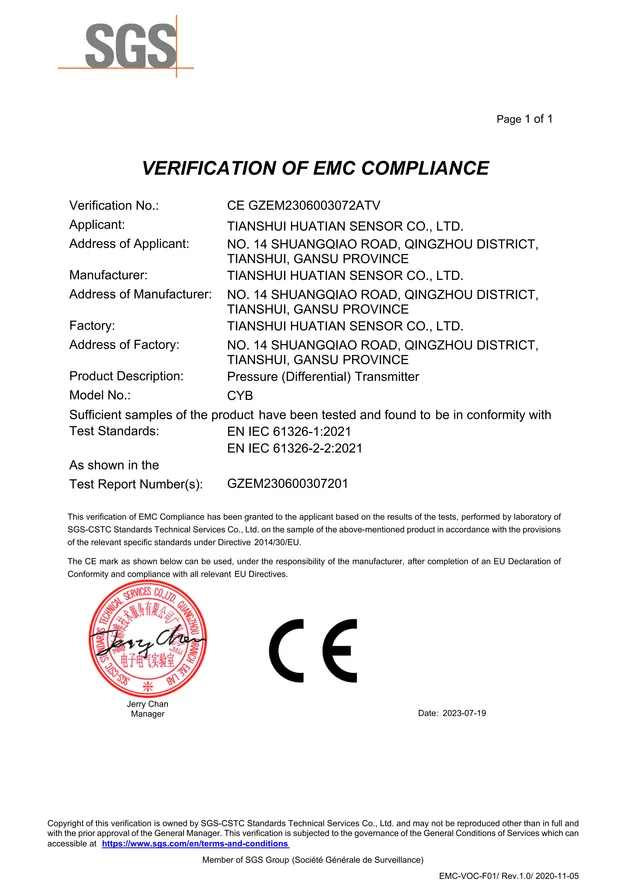

Certifications

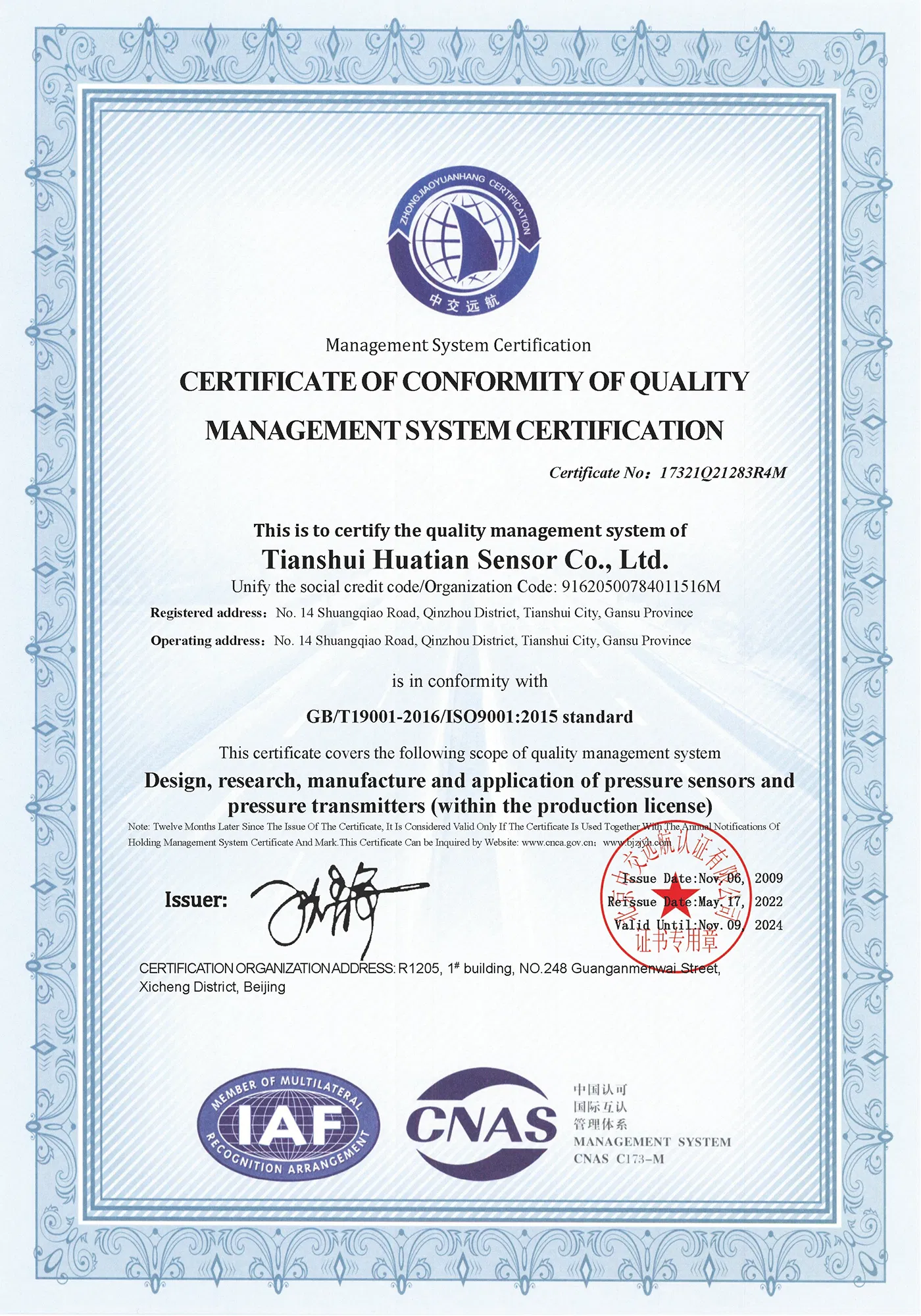

ISO 9001

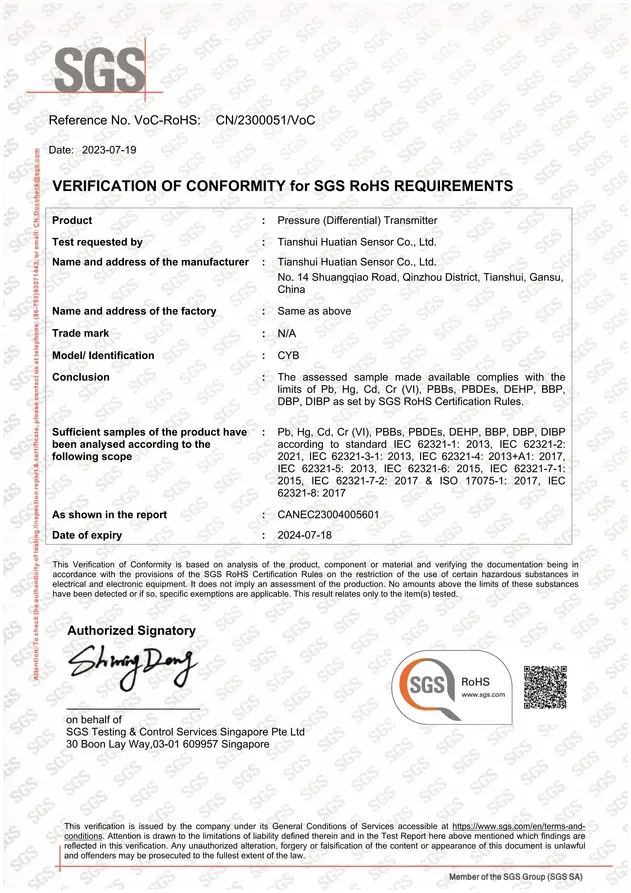

ROHS

❓

Frequently Asked Questions

Q: What types of sensors do you provide? A: We offer a wide range of pressure sensors, level sensors, temperature sensors, and digital controllers for global markets.

Q: Do you provide samples for testing? A: Yes, we maintain materials in stock to provide samples as quickly as possible for your evaluation.

Q: What is your quality control standard? A: Our quality management system strictly conforms to ISO 9001:2015. All products undergo full pre-inspection before shipping.

Q: What are the available payment terms? A: We accept T/T, PayPal, Western Union, Credit Card, and Trade Assurance online payments.

Q: How long is the product warranty? A: We provide an 18-month warranty against manufacturing defects and offer lifetime maintenance support.

Q: What is the typical lead time? A: Lead time depends on the specific product and quantity requested; we strive to provide the shortest possible turnaround.
