High Performance ABC Three-Layer Film Blowing Machine for Snack Packaging Bags

Customization:	Available
Type:	Film Blowing Machine
Raw Material:	LDPE, LLDPE,Mldpe, HDPE, Filler, Recycled Material

Send Inquiry

Product Description

📋 Basic Info.

Model NO.	ABC 3 Layers Film Blowing Machine
Maximum Folding Width	3000mm
Automation	Automatic
Computerized	Computerized
Machine Weight	18t/26t/28t/30t/35t
Certification	CE, ISO9001:2008
Product Name	Film Blowing Machine
Film Width	1000-1400mm, 1300-1800mm, 1800-2200/2400mm
Film Thickness	0.01-0.2mm for LDPE, 0.02-0.2mm for HDPE
Main Motor	30kw/45kw/30kw, 45kw/55kw/45kw
Output	120-180kg, 200-300kg, 500-700kg
Production Capacity	50000 Units/Year

🚀 Product Description

The ABC 3-layer co-extrusion blown film machine is designed for high-quality packaging film production with excellent thickness uniformity and long-term stable operation.

⚙️ Machine Overview

Machine Structure & Process

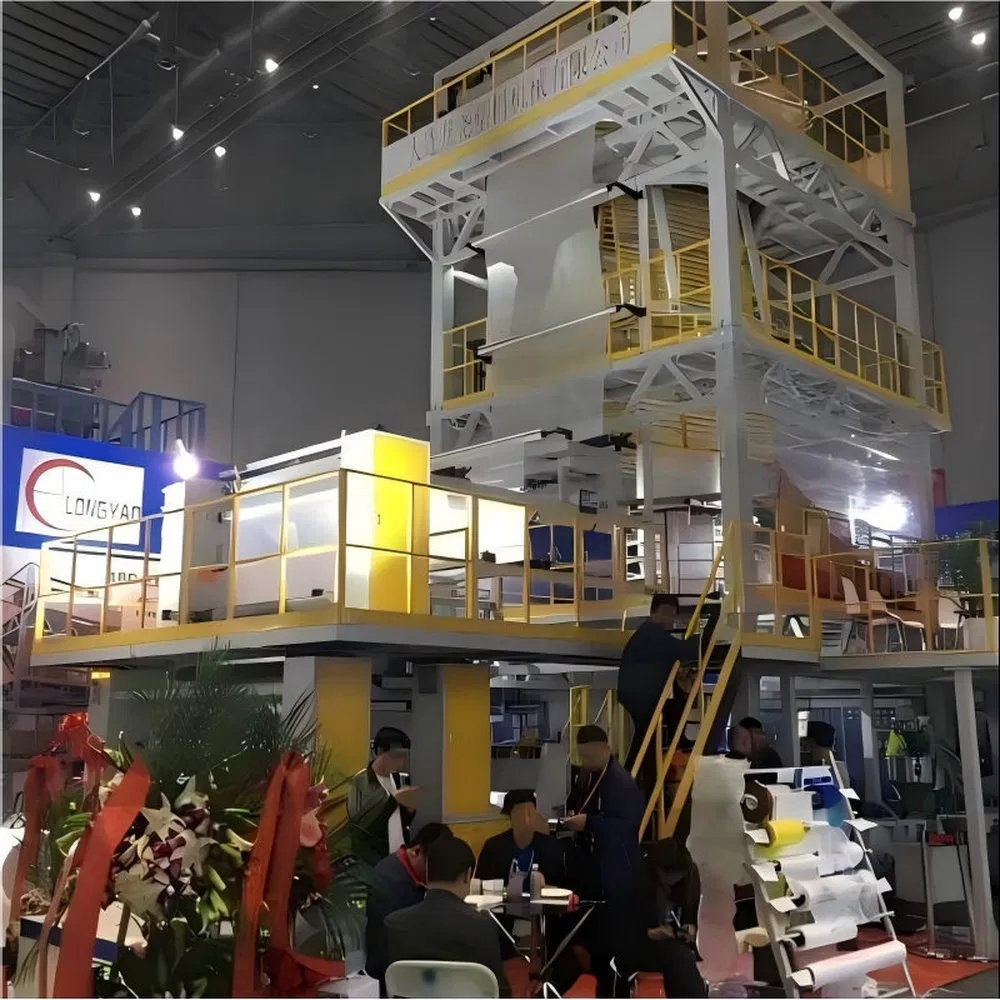

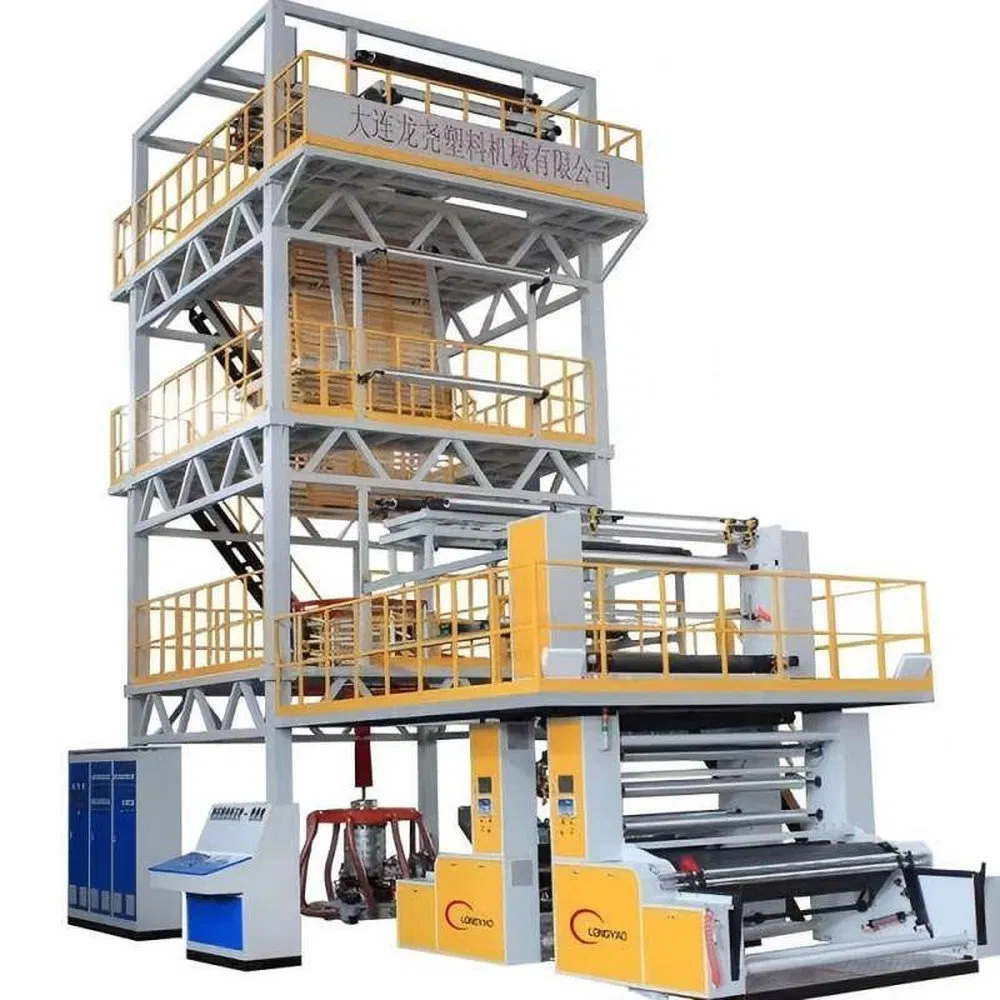

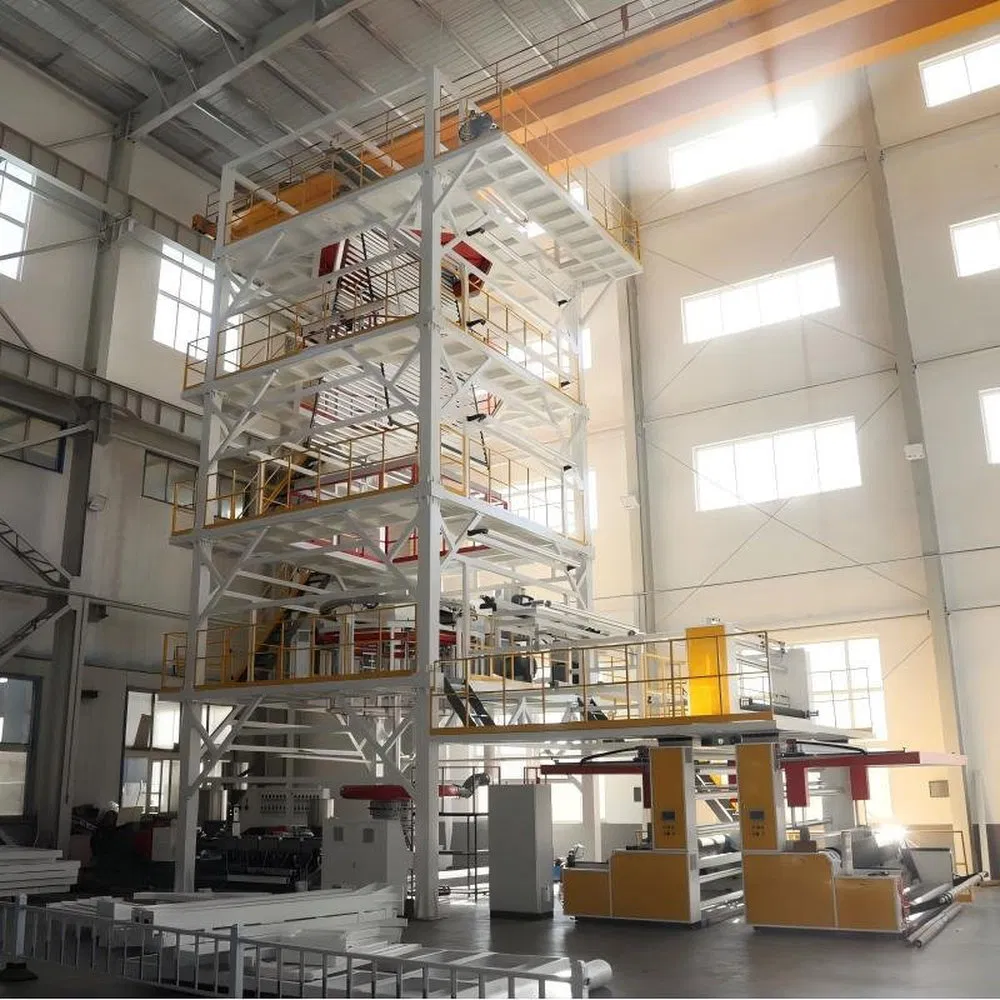

ABC Three-Layer Co-Extrusion Blown Film Machine is a high-performance plastic film forming equipment, featuring an A/B/C three-layer co-extrusion structure. Equipped with three extruders and a three-layer co-extrusion die head, each extruder independently feeds material and controls temperature, allowing precise design and control of each layer's material and function. The melts from all three layers are evenly distributed through optimized flow channels and simultaneously extruded into a film bubble.

Material Flexibility & Functional Advantages

The ABC structure allows flexible combinations of different resins and functional masterbatches, enhancing film strength, toughness, barrier properties, heat-sealability, and surface quality. Combined with PLC intelligent control and gravimetric/GSM precision systems, the machine effectively controls film thickness and raw material usage, compatible with LDPE, HDPE, LLDPE, and various modified materials.

Winder	Manual, Auto, Single Winder, Back To Back Winder, Up And Down Winder
Certification	CE, ISO. Machines produce FDA compliant film when appropriate raw materials are used.
Delivery Time	From 20 Days To 4 Months depending on the specific equipment model.
Payment Terms	T/T, L/C, D/P, Etc.

💡 Application

PET Food Packaging Bag

Snack Packaging Bag

Shrink Film

Cotton Bale Wrap Film

Inflatable Air Cushion Film

FFS Heavy-Duty Bags

🛠️ Key Components & Details

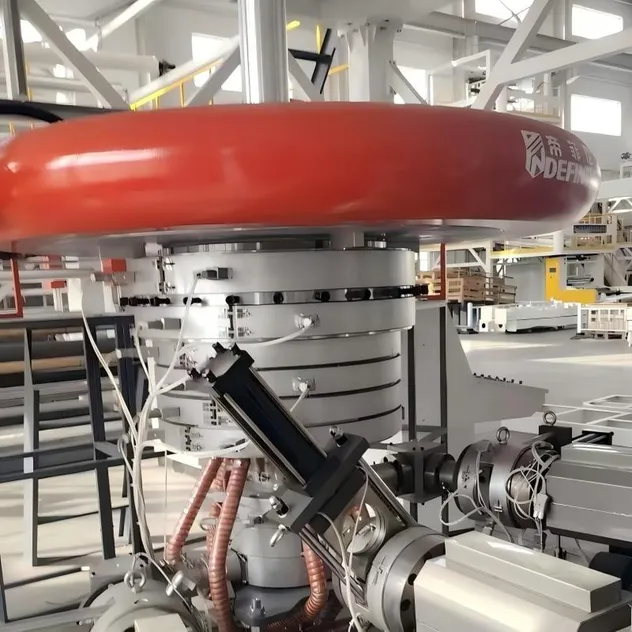

Die-Head: Optimized flow channels for uniform thickness. Mirror-polished and hard-chrome plated for wear resistance.

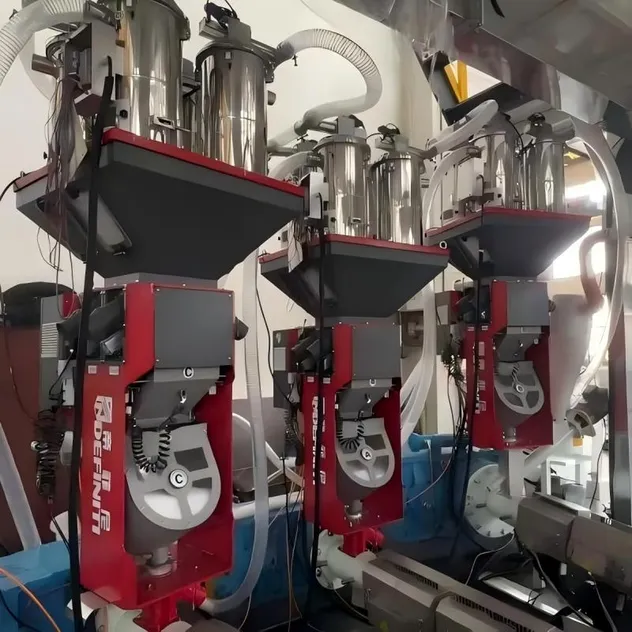

Gravimetric Dosing System: Ensures accurate proportioning of additives and masterbatch for stable formulation control.

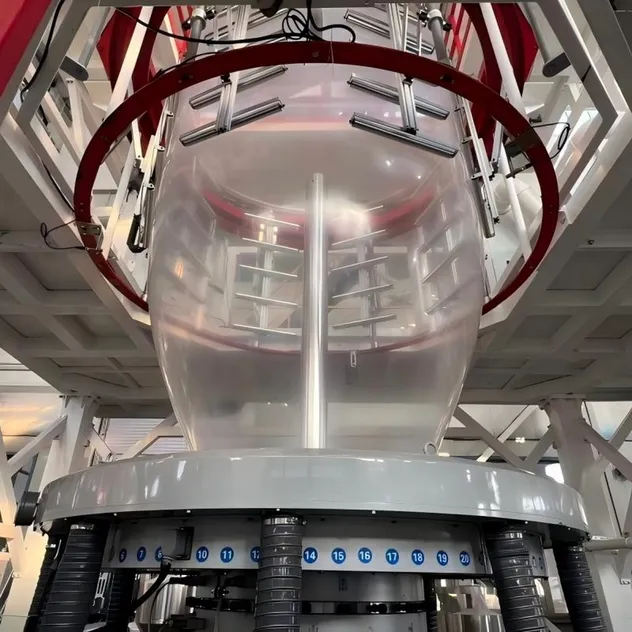

IBC & Auto Air Ring: Provides rapid internal cooling to increase output by 10%-30% and improves bubble stability.

📊 Specification

Model	55-65-55-1600mm	65-75-65-2000mm	75-80-75-2400mm	80-90-80-3000mm
Film Width	1000-1400mm	1300-1800mm	1800-2400mm	2000-2800mm
Main Motor	30kw/45kw/30kw	45kw/55kw/45kw	55kw/75kw/55kw	75kw/90kw/75kw
Die Diameter	Φ250-Φ350mm	Φ350-Φ450mm	Φ500-Φ600mm	Φ550-Φ700mm
Output	120-180kg	200-300kg	240-350kg	350-500kg
Weight	18T	26T	28T	30T

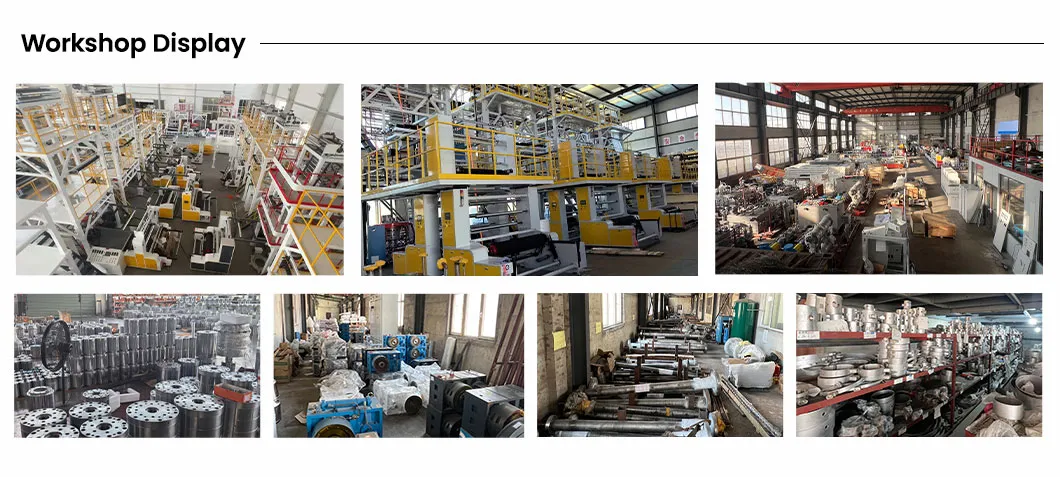

🏭 Manufacturing Capability

With 30 years of industry experience, we specialize in the design, R&D, and production of advanced extrusion systems for both packaging and industrial films.

Main product lines include:

3/5/7-layer co-extrusion blown film machine
ABA/AB blown film machine
Single-layer film blowing machine
Single-screw double die-head film blowing machines

Equipment is suitable for both virgin and recycled materials, including LDPE, LLDPE, mLLDPE, HDPE, PP, PA, PVA, EVOH, Biodegradable (PLA, PBAT), and more.

❓ FAQ

Q1: What is the output capacity of your blown film machines?

A: The output depends on factors such as film width, thickness, and die size. Overall, our machines typically deliver about 15% higher output compared to industry standards.

Q2: How do you ensure the quality of your machines?

A: All key components are manufactured in-house. We operate a complete machining center equipped with CNC machines and precision processing equipment to ensure consistent performance.

Q3: Do you provide on-site installation and training?

A: Yes. We can dispatch engineers overseas for installation, commissioning, and operator training.

Q4: Can you match our local voltage and electrical standards?

A: Yes. We can build the machine according to your required voltage (e.g., 220V/380V/415V) and electrical standards (CE, UL, etc.).

Q5: Do you offer customization?

A: Yes. We can customize the machine width, output capacity, screw design, die size, and auxiliary equipment according to your specific film applications.

Q6: What is the warranty period for your machines?

A: We offer a 12-month warranty from the date of installation. Lifetime technical support is provided.
