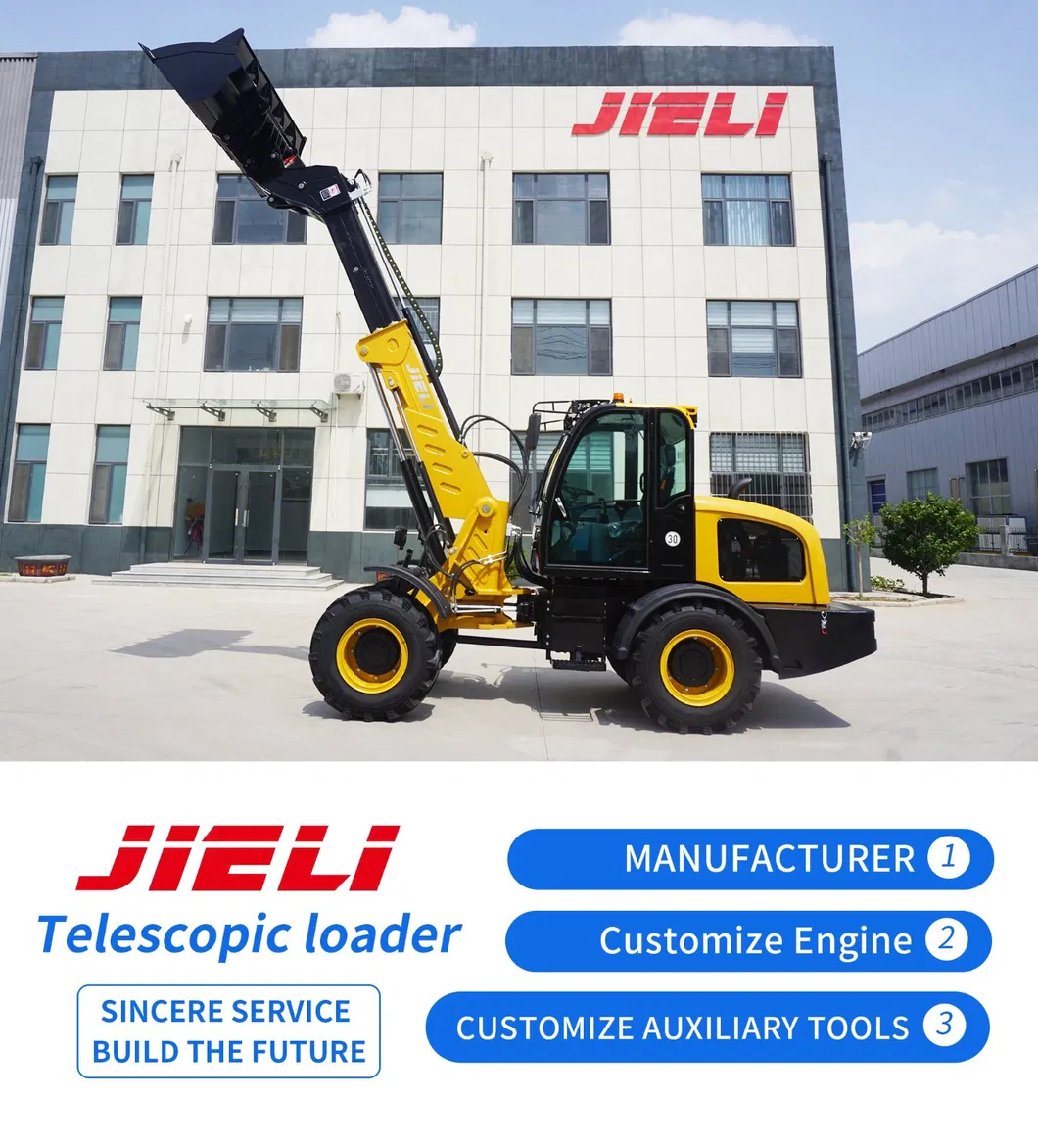

High-Performance 2.5t 5m Front Wheel Hydraulic Compact Small Telescopic Loader

1 / 5

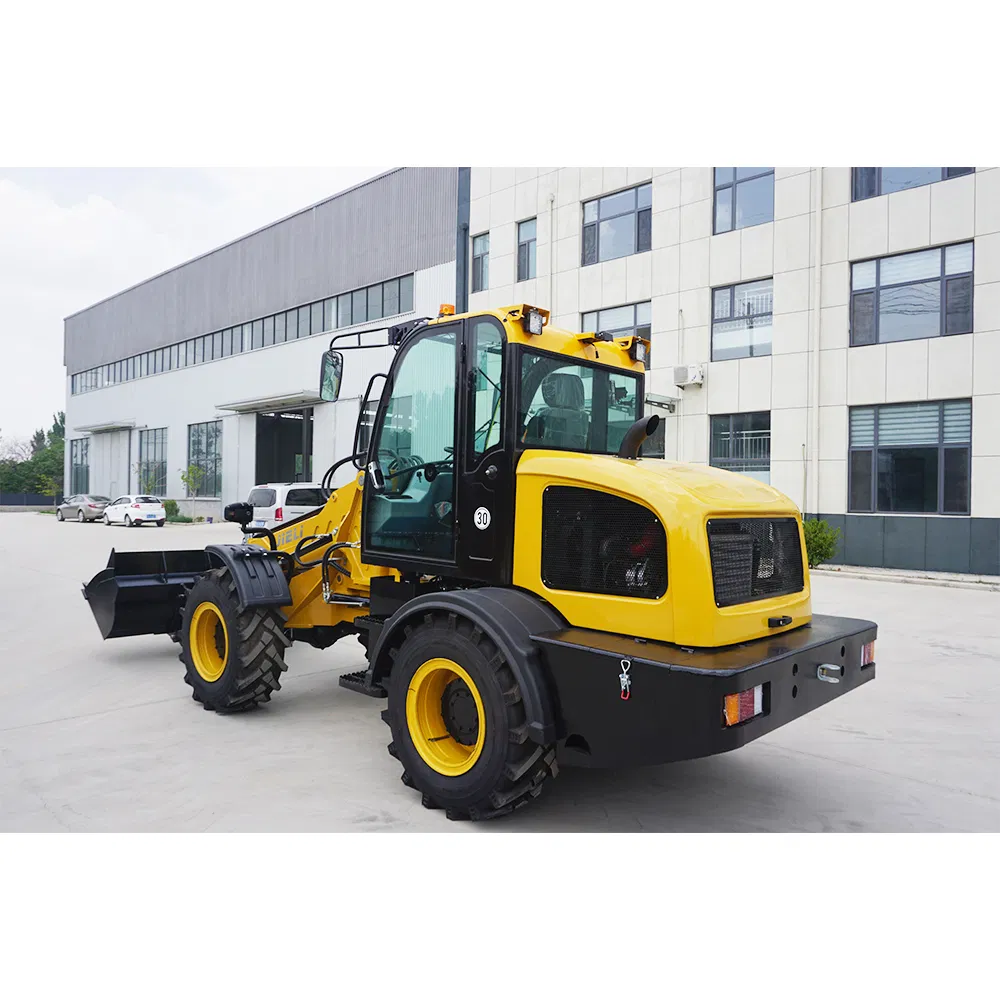

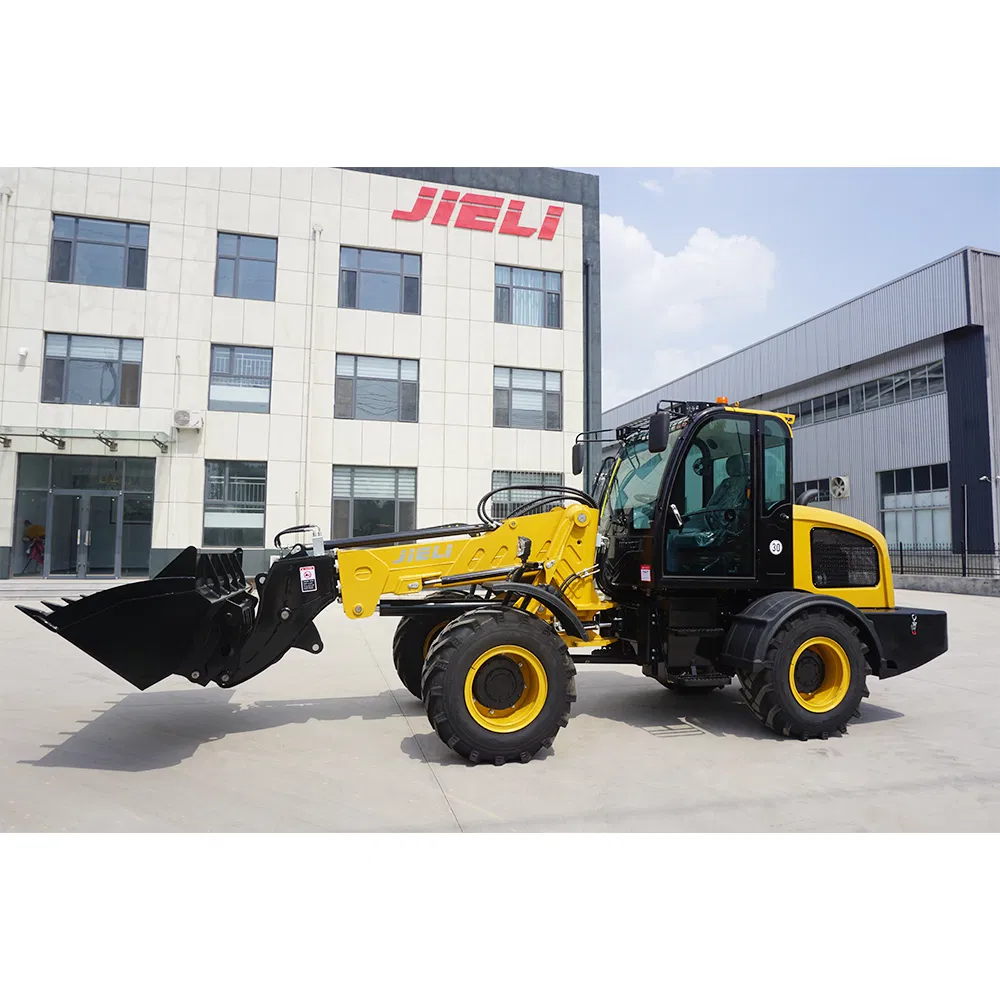

High-Performance 2.5t 5m Front Wheel Hydraulic Compact Small Telescopic Loader

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

High-Performance 2.5t 5m Front Wheel Hydraulic Compact Small Telescopic Loader

📋 Basic Info & Specifications

Model NO.	JL25T	Certification	TUV, ISO, RoHS, CE
Rated Load	1-3t (2500 Kg)	Condition	New
Transmission	Hydraulic	Walking Mode	Wheeled
Max Lift Height	5000 mm	Overall Weight	6700 Kg
Overall Dimension	670020702680mm	Steering Angle	35°

⚙ Performance Parameters

Rated Bucket Capacity	1.1 CBM
Maximum Tractive Force	45 kN
Maximum Breakout Force	35 kN
Maximum Grade Ability	35°
Maximum Dump Height	4350 mm / 3180 mm
Minimum Turning Radius	4400 mm

🚀 Engine & Transmission System

Engine Models	YANMA(EURO5), YUNNEI(EURO5), CUMMINS(EPA4), XINCHAI A498BT1(EURO3), FPT(EPA T4F), KOHLER(EPA), YUCHAI
Rated Power	65 kW
Rated Speed	2400 r/min
Gearbox Mode	Power shift normally engaged straight gear
Maximum Speed	30km/h - 40km/h

✔ Product Advantages

Compact structure, flexible operation, stable lifting, automatic leveling, and high net load index for accurate transport.

Equipped with high-performance engines, providing low noise, low emissions, and large torque reserve.

Full hydraulic braking system ensures stable and reliable braking for maximum driving safety.

Torque limit system ensures safety even in extreme working conditions.

Energy-saving design with low vibration and environmental protection.

Smaller front suspension design extends the service life of front tires and drive axles.

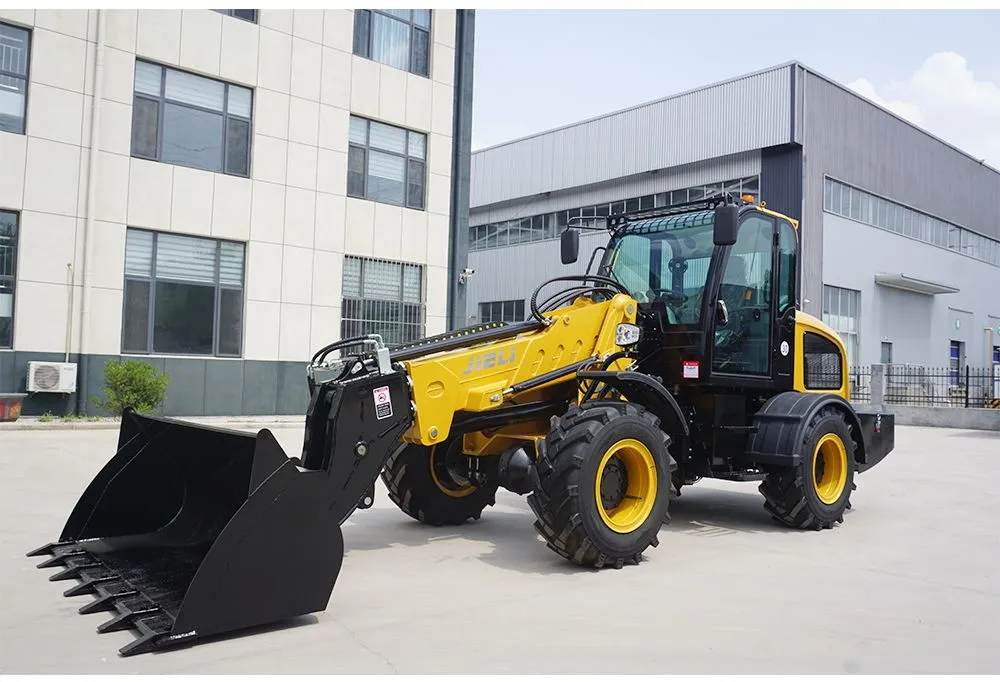

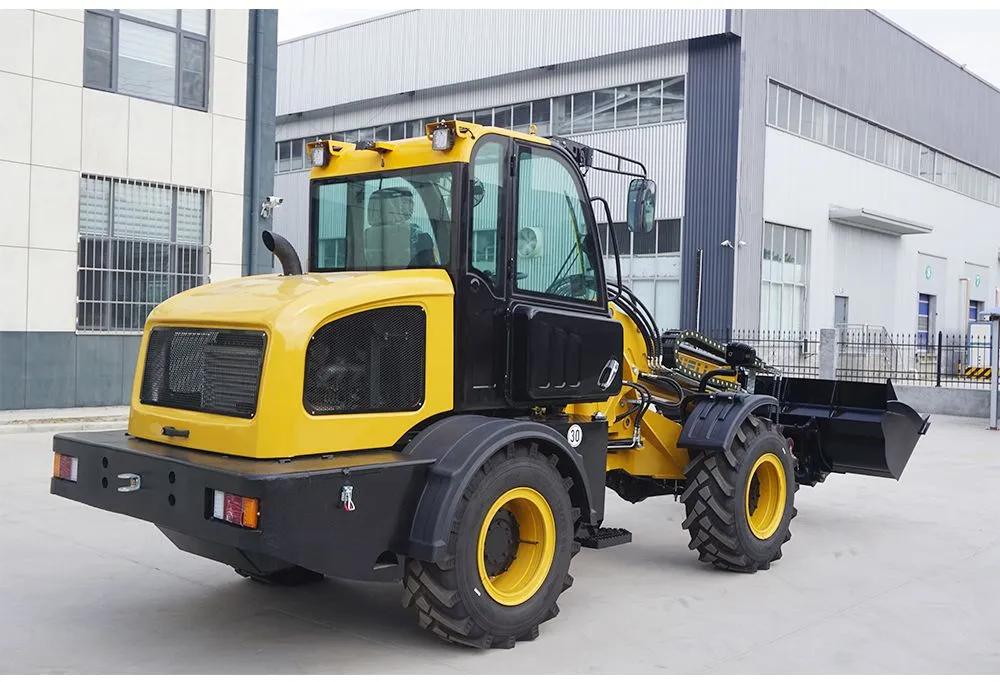

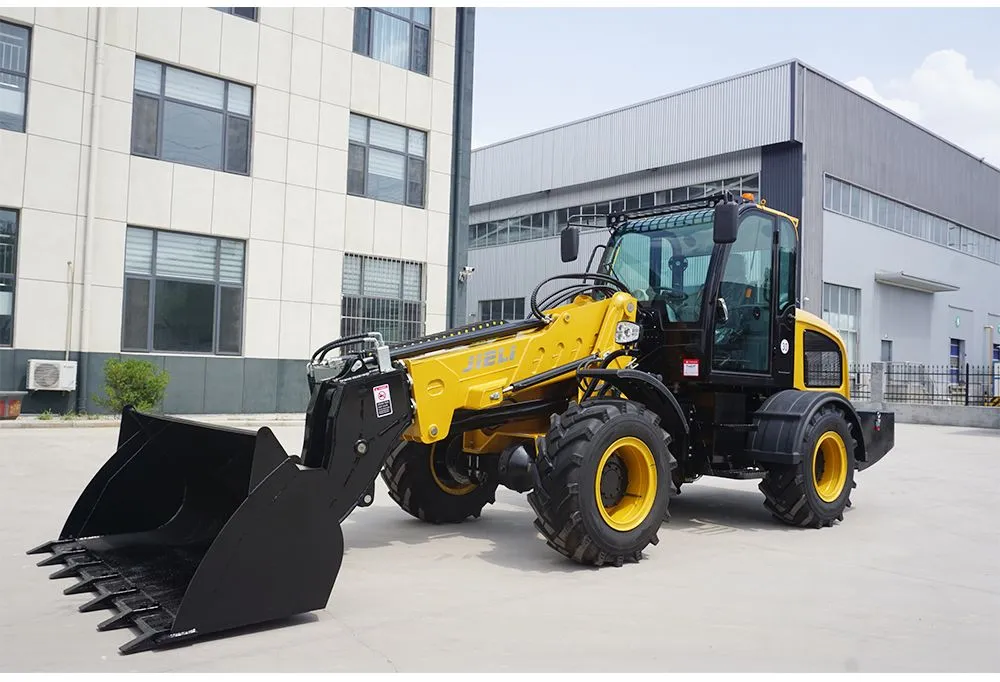

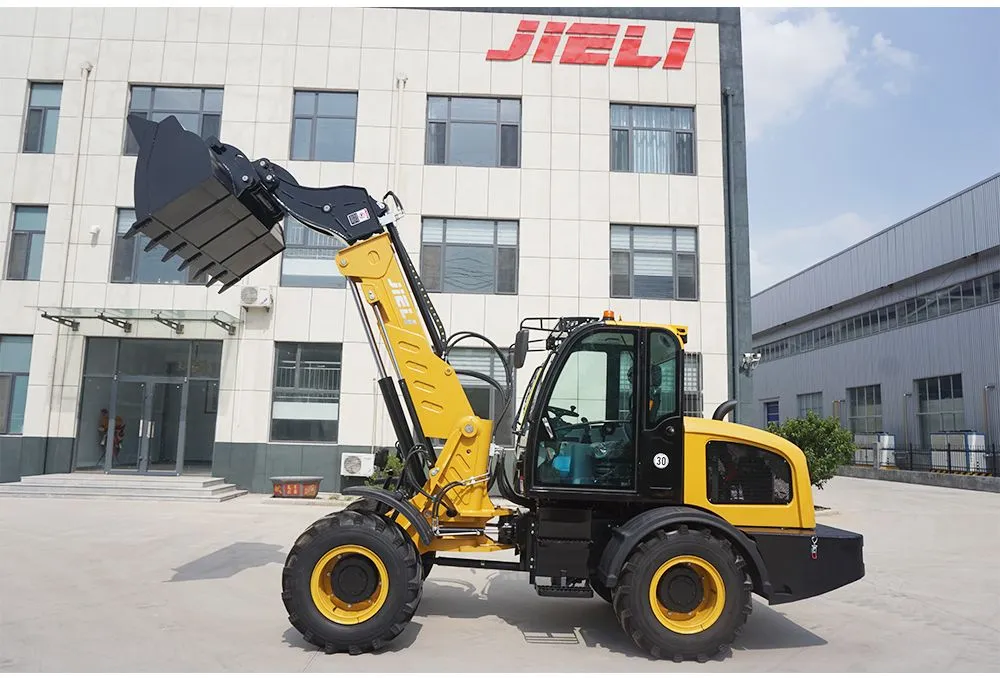

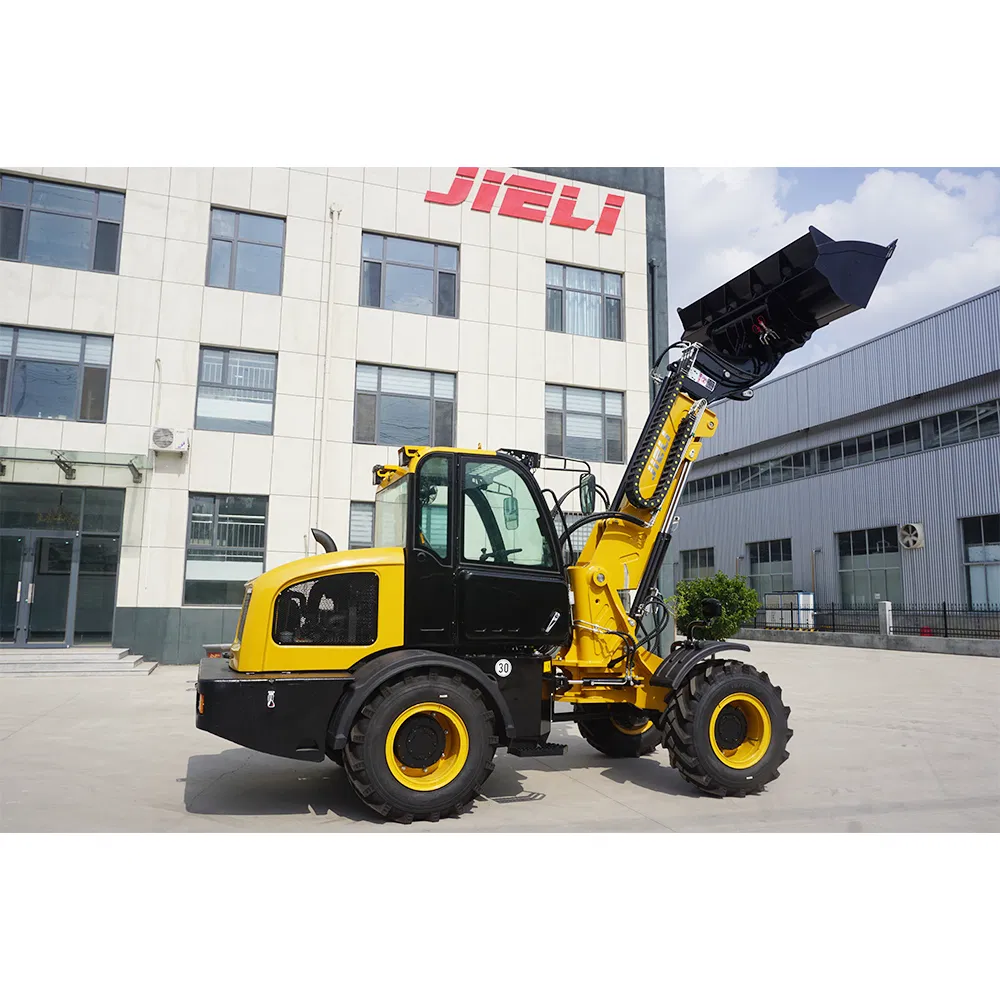

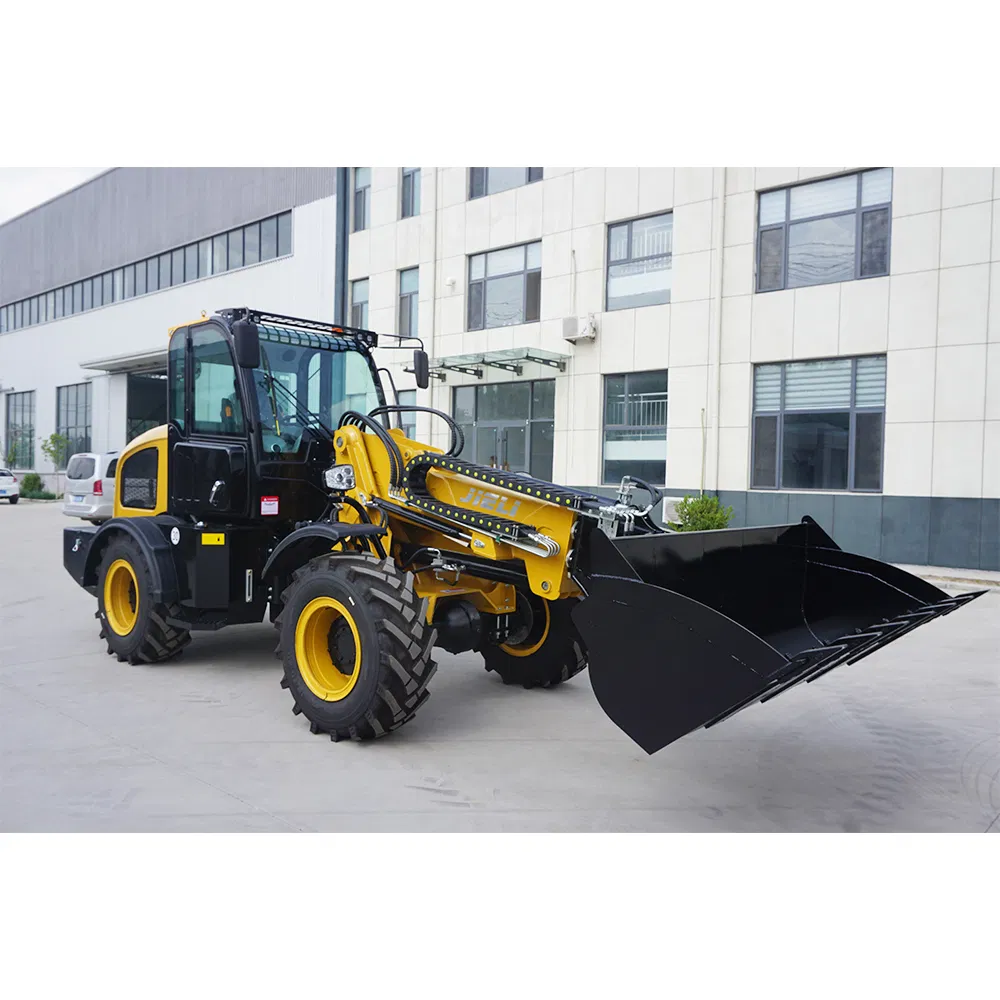

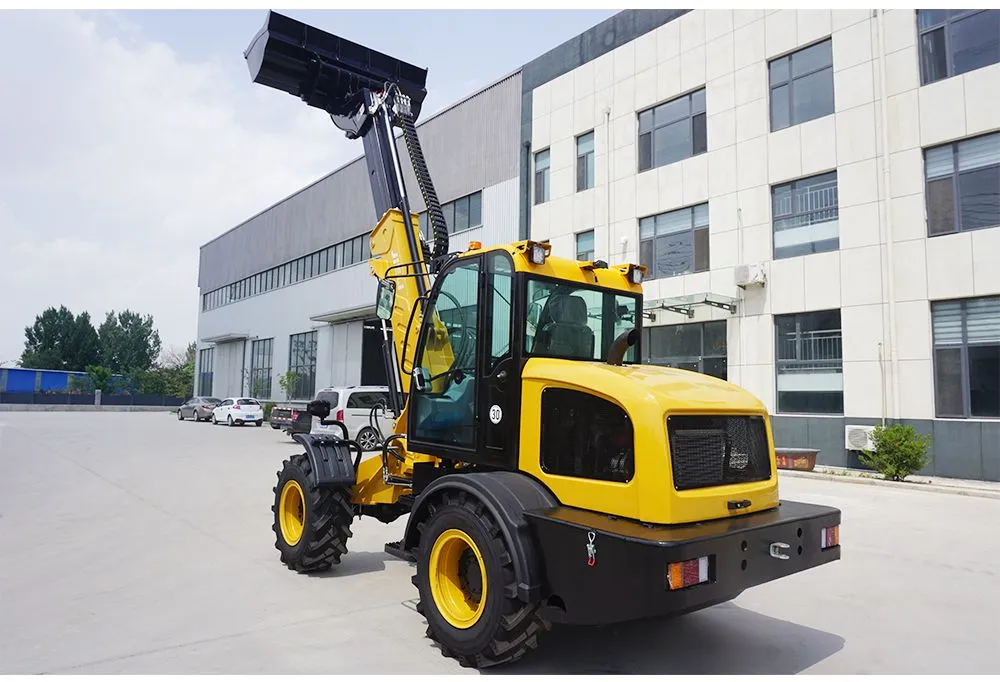

📷 Product Gallery

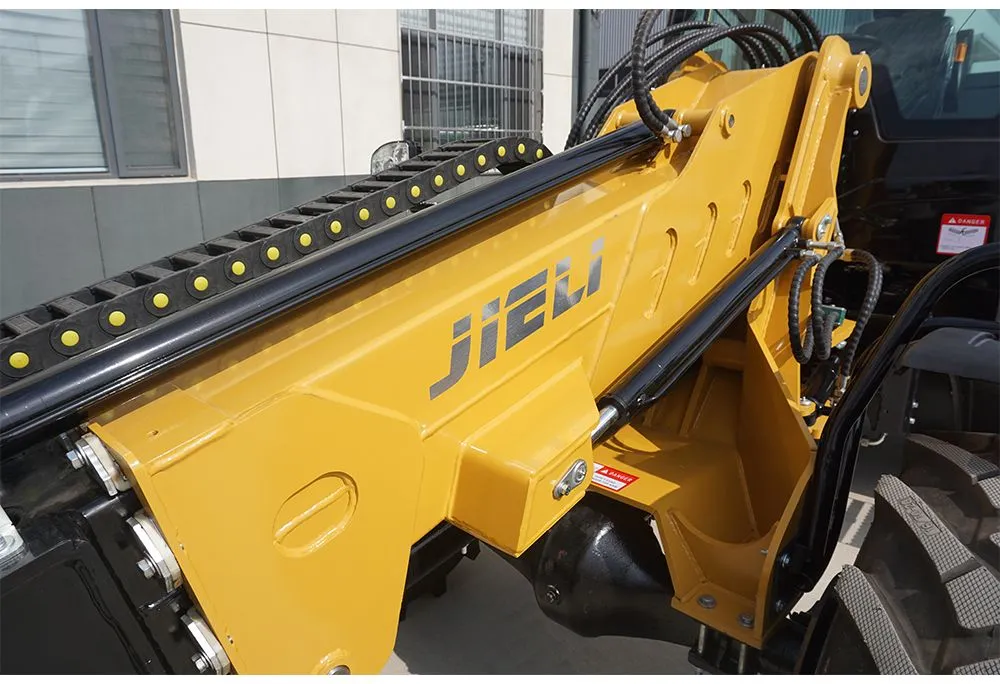

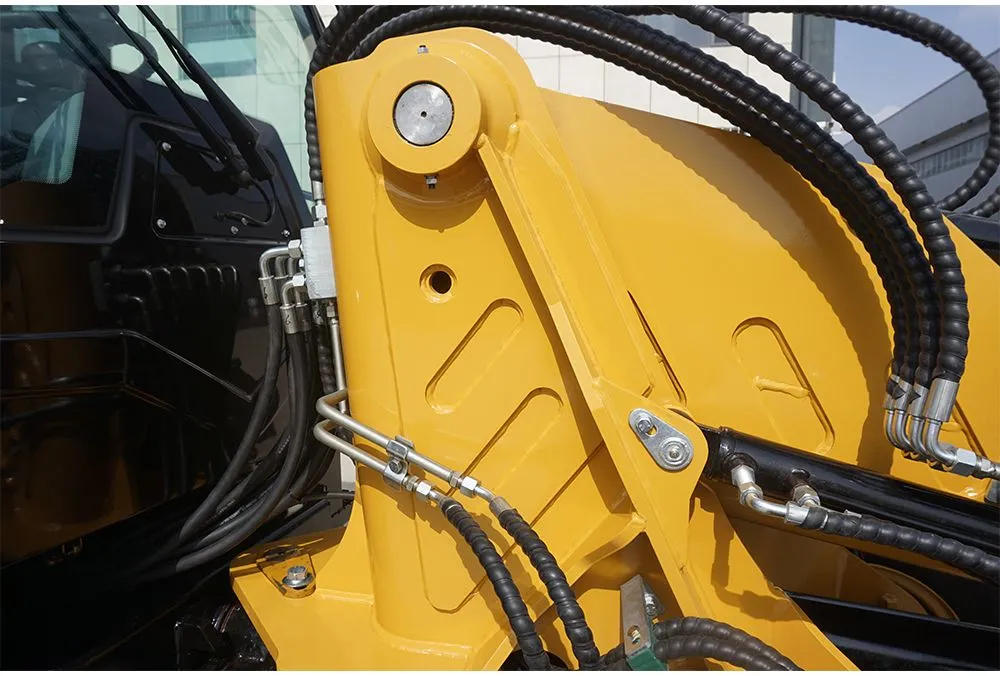

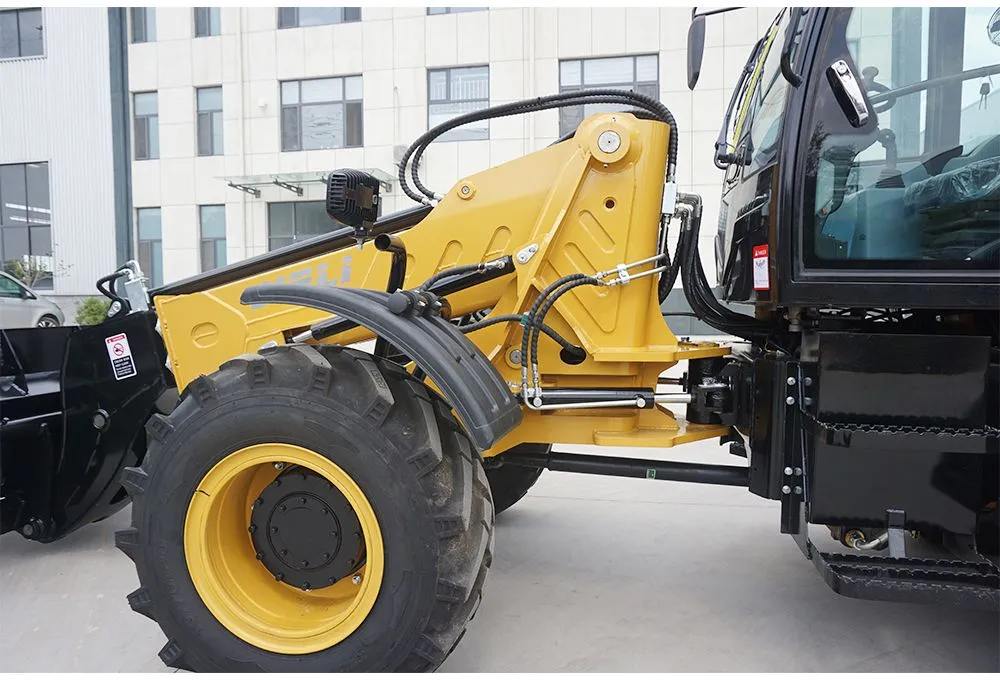

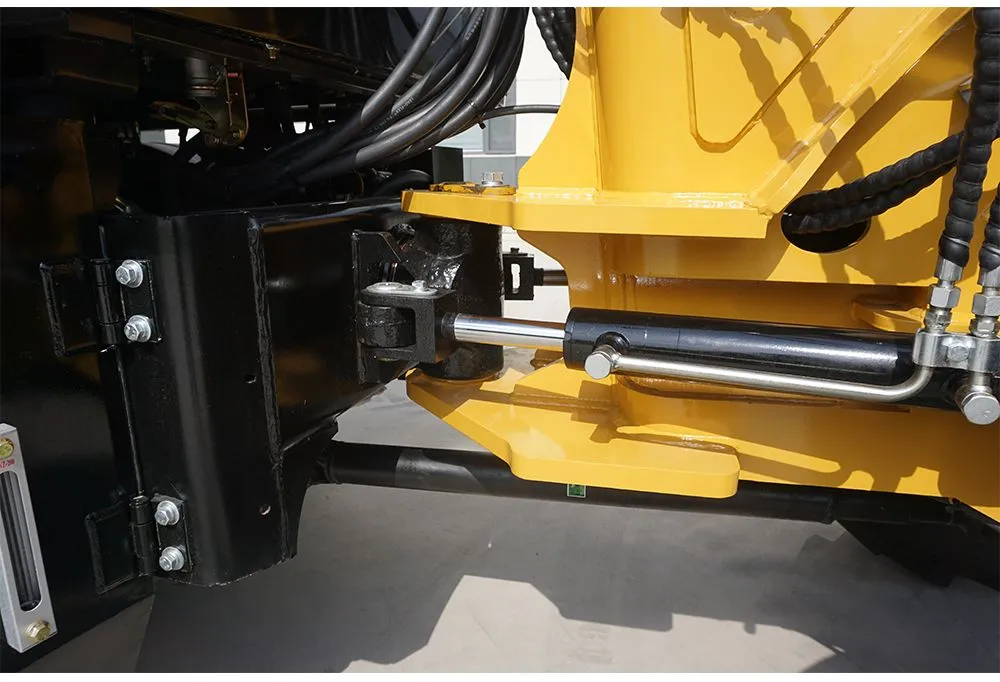

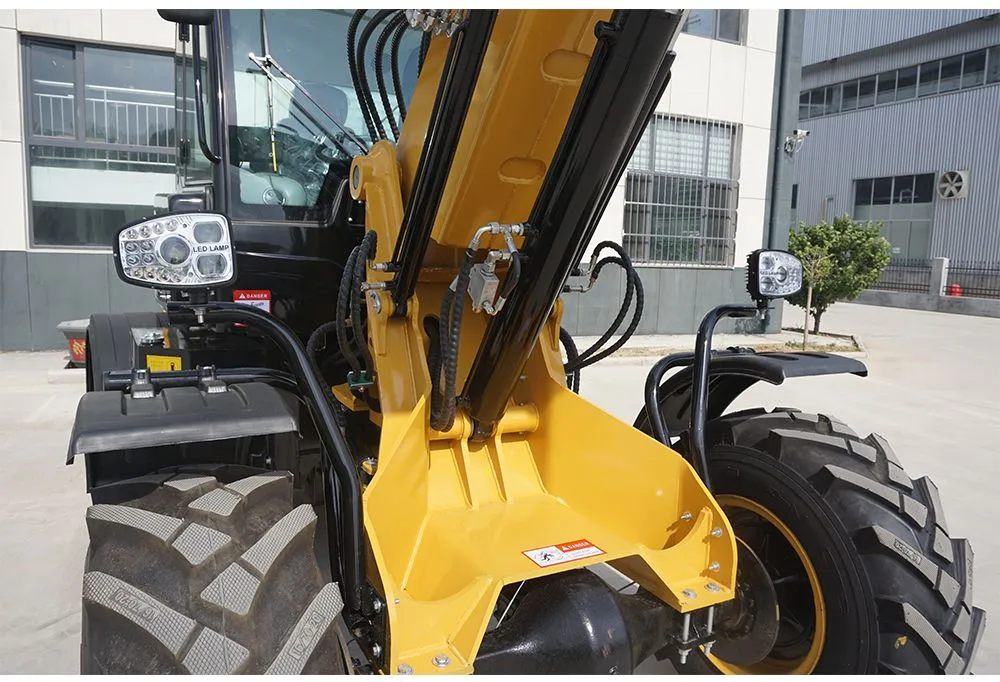

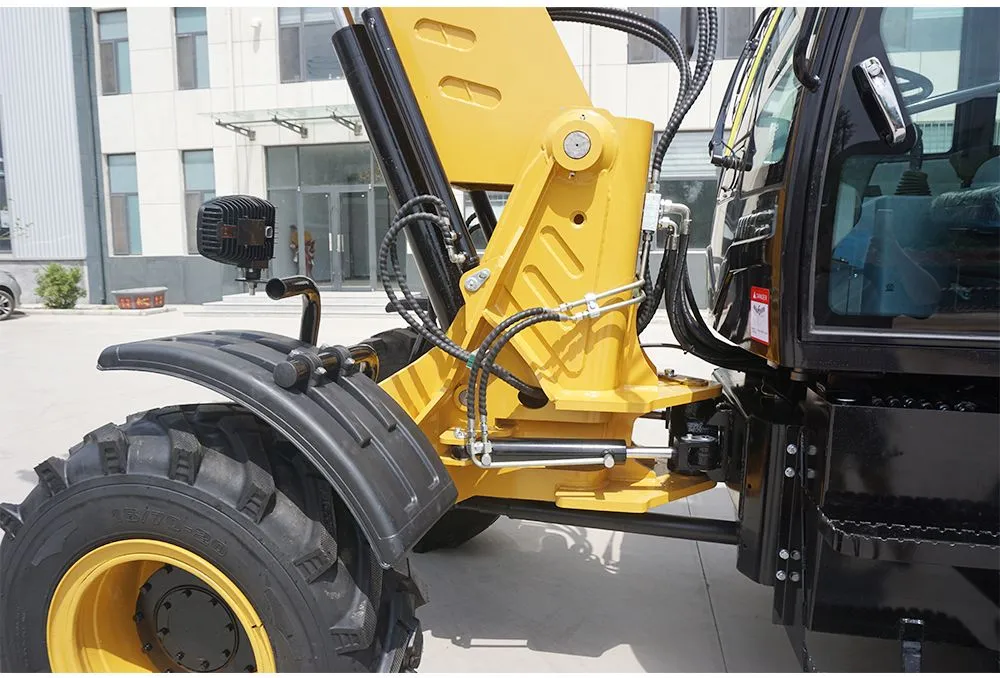

🔍 Detail Showcase

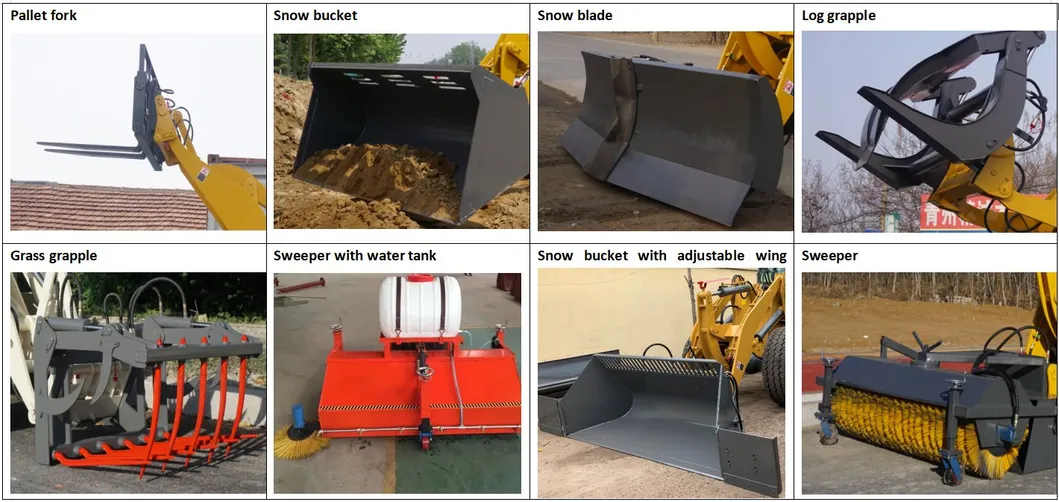

🛠 Optional Accessories

Optional Equipment	Optional Attachment
Tyre Chain / Snow Tyre	4-in-1 Bucket / Grapple Bucket
Air Condition	Pallet Fork / Hydraulic Adjustable Pallet Fork
E4 LED Light	Grapple Grass/Wood Forks
	Snow Bucket / Hydraulic Snow Blade
	Sweeper / Snow Blower
	Twist Drill / Breaker / Sand Spreader

🌍 Global Presence

Frequently Asked Questions

What is the rated loading capacity of this telescopic loader?

The rated loading capacity is 2500 kg, designed for medium-sized lifting and loading tasks.

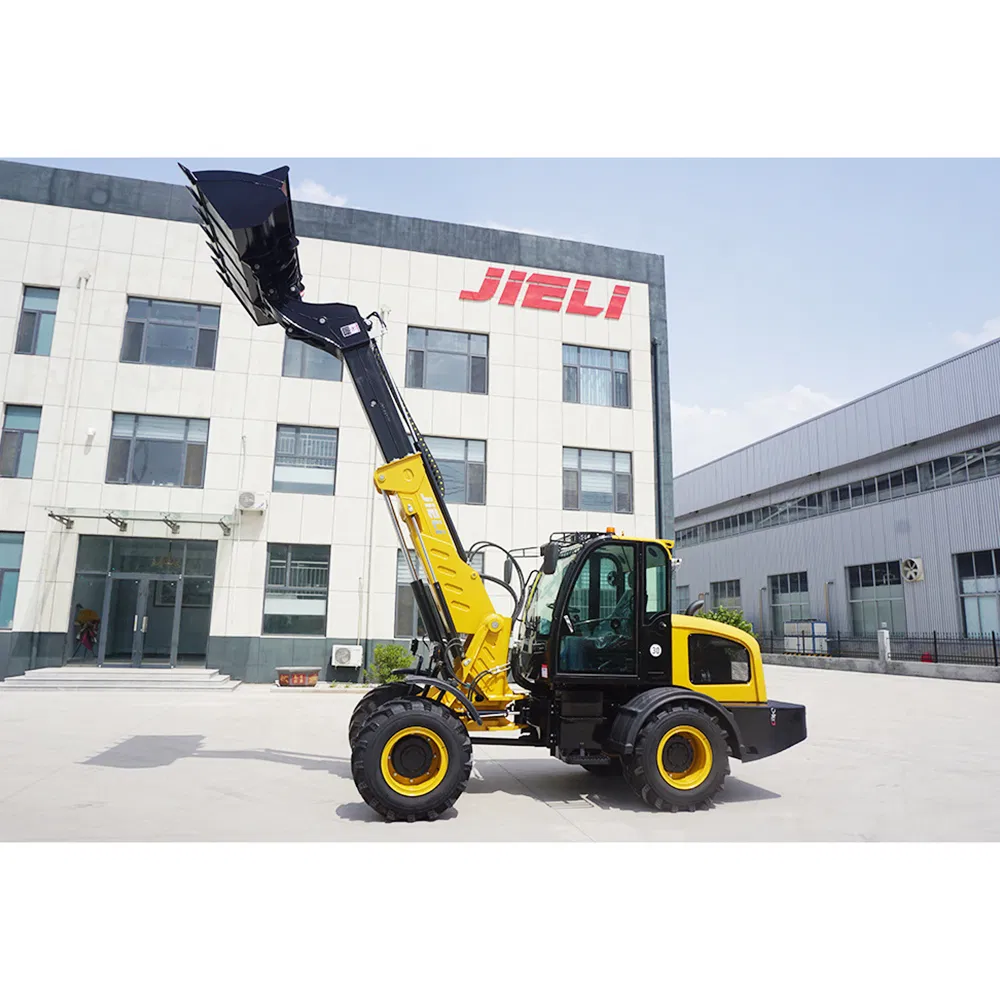

What is the maximum lift height for the JL25T model?

This model features a high-performance telescopic boom that can reach a maximum lift height of 5000 mm.

Which engine options are available for this loader?

We offer multiple engine configurations including Cummins (EPA4), Yanmar (Euro 5), Yunnei (Euro 5), and other options like Kohler and Yuchai to meet different emission standards.

What kind of braking system is installed?

The loader is equipped with an air-assist hydraulic disc brake for the service brake and a manual disc brake for parking, ensuring reliable stopping power.

Can this loader handle different terrains?

Yes, with its 4-wheel drive mode, 35° maximum steering angle, and optional snow tyres or tyre chains, it is highly capable in various working environments.

What attachments can be used with this machine?

A wide variety of attachments are supported, including 4-in-1 buckets, pallet forks, grapple forks, snow blades, sweepers, and breakers, making it a highly versatile tool.
