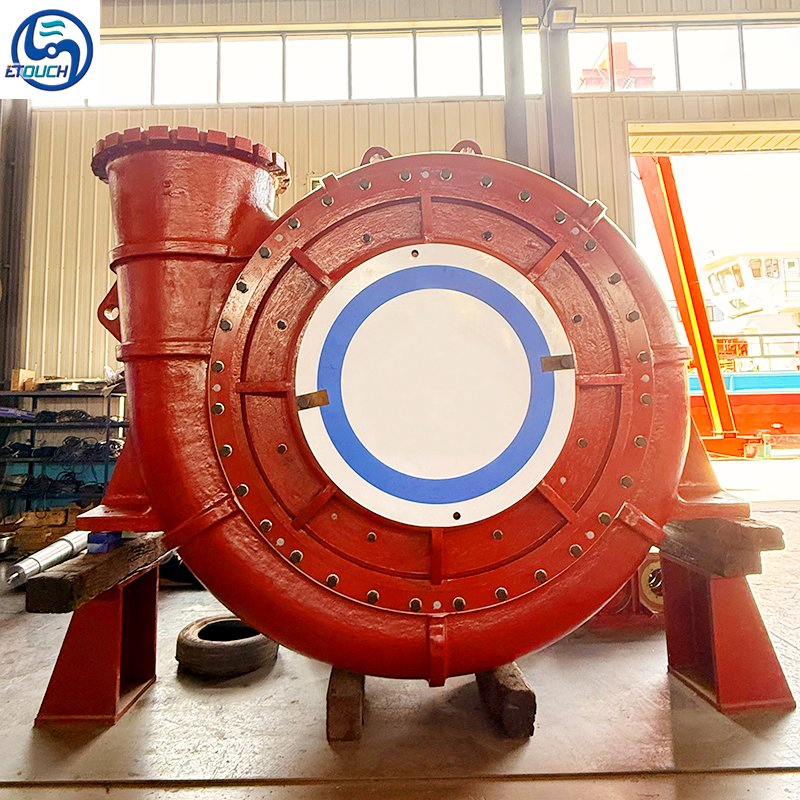

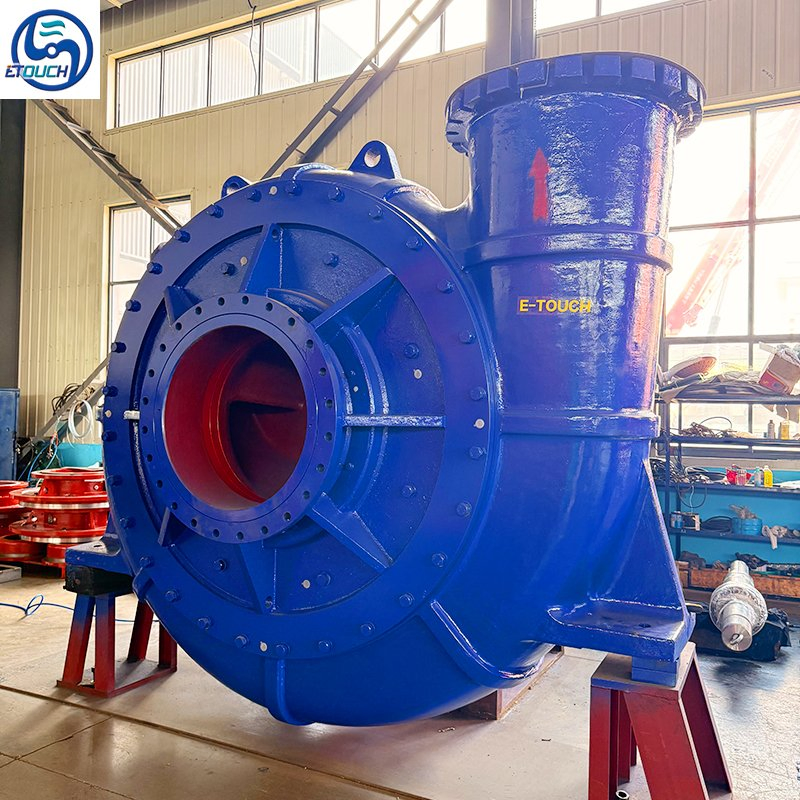

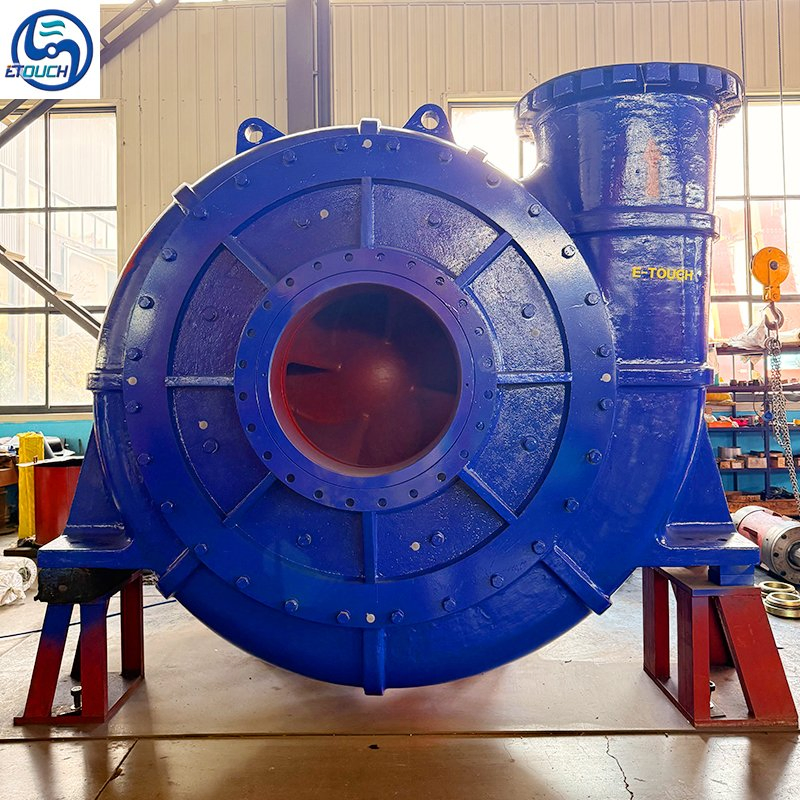

Etouch High Efficiency Sand Mud Dredge Pump with Good Npsh Performance and Large Dredging Capacity

Customization:	Available
After-sales Service:	on Line Service
Warranty:	12 Months

Basic Information

Model NO.	DT450WN	Max. Head	30-50m
Driving Type	Motor	Impeller Number	Single-Stage Pump
Working Pressure	High Pressure Pump	Influent Type	Single Suction Pump
Pump Shaft Position	Horizontal Pump	Solid Sand Capacity	600-700m3/H
Water Flow	4200m3/H	Max Particle Dia.	240mm

Product Description

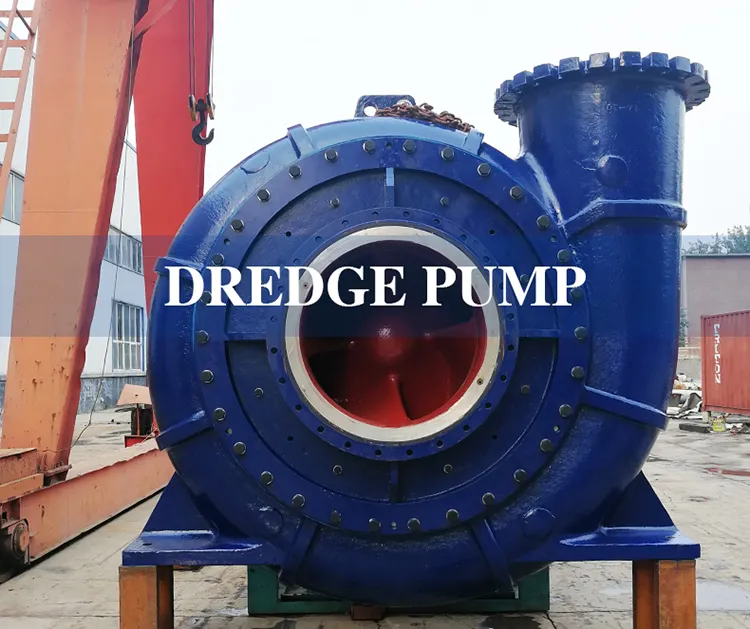

What is a Dredge Pump?
A dredge pump is a horizontal centrifugal pump designed to handle abrasive granular materials and solids of limited size in suspension. It is the heartbeat of a cutter suction dredge, enabling the transport of slurry.

How do dredge pumps work?
The pump contains a casing and an impeller. The impeller, attached to the drive motor via a gearbox and shaft, creates a centrifugal suction force. This vacuum absorbs the slurry through the suction pipe and transports it through the discharge pipeline.

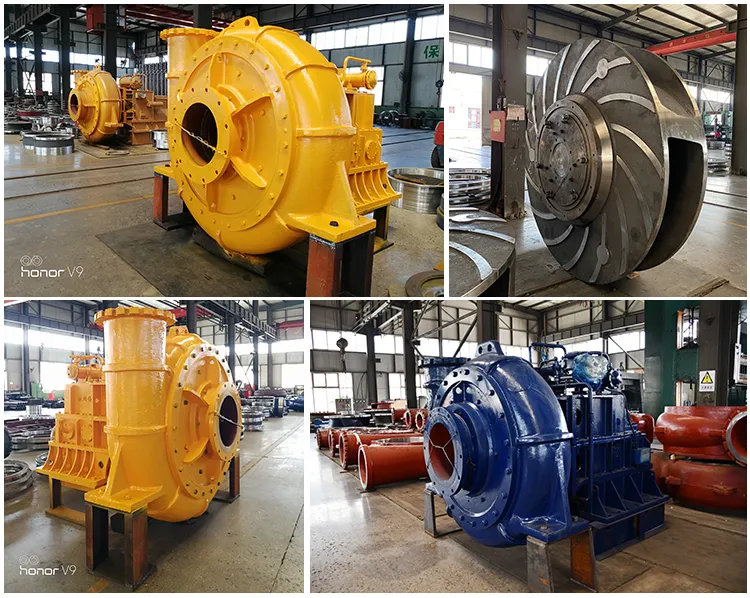

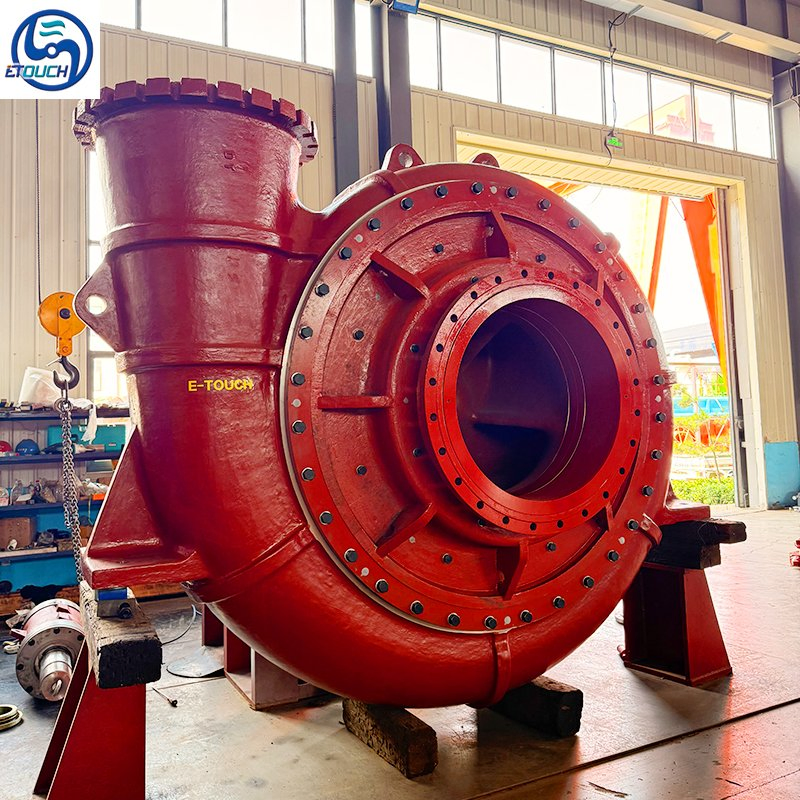

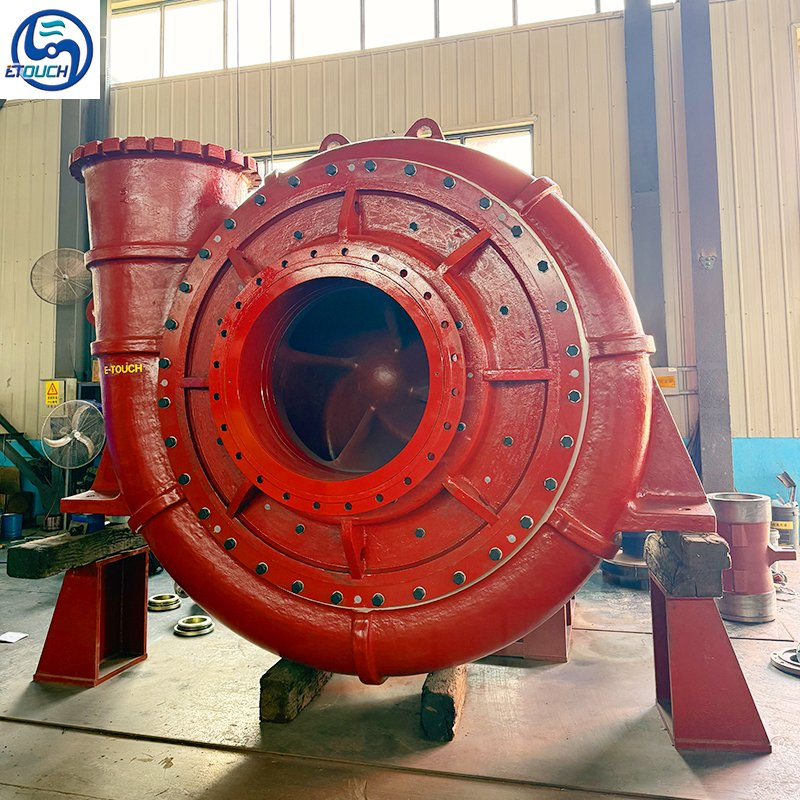

Detailed Photos

The dredging pump series is designed using advanced CAD software, optimized for river, lake, and sea dredging requirements. These pumps feature easy installation, long service life, high efficiency, and reliable bearing linings.

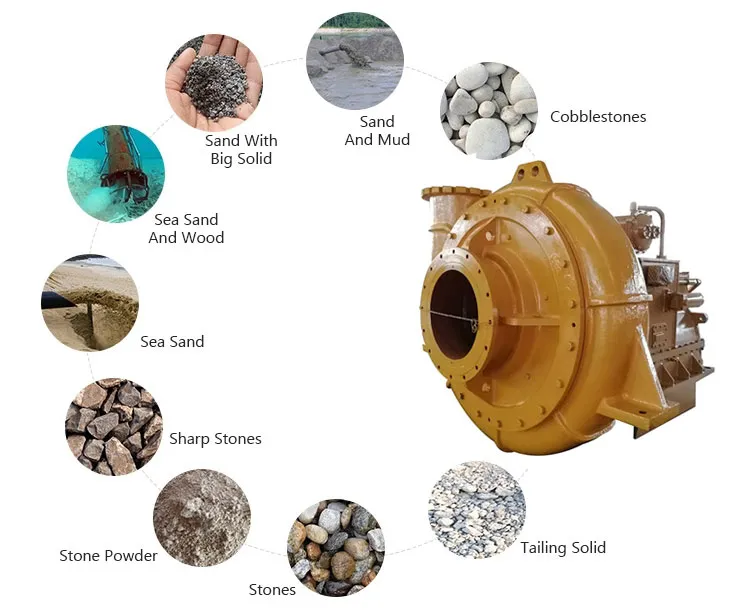

The wet parts are constructed from high chromium alloy or abrasive rubber, making them suitable for liquids containing solids, acids, or alkalis.

Product Parameters

Type	Capacity (m3/h)	Head (m)	Speed (r/min)	Efficiency (%)	NPSHr (m)	Inlet Dia (mm)	Outlet Dia (mm)	Max Particle (mm)
200WN	800-1000	50	750-900	65	--	250	200	130
250WN	1000-1500	40-65	550-700	60-73	4.4	350	250	140
300WN	1800-2200	40-65	400-550	72-76	4.4	350/450	300	130
DT350WN	1800-2900	40-61	450-560	78-84	4	450	350	130
400WN	2500-3300	40-62	490-600	73-80	4	500	400	160
450WN	3200-3800	40-67	350-500	70-76	5	600	450	125
DT450WN	3300-4200	42-67	400-505	76-84	4.4	520	450	240
500WN	4500-5500	40-66	350-450	70-75	5.3	650	500	150
